Gigabyte Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Gigabyte
B850
DDR5
mATX
AMD
Normal
AM5
White
3 Years

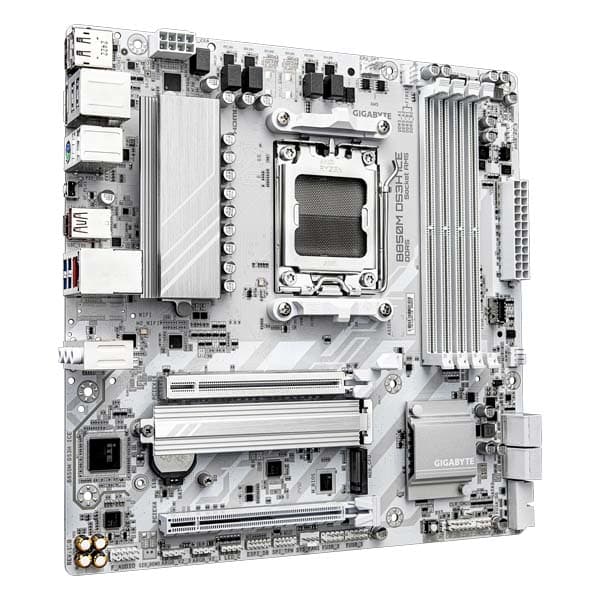

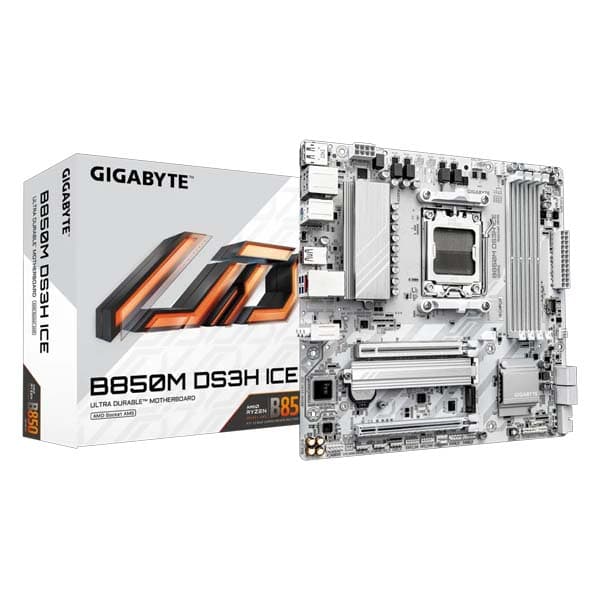

B850M-DS3H-ICE
1 kg
N/A
| Category | Specifications |
|---|---|
| CPU | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 Series / AMD Ryzen™ 8000 Series / AMD Ryzen™ 7000 Series |
| Chipset | AMD B850 |
| Memory Type | DDR5 |
| Memory Speed Support | DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s |
| Memory Slots | 4 x DDR5 DIMM |
| Max Memory Capacity | Up to 256GB (64GB per DIMM) |
| Memory Architecture | Dual Channel |
| Memory Support | Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Memory Profiles | AMD EXPO™ / XMP |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support |
| HDMI Output | 1 x HDMI port, max 4096x2160 @ 60Hz, HDMI 2.1, HDCP 2.3, HDR |
| DisplayPort Output | 2 x DisplayPorts, max 3840x2160 @ 144Hz, DisplayPort 1.4 |
| Multi-Display Support | Up to Triple Display simultaneously |
| Audio Codec | Realtek® Audio CODEC |
| Audio Channels | High Definition Audio, 2 / 4 / 5.1 / 7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Main PCIe Slot | 1 x PCI Express x16 (PCIEX16), integrated in CPU |
| PCIEX16 Support | Ryzen™ 9000/7000 Series: PCIe 5.0 x16 |
| PCIEX16 Support (8000 Phoenix 1) | PCIe 4.0 x8 |
| PCIEX16 Support (8000 Phoenix 2) | PCIe 4.0 x4 |
| Secondary PCIe Slot | 1 x PCI Express x16 (PCIEX4), PCIe 3.0 x4 |
| M.2 Slot 1 | 1 x M2A_CPU, Socket 3, M Key, 25110/22110/2580/2280 |
| M2A_CPU Support | Ryzen™ 9000/7000: PCIe 5.0 x4/x2 |
| M2A_CPU Support (8000) | Phoenix 1 / Phoenix 2: PCIe 4.0 x4/x2 |
| M.2 Slot 2 | 1 x M2B_CPU, Socket 3, M Key, 22110/2280 |
| M2B_CPU Support | Ryzen™ 9000/7000: PCIe 4.0 x4/x2 |
| M2B_CPU Support (8000 Phoenix 1) | PCIe 4.0 x4/x2 |
| M2B_CPU Support (8000 Phoenix 2) | PCIe 4.0 x2 |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID NVMe | RAID 0 / 1 / 5 / 10 |
| RAID SATA | RAID 0 / 1 / 10 |
| Rear USB Type-C | 1 x USB Type-C®, USB 3.2 Gen 2 |
| Rear USB 3.2 Gen 2 Type-A | 1 x Type-A (red) |
| Rear USB 3.2 Gen 1 | 2 x ports |
| Rear USB 2.0 | 4 x ports |
| Internal USB Type-C Header | 1 x USB Type-C®, USB 3.2 Gen 2 |
| Internal USB 3.2 Gen 1 Header | 1 x header |
| Internal USB 2.0 Headers | 2 x headers |
| Additional USB via Header | 2 x USB 3.2 Gen 1 ports / 4 x USB 2.0 ports |
| Power Connectors | 1 x 24-pin ATX main power / 1 x 8-pin ATX 12V |
| Cooling Headers | 1 x CPU fan / 1 x CPU fan-water pump / 1 x system fan / 1 x system fan-water pump |
| RGB Headers | 3 x Addressable RGB Gen2 / 1 x RGB LED strip |
| Storage Connectors | 4 x SATA / 2 x M.2 Socket 3 |
| Front Panel Headers | 1 x front panel / 1 x front panel audio |
| TPM Header | 1 x Trusted Platform Module header |
| Buttons / Jumpers | 1 x reset button / 1 x reset jumper / 1 x Clear CMOS jumper |

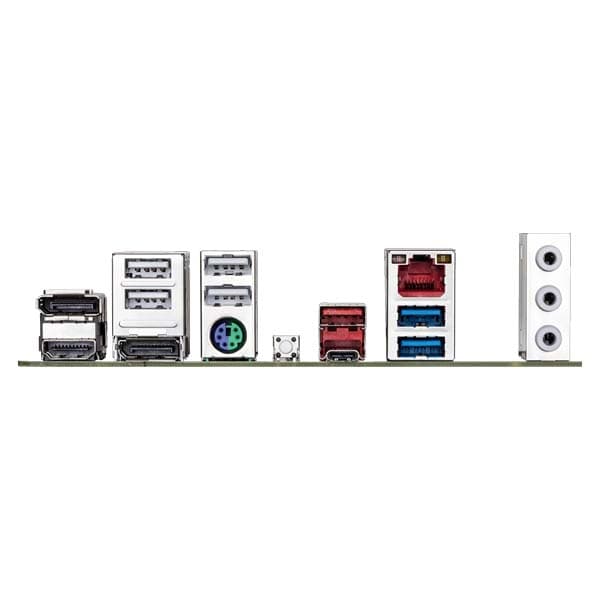

| Back Panel Video Ports | 1 x HDMI / 2 x DisplayPorts |
| Back Panel Legacy Port | 1 x PS/2 keyboard/mouse |
| Back Panel USB Ports | 1 x USB 3.2 Gen 2 Type-A / 1 x USB Type-C / 2 x USB 3.2 Gen 1 / 4 x USB 2.0 |
| Back Panel Network | 1 x RJ-45 |
| Back Panel Audio | 3 x audio jacks |
| Back Panel Utility | 1 x Q-Flash Plus button |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage detection / Temperature detection / Fan speed detection / Water cooling flow rate detection / Fan fail warning / Fan speed control |
| BIOS | 1 x 256 Mbit flash / AMI UEFI BIOS |
| BIOS Standards | PnP 1.0a / DMI 2.7 / WfM 2.0 / SM BIOS 2.7 / ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) / Q-Flash / Q-Flash Plus / Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) / LAN bandwidth management software |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | Micro ATX |
| Dimensions | 24.4 cm x 24.4 cm |
