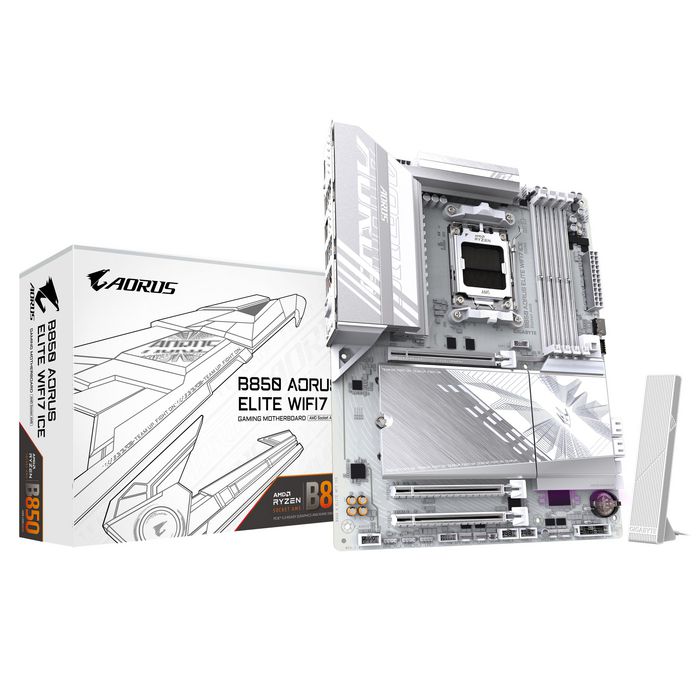

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Twin 14+2+2 Phases Digital VRM with DrMOS
Dual Channel DDR5：4*DIMMs
PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch Plus
M.2 Gen5 with EZ-Latch Plus, Fully Covered MOSFET Heatsinks
Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
2.5GbE LAN, Q-Flash Plus
Gigabyte
B850
4719331866099
DDR5
Gigabyte Aorus
ATX
AM5
White
B850-A-ELITE-WF7-ICE
1 kg
N/A
| CPU | AMD Socket AM5, supports Ryzen™ 9000/8000/7000 Series Processors |
| Chipset | AMD B850 |
| Memory | DDR5 8200(O.C) to 4800 MT/s, 4x DIMM, max 256GB, dual-channel, AMD EXPO & XMP support |
| Onboard Graphics | AMD Radeon™ Graphics (varies by CPU) |
| Display Outputs | 1x DisplayPort (3840x2160@144Hz), 1x Front HDMI (1920x1080@30Hz) |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip |
| Wireless | Realtek® Wi-Fi 7 (RTL8922AE), Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be |
| PCIe Slots | 1x PCIe 5.0 x16 (for Ryzen 9000/7000), 2x PCIe 3.0 x1 |
| Storage | 3x M.2 (PCIe 5.0/4.0, varies by CPU), 4x SATA 6Gb/s, RAID 0/1/5/10 (varies by CPU) |
| USB Ports | 1x USB-C 3.2 Gen 2, 2x USB 3.2 Gen 2 Type-A, multiple USB 3.2 Gen 1 and USB 2.0 ports |
| Internal Connectors | 3x M.2, 4x SATA, 3x RGB headers, multiple fan headers, TPM header |

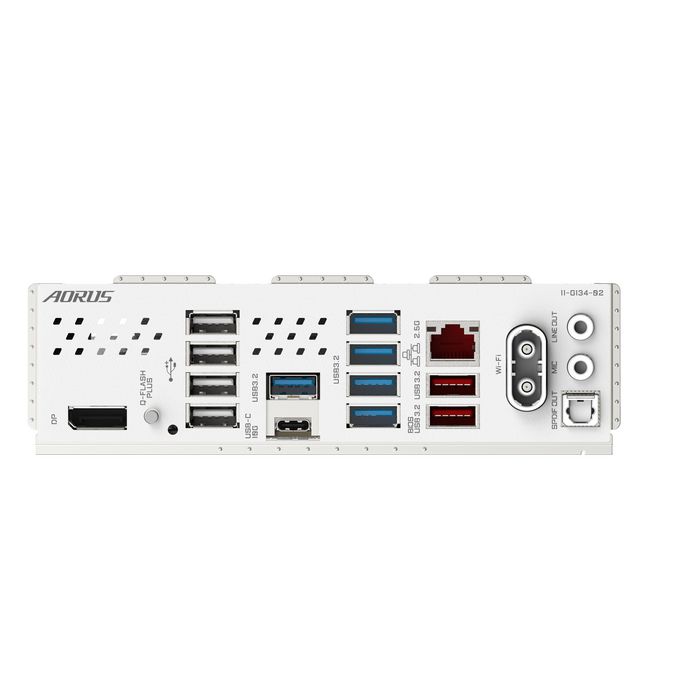

| Back Panel | 1x DisplayPort, 1x USB-C 3.2 Gen 2, 5x USB 3.2 Gen 1, 2x USB 3.2 Gen 2 Type-A, RJ-45, audio jacks, optical S/PDIF, antenna connectors |
| BIOS | 256 Mbit flash, AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN management software |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX (30.5cm x 24.4cm) |
