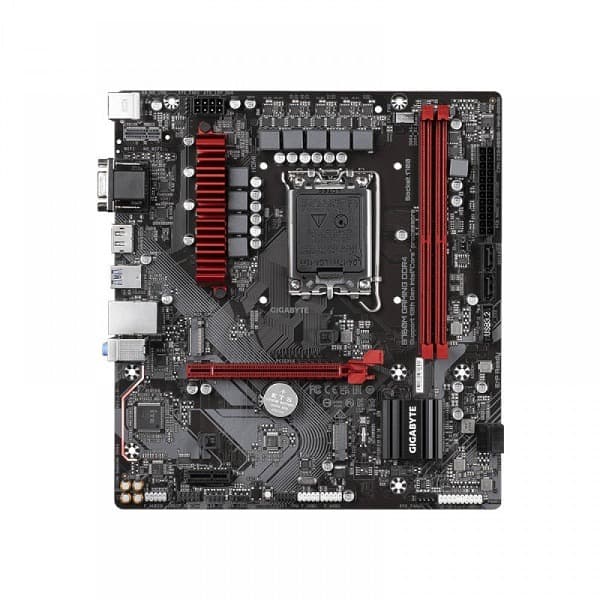

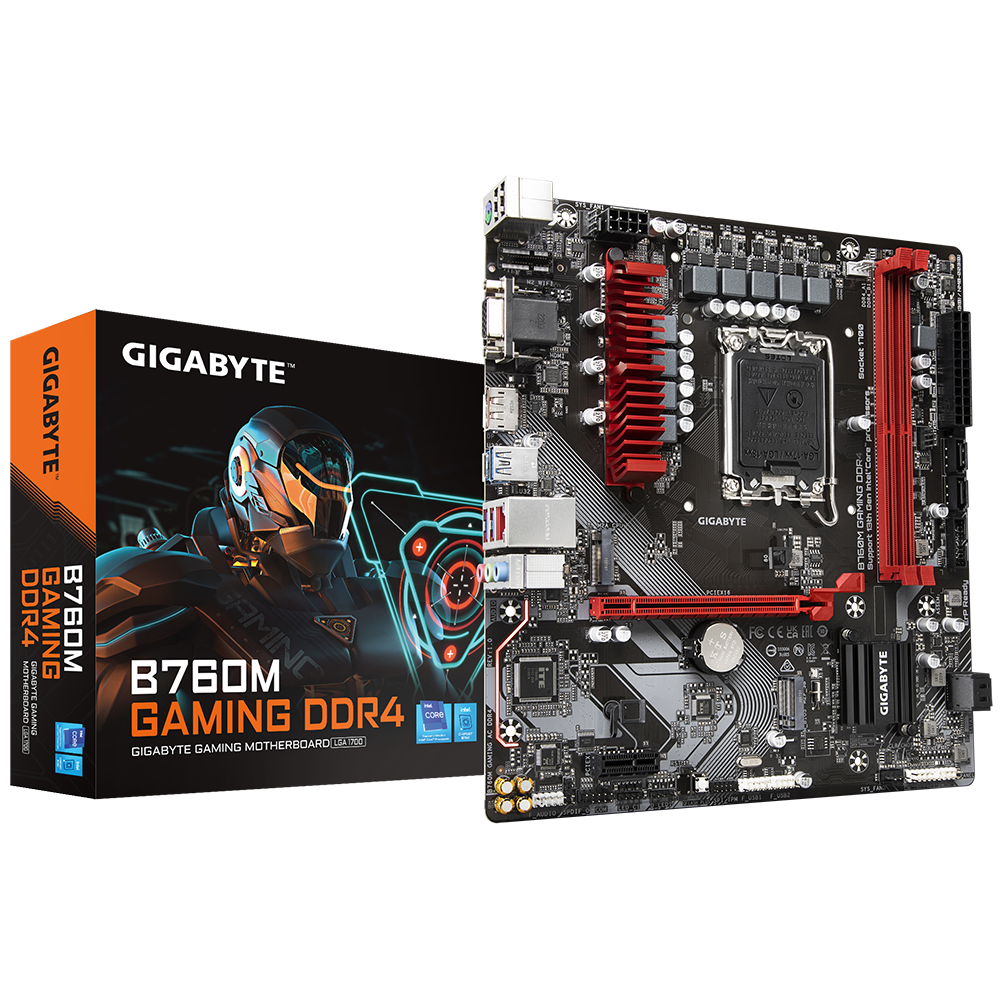

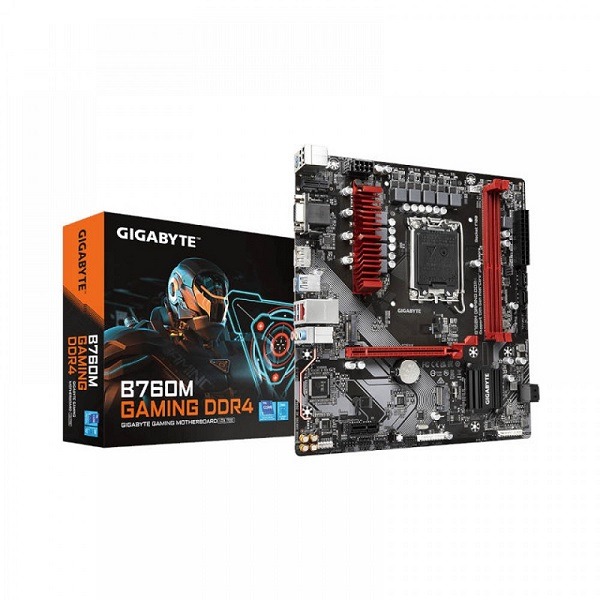

GIGABYTE B760M GAMING DDR4 Intel Motherboard

₹12,900.00

Add to cart

GIGABYTE B760M GAMING DDR4 Intel Motherboard

GIGABYTE B760M 1
GIGABYTE B760M 2
GIGABYTE B760M 3
View details

₹12,900.00

Save 36%
Gigabyte
  • Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4：2*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
GIGABYTE B760M 1

₹12,900.00

Add to wishlist
Add to cart
Buy Now
Add to wishlist
Categories: Tags: Brand:

GIGABYTE B760M GAMING DDR4 Mothebroard

Gigabyte B760M GAMING DDR4 LGA1700 Micro ATX Motherboard, Intel B760, 2x DDR4 DIMM, 64GB Max Memory, Realtek 2.5GbE LAN, 1x PCI E 4.0×16, 1x D-Sub, 1x HDMI, 1x DP | B760M-GAMING-DDR4

Intel® Socket LGA 1700 for 13th and 12th Gen Series Processors

The motherboard is designed to support the latest 13th and 12th Gen Series Processors from Intel® Socket LGA 1700, offering unmatched performance and speed. Whether you’re a gamer, content creator, or power user, this motherboard is the perfect choice for your high-performance computing needs.

Hybrid 6+2+1 Phases Digital VRM Solution

The motherboard features a Hybrid 6+2+1 Phases Digital VRM Solution, providing superior power management for stable and efficient performance. This means you can run demanding applications and tasks without any lag or slowdowns, ensuring a seamless computing experience.

Dual Channel DDR4 with XMP Memory Module Support

The motherboard supports Dual Channel DDR4 with XMP Memory Module Support, allowing for easy and fast memory overclocking. This means you can boost your system’s performance to new heights and run memory-intensive applications with ease.

Next Generation Storage with PCIe 4.0 x4 M.2 Connectors

The motherboard features 2 PCIe 4.0 x4 M.2 Connectors, enabling lightning-fast storage speeds. This means you can transfer large files and load games quickly, making it ideal for gamers and content creators.

Intel® B760 Chipset

  • Intel® Socket LGA 1700：B760M GAMING  Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4：2*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Product Type

color

Brands

Motherboard Size

Socket

Chipset

Memory Series

Specification

Model B760M-GAMING-AC-DDR4
CPU
  • LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • L3 cache varies with CPU
Chipset Intel B760 Express Chipset
Memory
  • Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] Hz
1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×[email protected] Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)

  • WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 4.2
  • Support for 11ac wireless standard and up to 433 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface CPU:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x addressable LED strip headers
  • 1 x RGB LED strip headers
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

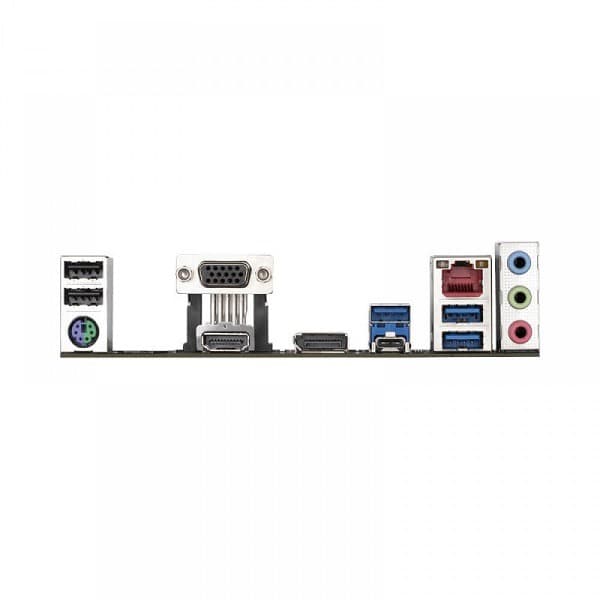

Back Panel Connectors
  • 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 2 x SMA antenna connectors (1T1R)
  • 1 x D-Sub port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C® port, with USB 3.2 Gen 1 support
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
