GIGABYTE B760M DS3H DDR4 rev 1 0 Motherboard 1
GIGABYTE B760M DS3H DDR4 (rev. 1.0) Intel Motherboard ₹12,999.00
Next
GIGABYTE B760M GAMING DDR4 Intel Motherboard ₹10,999.00
GIGABYTE B760M 1

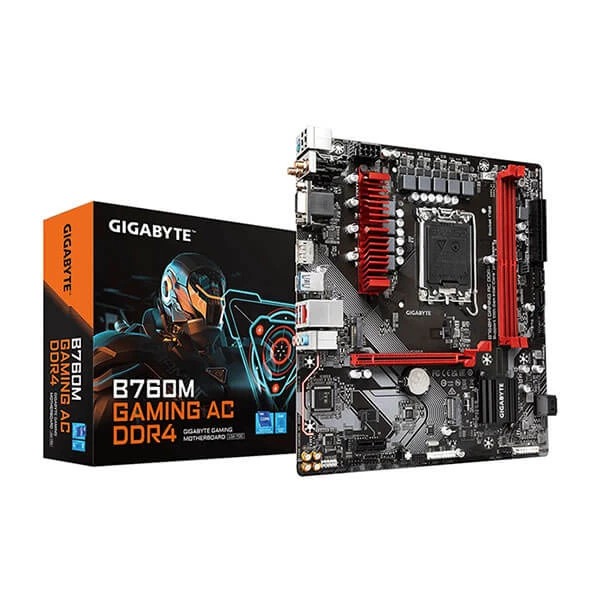

Gigabyte B760M Gaming AC DDR4 Wi Fi Motherboard 1

Gigabyte B760M Gaming AC DDR4 (Wi-Fi) Intel Motherboard

₹11,999.00

Add to cart

Gigabyte B760M Gaming AC DDR4 (Wi-Fi) Intel Motherboard

Gigabyte B760M Gaming AC DDR4 Wi Fi Motherboard 1
Gigabyte B760M Gaming AC DDR4 Wi Fi Motherboard 2
Gigabyte B760M Gaming AC DDR4 Wi Fi Motherboard 3
Gigabyte B760M Gaming AC DDR4 Wi Fi Motherboard 4
View details

₹11,999.00

Save 37%
Gigabyte
  • Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4：2*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Gigabyte B760M Gaming AC DDR4 Wi Fi Motherboard 1

₹11,999.00

Add to wishlist
Add to cart
Buy Now
Add to wishlist
SKU: B760M-GAMING-AC-DDR4 Categories: Tags: Brand:

Gigabyte B760M Gaming AC DDR4 (Wi-Fi) Motherboard Support 13th and 12th Gen Series Processors, 2*PCIe 4.0 x4 M.2 Connectors, 2.5GbE LAN & Wi-Fi 802.11ac

Experience unparalleled performance with the motherboard’s Hybrid 6+2+1 Phases Digital VRM Solution, which ensures stable and efficient power delivery to your CPU. You’ll also enjoy lightning-fast data transfer speeds with the motherboard’s dual-channel DDR4 support, allowing you to take advantage of 2 DIMMs XMP Memory Module Support.

Features:

  • Intel® Socket LGA 1700：B760M Gaming AC Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4：2*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 802.11ac
  • Extended Connectivity：Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
  • Smart Fan 6：B760M Gaming AC Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Product Type

color

,

Brands

Motherboard Size

Socket

Chipset

Memory Series

Specification

Model B760M-GAMING-AC-DDR4
CPU
  • LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • L3 cache varies with CPU
Chipset Intel B760 Express Chipset
Memory
  • Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] Hz
1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×[email protected] Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)

  • WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 4.2
  • Support for 11ac wireless standard and up to 433 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface CPU:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x addressable LED strip headers
  • 1 x RGB LED strip headers
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
Back Panel Connectors
  • 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 2 x SMA antenna connectors (1T1R)
  • 1 x D-Sub port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C® port, with USB 3.2 Gen 1 support
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
