-46%Limited

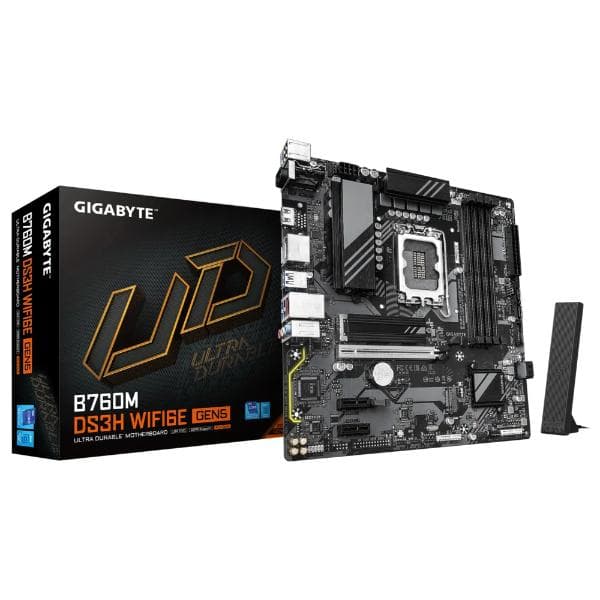

Gigabyte B760M DS3H WIFI6E GEN5 Motherboard
15 sold in last 10 hours
Hurry! Over 3 people have this in their carts
Brand:
Gigabyte
Estimated Delivery: Mon, Feb 23 – Fri, Feb 27
... people are viewing this right now
Original price was: ₹27,500.00.₹14,899.00Current price is: ₹14,899.00.
Gigabyte B760M DS3H WIFI6E GEN5 Motherboard
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Key Features
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
- EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
- Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
| Category | Details |
|---|---|
| CPU Support | LGA1700 socket – Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® ProcessorsL3 Cache varies by CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | - 4× DDR5 DIMM slots (up to 256 GB, 64 GB per DIMM) - Dual channel - ECC/Non-ECC Un-buffered DIMM support - XMP support |
| - 14th/13th Gen i9/i7: DDR5 5600/5200/4800/4400 MT/s - 13th Gen i5/i3 & 12th Gen CPUs: DDR5 4800/4400 MT/s | |
| Graphics Support | Intel® HD Graphics (via supported CPU) - 1× HDMI 2.1 (4096×2160 @60Hz) - 2× DisplayPort 1.2 (4096×2304 @60Hz) - Triple-display support |
| Audio | Realtek® Audio CODEC High Definition Audio (2/4/5.1/7.1-channel) S/PDIF Out Configurable via software |
| Networking | LAN: Realtek® 2.5GbE Wi-Fi: Intel® Wi-Fi 6E AX210 (2.4/5/6 GHz, 11ax 160MHz) Bluetooth: 5.3 |
| Expansion Slots | - 1× PCIe x16 (Gen 5, CPU) - 2× PCIe x1 (Gen 3, Chipset) |
| Storage Interfaces | - 2× M.2 (2280 PCIe 4.0 x4/x2) - 4× SATA 6Gb/s - RAID 0, 1, 5, 10 support (SATA) |
| USB Ports | - Rear I/O: • 1× USB-C (3.2 Gen 2) • 3× USB 3.2 Gen 1 • 2× USB 2.0 • 1× PS/2 (KB/Mouse combo) |
| - Internal Headers: • 2× USB 2.0 (4 ports) • 1× USB 3.2 Gen 1 (2 ports) | |
| Internal Connectors | - 1× 24-pin ATX, 1× 8-pin 12V - 1× CPU fan, 3× system fans - 2× Gen2 ARGB, 1× RGB LED headers - 2× M.2, 4× SATA - Q-Flash Plus button |
| - TPM header, Front panel/audio headers - Clear CMOS, Reset jumper - USB, SPDIF Out, and RGB headers | |

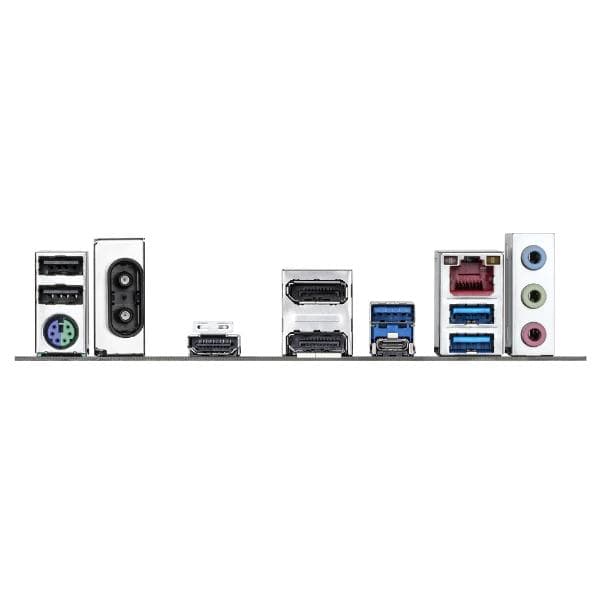

| Back Panel I/O | - 2× USB 2.0 - 3× USB 3.2 Gen 1 - 1× USB-C (3.2 Gen 2) - 1× RJ-45 LAN - 1× HDMI - 2× DisplayPort |
| - 3× Audio jacks - 2× Wi-Fi antenna ports - 1× PS/2 KB/Mouse port | |
| I/O Controller | iTE® I/O Controller Chip |
| Monitoring | Voltage, Temperature, Fan speed & failure, Water cooling flow, Fan control (depends on installed fan) |
| BIOS | 128 Mbit AMI UEFI BIOS Q-Flash, Q-Flash Plus Smart Backup PnP 1.0a, DMI 2.7, ACPI 5.0 |
| Bundled Software | Norton® Internet Security (OEM) |
| Unique Features | GIGABYTE Control Center (GCC) |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 cm × 24.4 cm) |
