Gigabyte Z790 GAMING X Motherboard LGA1700 Socket 1
Gigabyte Z790 GAMING X Intel Motherboard ₹24,400.00
Next
GIGABYTE B760M DS3H AX DDR4 Wi-Fi Intel Motherboard ₹16,000.00
GIGABYTE B760M DS3H AX DDR4 rev 1 x 1
Gigabyte B760M Aorus Elite AX DDR4 rev 1 0 Motherboard 1

Gigabyte B760M Aorus Elite AX DDR4 (rev.1.0) Intel Motherboard

₹19,000.00

Add to cart

Gigabyte B760M Aorus Elite AX DDR4 (rev.1.0) Intel Motherboard

Gigabyte B760M Aorus Elite AX DDR4 rev 1 0 Motherboard 1
Gigabyte B760M Aorus Elite AX DDR4 rev 1 0 Motherboard 2
Gigabyte B760M Aorus Elite AX DDR4 rev 1 0 Motherboard 3
Gigabyte B760M Aorus Elite AX DDR4 rev 1 0 Motherboard 4
View details

₹19,000.00

Save 30%
Aorus Gigabyte
  • Intel® Socket LGA 1700：Gigabyte B760M Aorus Elite AX DDR4 (rev.1.0) Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4：4*DIMMs with XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Gigabyte B760M Aorus Elite AX DDR4 rev 1 0 Motherboard 1

₹19,000.00

Add to wishlist
Add to cart
Buy Now
Add to wishlist
SKU: B760M-AORUS-ELITE-AX-DDR4 Categories: Tags: Brands: ,

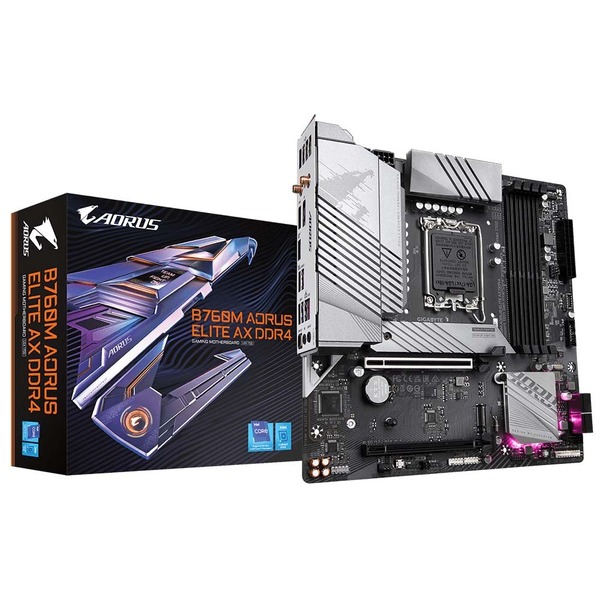

Gigabyte B760M Aorus Elite AX DDR4 (rev.1.0) Intel Motherboard

Gigabyte B760M Aorus Elite AX DDR4 (rev. 1.0) Motherboard

Unparalleled Performance
Twin Digital | VRM Design PCIe 4.0 | Design DDR4 | XMP Dual PCIe 4.0 | M.2 PerfDrive
With Gigabyte B760M Aorus Elite AX DDR4 (rev.1.0) Motherboard the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Support for DDR4 XMP Up to 5333MHz and Beyond*

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Dual PCIe 4.0 x4 M.2
AORUS Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.

Outstanding Thermal Design
Thermal Design | Fully Covered MOSFET Heatsink | M.2 Thermal Guard | 2X Copper PCB | Smart Fan 6
GIGABYTE B760M Aorus Elite AX DDR4 (rev.1.0) Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Features :

  • Intel® Socket LGA 1700：Gigabyte B760M Aorus Elite AX DDR4 (rev.1.0) Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4：4*DIMMs with XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance in Gigabyte B760M Aorus Elite AX DDR4 (rev.1.0)
  • EZ-Latch Plus：Gigabyte B760M Aorus Elite AX DDR4 (rev.1.0) has M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
  • Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI
  • Smart Fan 6：Gigabyte B760M Aorus Elite AX DDR4 (rev.1.0) Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Product Type

color

Brands

Motherboard Size

Socket

Chipset

Memory Series

Specification

CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.
Chipset Intel® B760 Express Chipset
Memory Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
* Support for HDMI 2.0 version and HDCP 2.3.

1 x DisplayPort, supporting a maximum resolution of 4096×[email protected] Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC

High-Definition Audio

2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6E AX211

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Support for AMD CrossFireX™ technology


Storage Interface CPU:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

1 x USB 3.2 Gen 1 port on the back panel

4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper
Back Panel Connectors



 2 x SMA antenna connectors (2T2R)

1 x USB Type-C® port, with USB 3.2 Gen 2×2 support

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x HDMI port

1 x DisplayPort

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Water cooling flow rate detection

Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus
Bundled Software Norton® Internet Security (OEM version)

LAN bandwidth management software
Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
