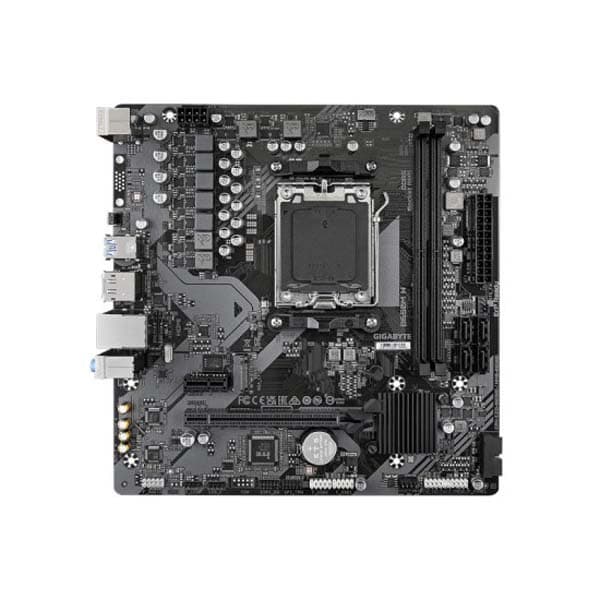

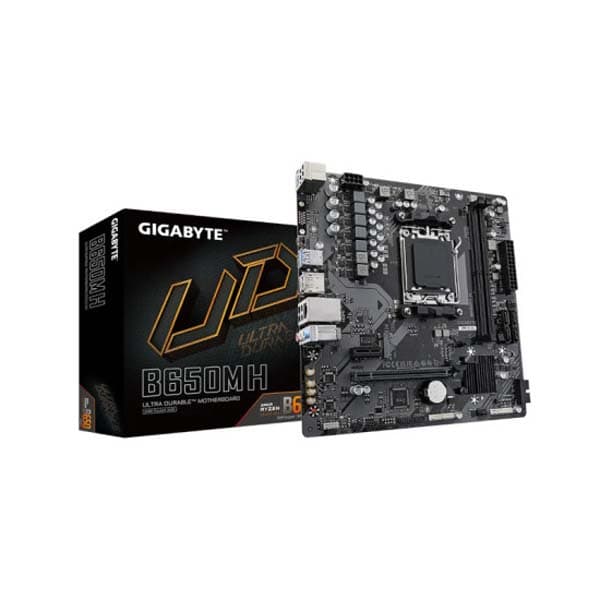

Gigabyte B650M H Micro ATX Motherboard
SKU: B650M-H-rev-1-2
users viewing this item right now
₹17999
₹8380
Save Extra
Availability
In Stock
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
Gigabyte B650M H Micro ATX Motherboard
Feature
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Digital VRM Design
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
EXPO & XMP Support
DDR5 EXPO & XMP Overclocking Up to 7200 and BeyondFuture Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 4.0 Hardware Design
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. * Photo for reference only.
Hi-Fi Audio
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Q-Flash Plus
- STEP 1: Plug 24pin & 8pin power supply cable on motherboard
- STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
- STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Key Features
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B650 |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |
| Back Panel Connectors | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| BUNDLE SOFTWARE | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Warranty | 3 Years |
| Note | Price, feature and specifications are subject to change without notice. |
Color
Black
Brands
Gigabyte
Socket
AM5
Chipset
B650
Platform
AMD
Warranty
3 Years
Product-Type
Gaming
Memory-Series
DDR5
