Gigabyte
4719331554651
Fully Modular
Normal
1000W
White
GP-AE1000PM PG5 ICE
2 kg
N/A

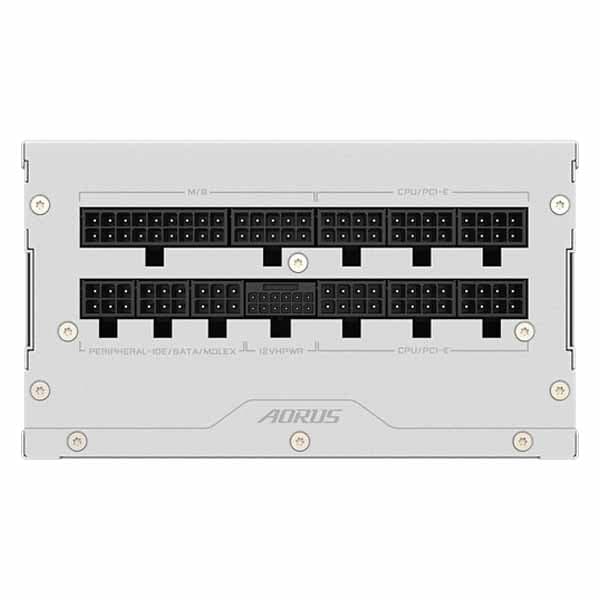

Connectivity
| Total Connectors | 1x 20+4-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 8x 15-Pin SATA 4x 4-Pin Peripheral / Molex |
| Cable Design | Flat |
| PCIe Connector Distances | 25.6" / 650 mm 29.5" / 750 mm 31.5" / 800 mm |
| SATA Connector Distances | 23.6" / 600 mm 29.5" / 750 mm 35.4" / 900 mm 41.3" / 1050 mm |
| Peripheral Connector Distances | 19.7" / 500 mm 25.6" / 650 mm 31.5" / 800 mm 37.4" / 950 mm |
| ATX Connector Distance | 25.6" / 650 mm |
| EPS Connector Distances | 27.6" / 700 mm |

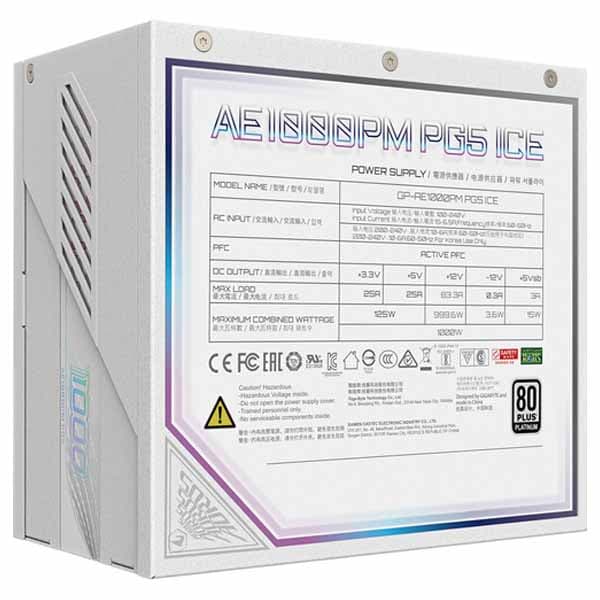

Electrical
| Total Wattage | 1000 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 999.6 W |
| Max Load for +12 V | 83.3 A |
| Combined Power for +3.3/+5 V | 125 W |
| Max Load for +3.3 V | 25 A |
| Max Load for +5 V | 25 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 Vsb | 3 A |
| Max Power for -12 V | 3.6 W |
| Max Load for -12 V | 0.6 A |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
General
| Efficiency Rating | 80 PLUS Platinum |
| Active Power Factor Correction | Yes |

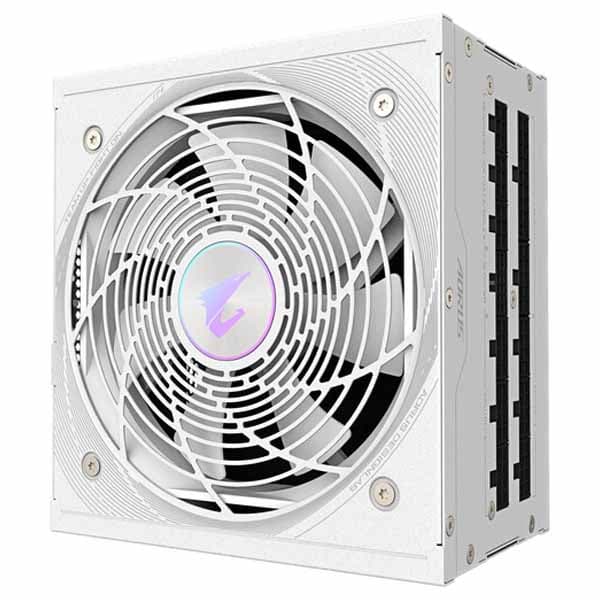

Cooling
| Fan Size | 120 mm |
| Bearing Type | Fluid Dynamic Bearings (FDB) |
Physical
| Form Factor | ATX |
| Compliance | ATX 12 V v3.0, ATX v3.1 |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Mean Time Between Failures (MTBF) | 100,000 Hours |
| Dimensions | 5.9 x 5.5 x 3.4" / 150 x 140 x 86 mm |
Packaging Info
| Package Weight | 7.925 lb |
| Box Dimensions (LxWxH) | 13.8 x 8.9 x 4.8" |
