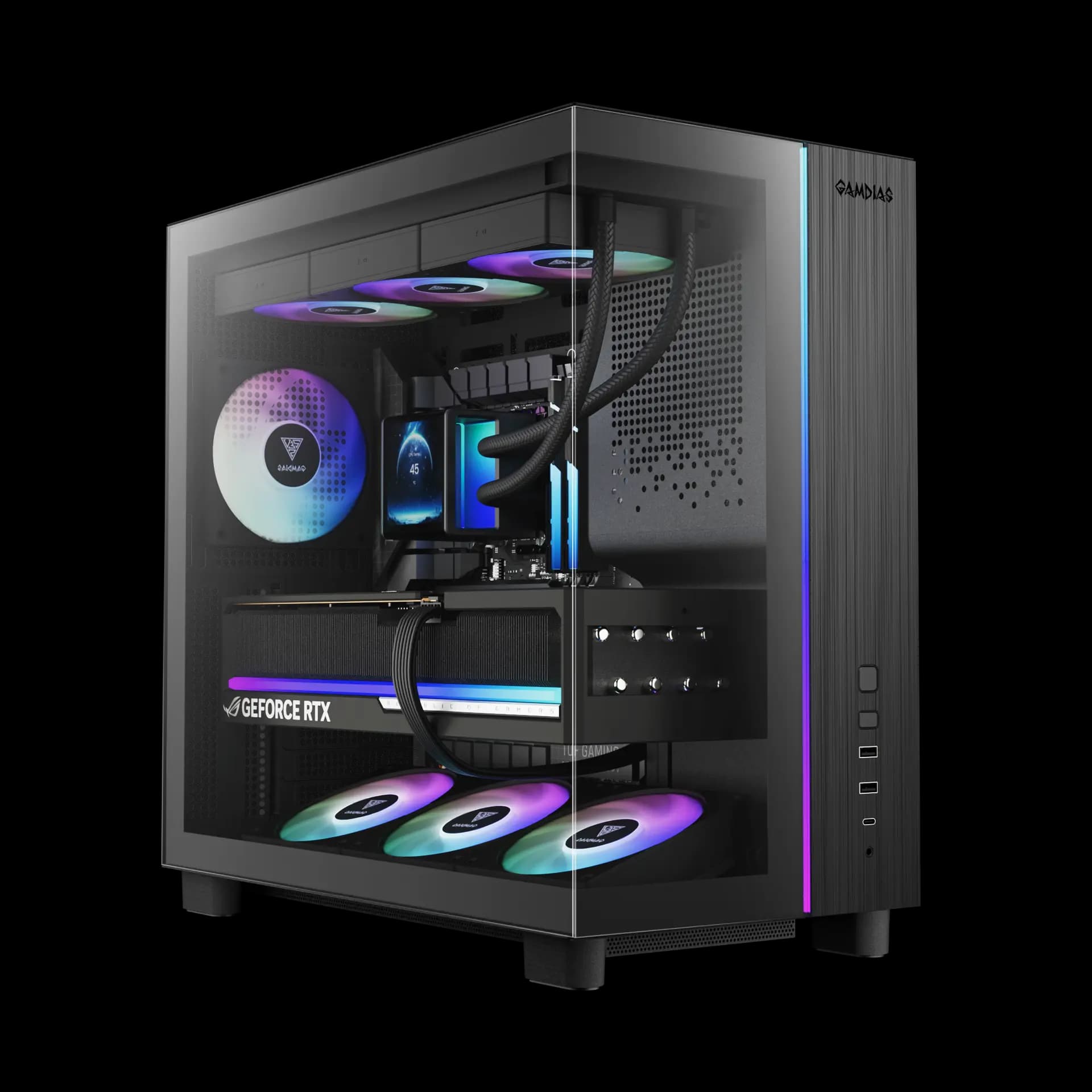

GAMDIAS ATLAS M4 Mid-Tower Case (Black)
SKU: ATLAS M4
users viewing this item right now
₹9999
₹6749
Save Extra
Availability
In Stock
Seamless Tempered Glass Display
• 4 Built-in 120mm NOTUS M1 ARGB Fans
• Natural Chimney-Style Ventilation
• Front-Mounted PSU Design
• Adjustable Bottom Cooling System
• Modular Tool-free Installation
• Supports Connector-hidden Motherboards
• Fits Mini-ITX, Micro-ATX, and ATX motherboards
• Pre-Installed Anti-sag Bracket for GPU up to 425mm
• Gen 2 Type-C Port Ready
• Magnetic Dust Filter
GAMDIAS ATLAS M4 Mid-Tower Case (Black)
ADJUSTABLE ANGLED AIRFLOW
The ATLAS M4 features a bottom-mounted, adjustable fan system with six selectable angles, directing airflow precisely toward high-performance GPUs. This flexible design ensures optimal cooling efficiency, keeping your graphics card stable and reliable even under maximum gaming load.

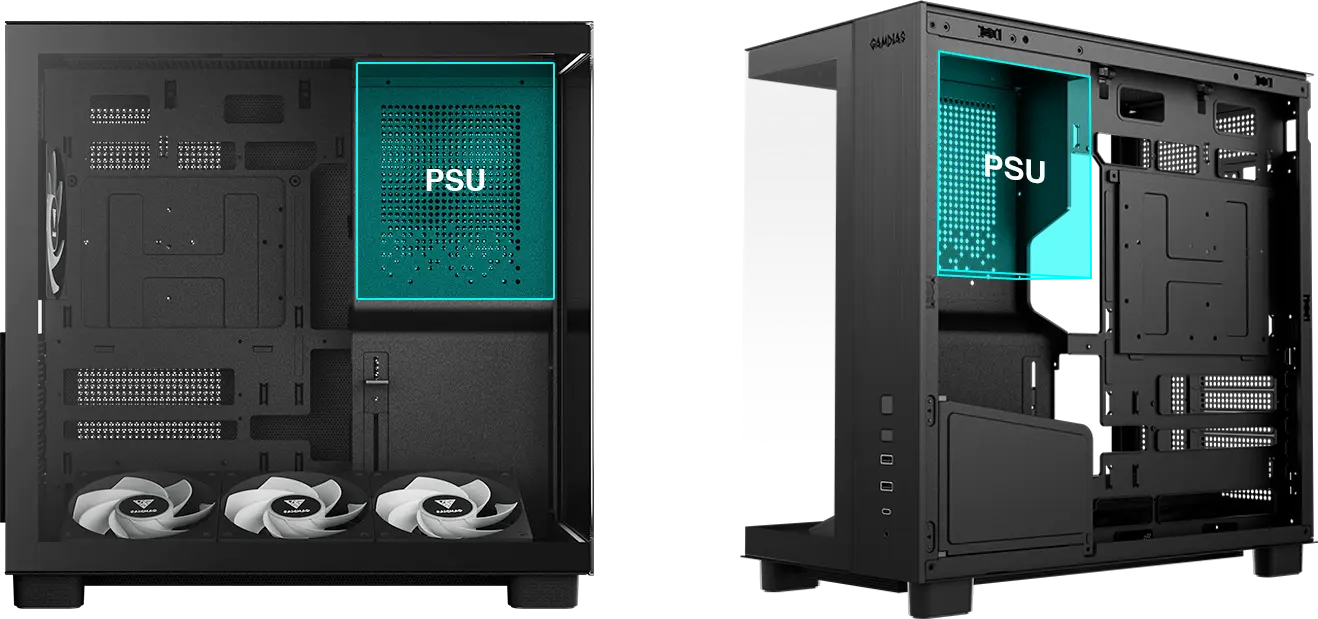

EASY ACCESS FRONT-MOUNTED PSU DESIGN
The PSU is strategically positioned at the front side of the case, with connector ports oriented downward for easier cable management. A PSU shroud enhances the clean aesthetic, and an extension cable is included to facilitate rear power connection.

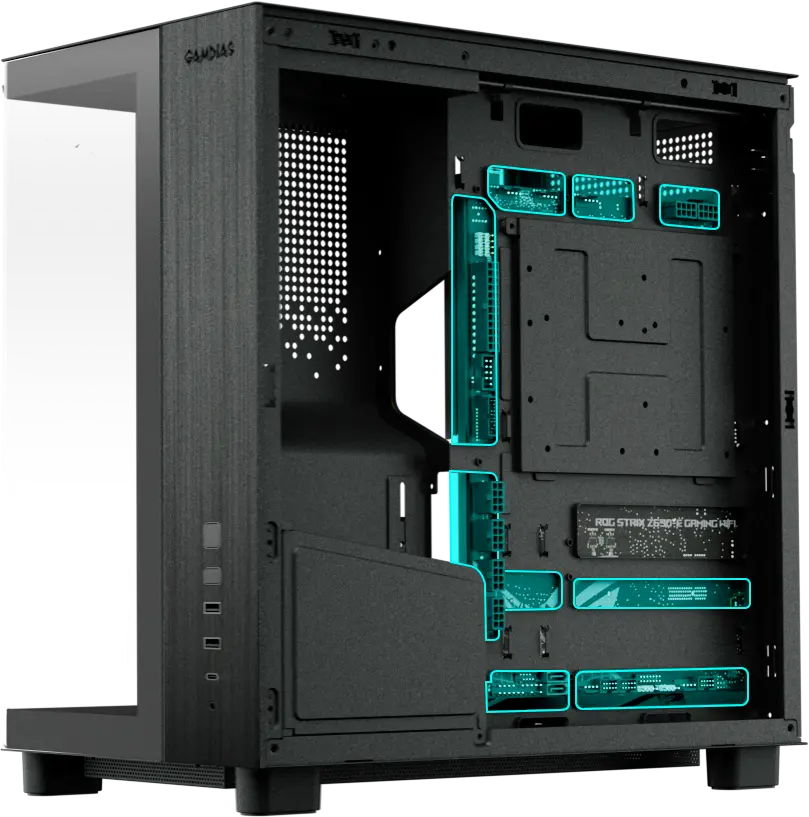

FLAWLESS VIEW
The ATLAS M4 supports connector-hidden motherboards (BTF), allowing cables to plug in from the back for a cleaner front appearance and enhanced PC setups. A rotatable cable cover beneath the PSU chamber helps conceal and organize wires, ensuring a seamless and organized build.
GEN 2 TYPE-C INTERFACE
The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, two USB 3.0 ports, fan LED controls, and additional audio connectivity.

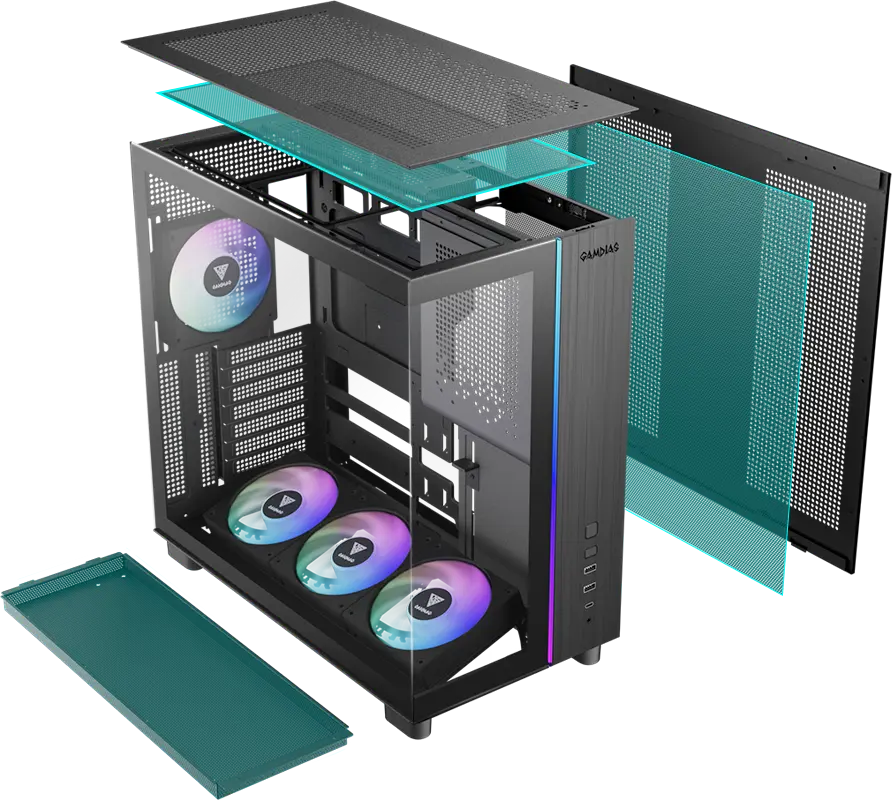

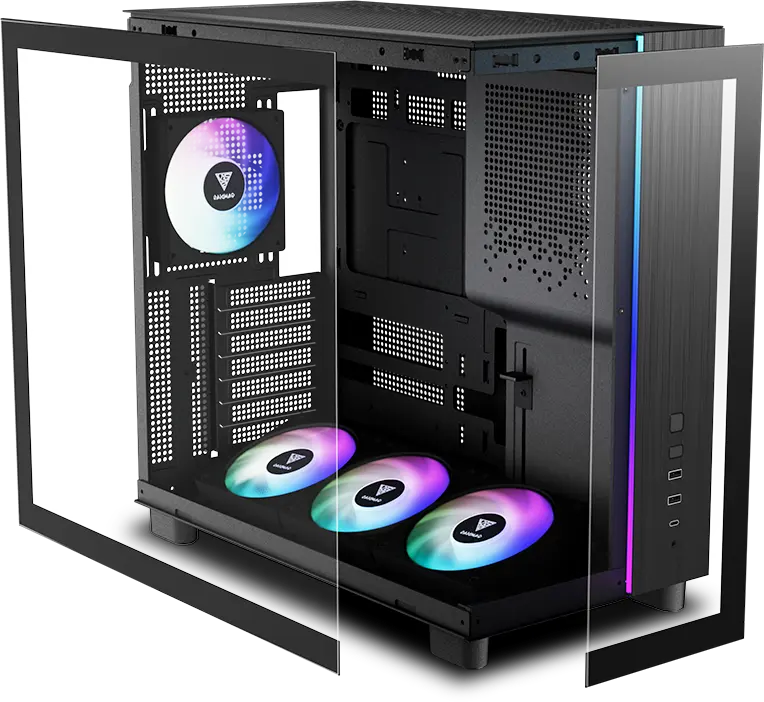

SIMPLE CLASP MECHANISM
The ATLAS M4 showcases your build with tempered glass on the front and side, while a simple clasp mechanism on all removable panels ensures stunning visuals with easy modding and upgrades.
COOLING COMPATIBILITY
The ATLAS M4 can accommodate up to 7 fans and offers flexible options for the installation of radiators at the top and rear.

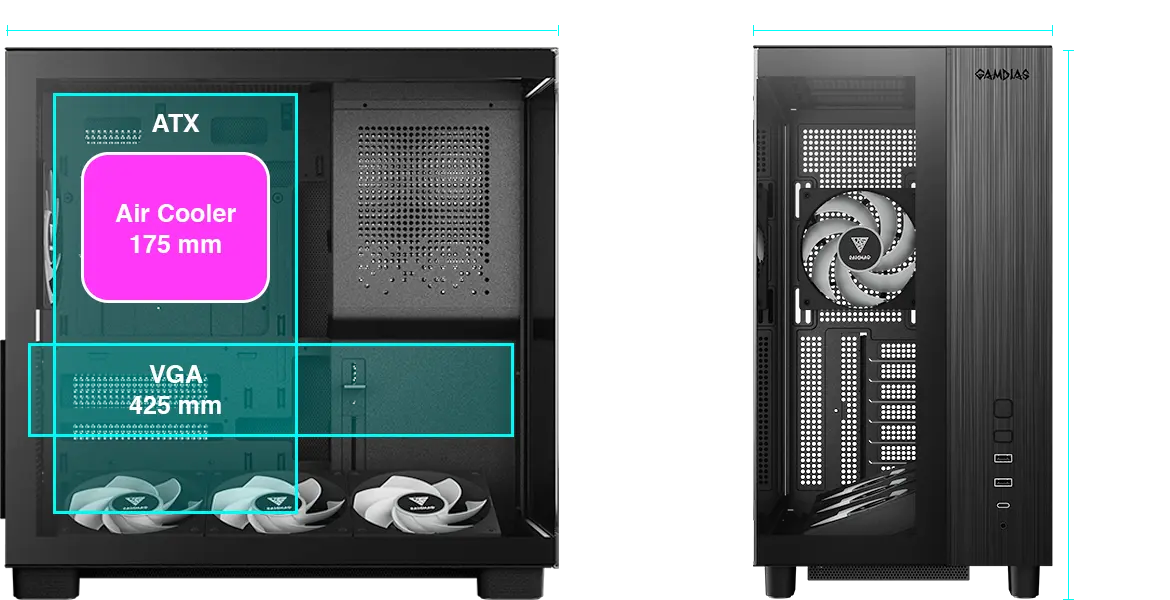

INTERIOR ACCOMMODATION
The case offers the option to house up to ATX motherboards, air coolers with 175mm RAM clearance, and VGA cards with lengths up to 425mm.

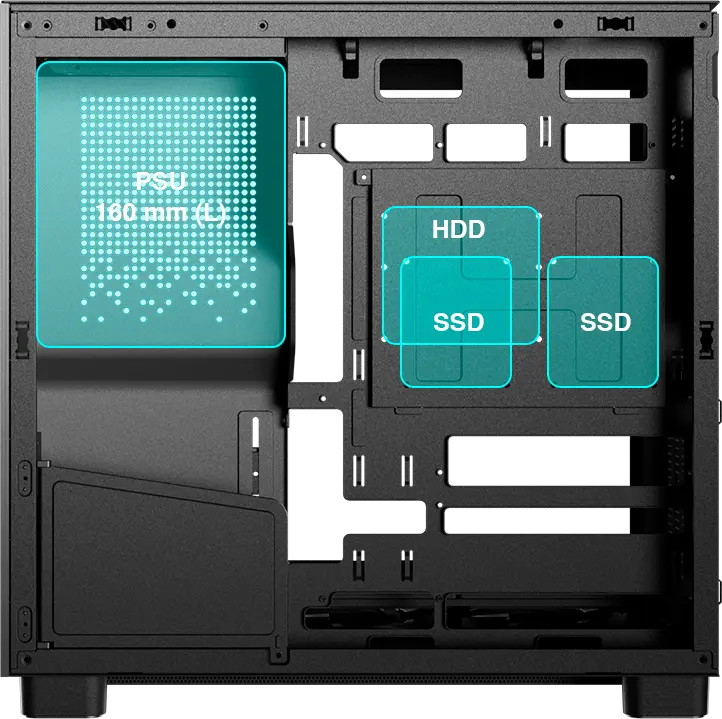

STORAGE COMPATIBILITY
The ATLAS M4 supports installation of up to 2 x 2.5" or 1 x 2.5"+1 x 3.5" and can accommodate PSU lengths up to 160mm.
Key Features
| Category | Feature | Details |
|---|---|---|
| General | Model | ATLAS M4 |
| Case | Case Type | Mid Tower |
| Case | Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Case | Synchronization | 5V 3-Pin Addressable Header |
| Case | Case Color | Black |
| Case | Expansion Slots | 7 |
| Case | Material | SPCC & ABS & Tempered Glass |
| Case | Window | Front, Left |
| Case | Radiator Support | Top: 360 mm / Rear: 120 mm |
| Case | Fan Support | Top: 3 × 120 mm / Rear: 1 × 120 mm or 1 × 140 mm / Bottom: 3 × 120 mm |
| Case | Pre-installed Fans | Rear: 1 × 120 mm PWM ARGB Fan / Bottom: 3 × 120 mm PWM ARGB Fans |
| Case | Drive Bays | 1 × 3.5" + 1 × 2.5" or 2 × 2.5" |
| Case | I/O Ports | Type-C ×1, USB 3.0 ×2, HD Audio ×1, LED Control ×1 |
| Clearance | CPU Cooler Height | Up to 175 mm |
| Clearance | GPU Length | Up to 425 mm |
| Clearance | PSU Length | Up to 160 mm |
| Dimensions | Size (L × W × H) | 430 × 235 × 434 mm |
| Extras | Control Box | 8 Ports Hub (4 ports used) |
| Note | PSU Compatibility | Some PSUs may have compatibility issues depending on AC inlet orientation; recommended to use GAMDIAS PSU |
Color
Black
Brands
Gamdias
Case-Form-Factor
Mid Tower
Lighting-Profile
ARGB
Motherboard-Size
mATX
