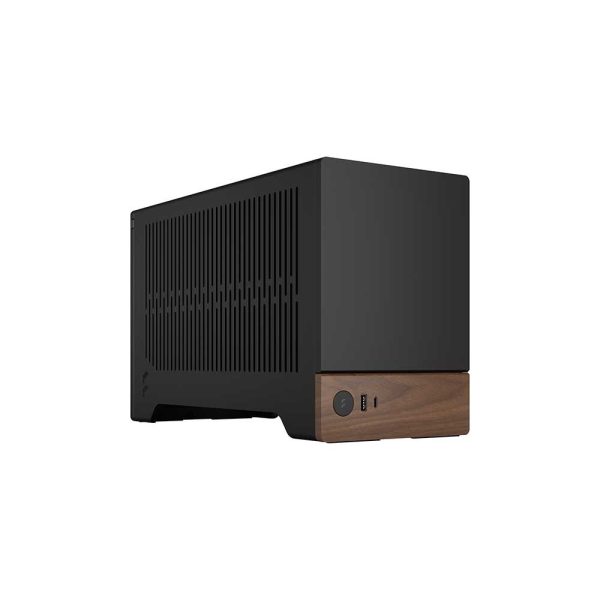

Fractal Design Terra Mini ITX Cabinet (Graphite)
Brand: Fractal Design
- Mini-ITX Motherboard Support
- Aluminum Frame with Wood Panel
- 2 x 2.5″ Drive Bays
- 3 x Vertical Expansion Slots
- USB-C 3.2 Gen 2×2 | USB-A 3.2 Gen 1
- Supports One 120mm Bottom Fan
... people are viewing this right now
Original price was: ₹31,345.00.₹23,495.00Current price is: ₹23,495.00.
Out of stock
Email when stock available
Fractal Design Terra Mini ITX Cabinet (Graphite)
Feature
Elegantly crafted
- Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
- Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
- Make the most of natural airflow through the ventilated top, side and bottom panels
Engineered for SFF gaming
- Enjoy powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case (excluding feet)
-
Get a head start on your build with the included PCIe 4.0 riser cable
-
Store up to two SSDs in the dedicated 2.5” drive mounts
0:08Choose your accent
The Fractal design Terra is available in your choice of three distinct anodized aluminum versions to perfectly complement and elevate your gaming space
0:09Adjustable motherboard plate
- Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall
- Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other
0:05Natural material
Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.
| Dedicated 2.5″ drive mounts | 2 (included) |
| Expansion Slots | 3 (Max GPU Mode), 2 (Max CPU-Cooler height mode) |
| Front Interface | 1x USB Type-C 20Gbps (USB 3.2 Gen 2×2), 1x USB Type-A 5Gbps (USB 3.0), Power Button |
| Total Fan Mounts | 1x 120 mm |
| Bottom Fan | 1x 120 mm |
| Tool-less push-to-lock | Both side panels and top panel (can also be locked with screws) |
| Compatibility | |
| Motherboard compatibility | mITX |
| Power Supply Type | SFX-L/ SFX |
| PSU Max Length | 130 mm |
| Side Radiator | 1x 120mm (121 mm wide if max 200 mm GPU and no SSDs) |
| GPU Max Length | 322 mm |
| GPU Max Width (if GPU height is lower than 131 mm) | 72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler) |
| GPU max width (if GPU height 131-145mm) | 62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler) |
| GPU Max Height | 145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler) |
| *CPU cooler max height | 48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler) |
| *Additional Comment | Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info. |
| Dimensions | |
| Case Dimensions (LxWxH) | 343 x 153 x 218 mm |
| Case dimensions w/o feet/protrusions/screws | 343 x 153 x 198 mm |
| Packaging Dimensions (LxWxH) | 394 x 215 x 292 mm |
| Net Weight | 3.1Kg |
| Gross Weight | 4.0Kg |
| Volume | 10.4 liter (excluding feet), 11.4 liter (external dimensions) |
| Other | |
| Package Contents | Case, Accessory box, Manual |
| SKU | FD-C-TER1N-01 |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| Warranty | |
| EAN / UPC Code |
