SKU: FD-C-MES2C-03
users viewing this item right now

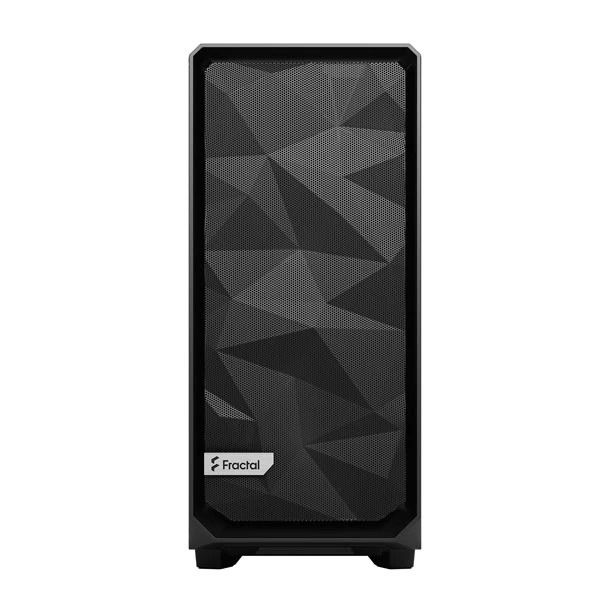

Get easy access to front fan mounts via a hinged removable mesh filter and tether-free bezel on the front panel. Along with a top filter, a base filter is also present and provides full PSU coverage; all three filters are designed for easy cleaning. Plus, the nylon front filter can be removed entirely for even greater airflow.

Install up to seven fans or a front or top radiator up to 360 or 240mm, respectively. Furthermore, the open interior layout creates a smooth airflow path from intake to exhaust. One 120mm rear fan and two 140mm front fans are included.

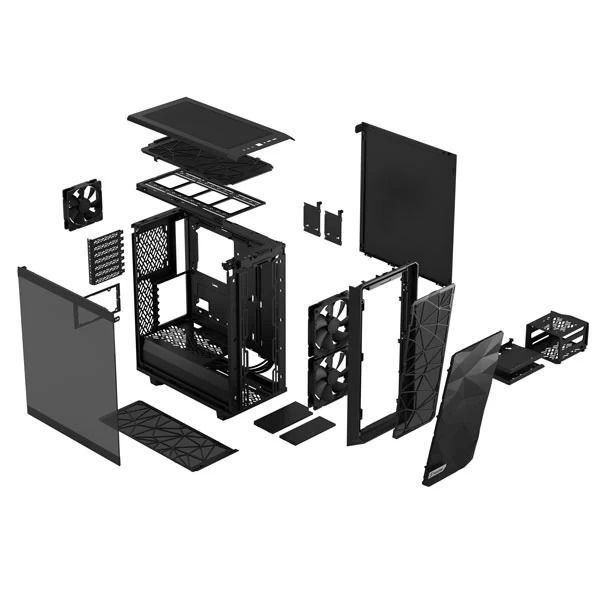

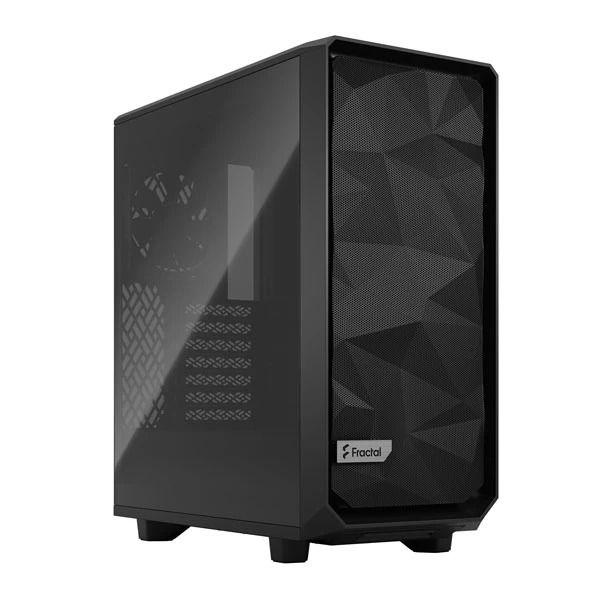

Boasting a steel frame and light-tinted tempered glass side panel, the Meshify 2 Compact utilizes a bolt-free top-latching mechanism for easy access. A fully removable top panel also allows for easy part swapping or upgrades. This case sports two 3.5/2.5" drive bays and two 2.5" drive brackets. Four mounting positions allow for additional 2.5" drives using extra drive brackets, available separately. Cable routing space is complemented by three integrated cable alignment clips and six Velcro straps, ensuring a tidy build.
The sturdy steel drive trays are vibration-damped by cushioning rubber grommets.

A full length power supply shroud readily conceals the drive cage and excess cabling.

Get fast charging and speeds up to 10 Gb/s with a USB-C 3.1 Gen 2 port on the front panel. Two 5 Gb/s USB 3.0/3.1 Gen 1 ports are also present, along with 3.5mm audio jacks for audio input and output.
| 3.5"/2.5" Universal drive mounts | 2 (included) |
| Dedicated 2.5" drive mounts | 4 (2 included) |
| Expansion Slots | 7 |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 7x 120 or 4x 140 mm and 2x 120 mm |
| Front fan | 3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm, (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm (requires removal of HDD cage) |
| Dust filters | Top, front and bottom |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Tempered Glass |
| Right side panel | Steel |
| Motherboard compatibility | ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| PSU max lengthq | 200 mm (165 mm with HDD cage and front fan) |
| GPU max length | 341 mm (360 mm without front fan) |
| CPU cooler max height | 169 mm |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 240 mm |
| Rear radiator | 120 mm |
| Bottom radiator | 120 mm (requires removal of HDD cage) |
| Cable routing space | 17-28 mm |
| Radiator Support – Additional Details | Maximum radiator width: 145 mm. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual. |
| Case dimensions (LxWxH) | 424 x 210 x 475 mm |
| Case dimensions w/o feet/protrusions/screws | 412 x 210 x 455 mm |
| Package dimensions (LxWxH) | 542 x 320 x 554 mm |
| Net weight | 7.7 kg |
| Gross weight | 9.3 kg |
| Volume | 39.4 Liters |
| Package contents | Meshify 2 Compact Case, User manual, Accessory box |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
