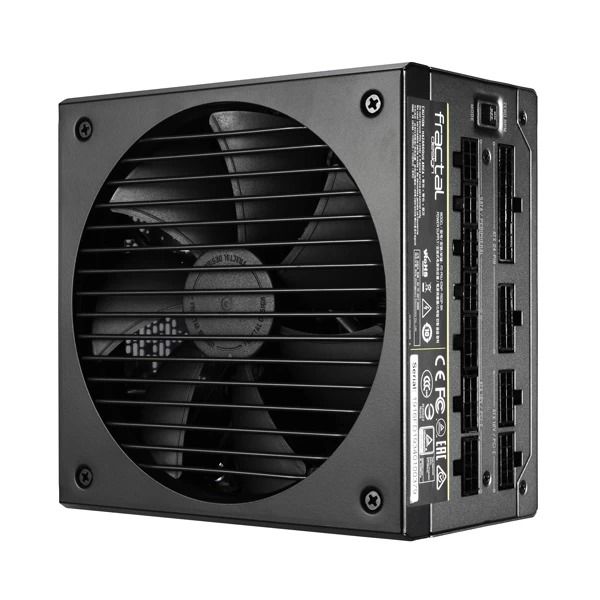

Fractal Design Ion+ 760W 80 Plus Platinum Fully Modular Power Supply
20 sold in last 3 hours
Hurry! Over 9 people have this in their carts
- • UltraFlex DC wires for effortless cable-routing and connectors
- • Custom-tailored 140 mm fan with exceptionally low minimum speed
- • 80 PLUS® Platinum Efficiency for optimized electrical performance
Estimated Delivery: Dec 08 – Dec 12
... people are viewing this right now
₹11,919.00
Fractal Design Ion+ Series 760W Fully Modular Power Supply With Active PFC, Features 10x Sata Connectors, 2x EPS 12V CPU Connectors, 6x PCIe 6+2 Pin GPU Connectors, 4 Pin Peripheral ATA Connector and Premium Japanese Capacitors with Excellent Efficiency
Features
Ion+ 760W Platinum
The Ion+ Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality
- UltraFlex DC wires for effortless cable-routing and connectors
- Custom-tailored 140 mm fan with exceptionally low minimum speed
- 80 PLUS® Platinum Efficiency for optimized electrical performance
The power of silence
Power with a plus
- Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing
- Extensive 10 year warranty
Japanese capacitors
UltraFlex Cables
Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation—not fight it
Zero RPM
User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
More power, less heat
- 80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
- Outstanding output quality with tight voltage regulation and extremely low noise and ripple
- Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
| Model | FD-PSU-IONP-760P-BK-EU |
| 80 PLUS® Certification | Platinum |
| Modular cables | Fully modular |
| Cable type | Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire |
| Fan type | Customized 140 mm FDB bearing Fractal Design Dynamic Series fan |
| Maximum operating temperature at full load | 50° C |
| Semi-passive operation | Yes, user selectable (Zero RPM) |
| Sleep State Compliance | C6/C7 |
| Capacitors | Japanese |
| Protection features | Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection |
| Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Life expectancy (MTBF) at max output load | 100,000 hours |
|
Input voltage |
100-240V AC |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Number of 12V rails | 1 |
| PSU specification compliance | ATX12V 2.4 / EPS12V 2.92 |
| Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Unit measurements | 150 x 150 x 86 mm |
| Unit weight (unit only) | 1.665 kg |
| Connectors | |
| ATX 24-pin | 1 |
| ATX12V 4+4 pin / EPS12V 8-pin | 2 |
| PCIe 6+2 pin | 6 |
| SATA | 10 |
| Peripheral | 4 |
| Cable configuration (length between connectors) | |
| ATX 24-pin | 600 |
| ATX12V 4+4 pin | 700 |
| EPS12V 8-pin | 600 |
| PCIe 6+2 pin | 550+120 |
| SATA | 400+120+120+120, 650+120 |
| Peripheral | 400+120+120+120 |
| DC output | |
| 3.3 V | 22A |
| 5 V | 22A |
| 3.3 V and 5 V combined | 120W |
| 12 V | 63.3A |
| -12 V | 0.3A |
| 5 V Standby (+5 Vsb) | 3A |
| Total Power | 760W |
| Other | |
| Package dimensions (W x H x D) | 325 x 110 x 210 mm |
| Package weight | 2.975 kg |
| Package content | Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual |
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| PSU Certification | |
| Wattage | |
| Modular | |
| Warranty | |
| EAN / UPC Code |
