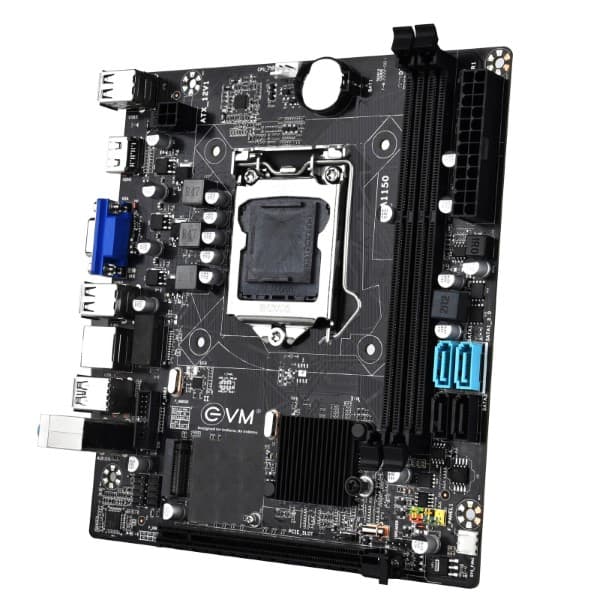

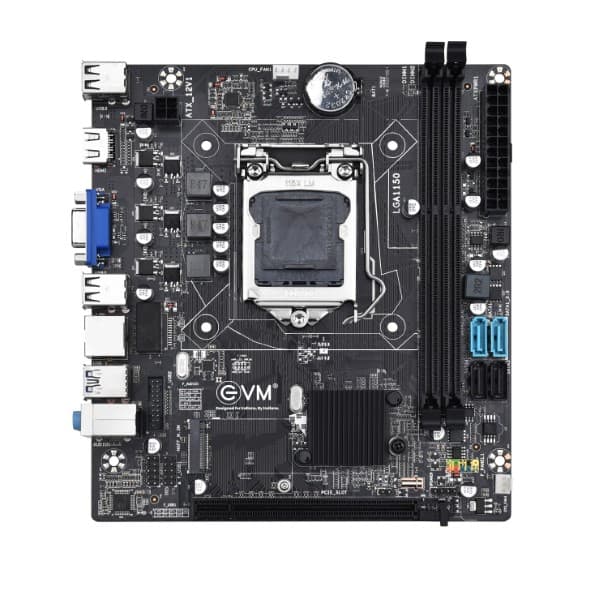

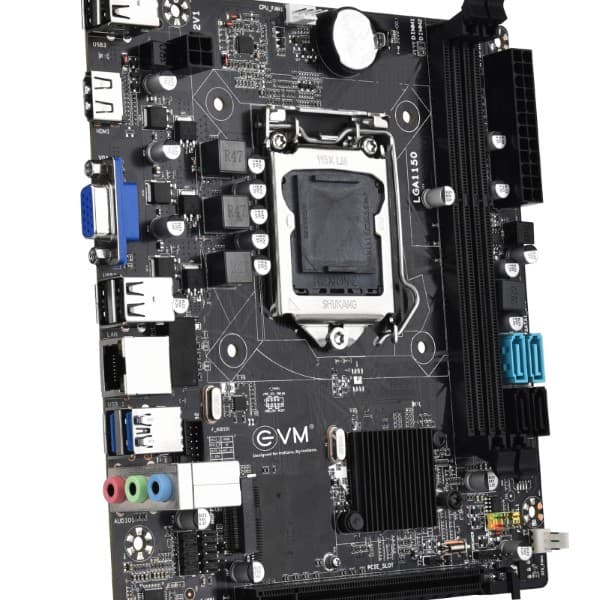

EVM EVMH81JEL DDR3 Motherboard With Nvme Slot
- Intel H81 Chipset(LGA1150)
- Intel Core i3 i5 i7 E3-V3 LGA 1150 series CPU
- Supports 2* DDR3 1066/1333/1600MHz Slots, up to 16GB
- 4 SATA 6Gb/s Ports
- 1 * PCIE x16 slot( x8 mode)
- 1*HDMI, 1*VGA, 1*RJ45, 1*Line-out, 1*Line-in, 1*MIC, 4*USB2.0, 2*USB3.0
- (USB 2.0/USB 3.0/etc…) 6* USB2.0 + 4* USB3.0
- With NVMe Slot
Original price was: ₹3,999.00.₹1,899.00Current price is: ₹1,899.00.
Specifications:
(1) Intel H81 Chipset(LGA1150)
(2) Intel Core i3 i5 i7 E3-V3 LGA 1150 series CPU
(3) Supports 2* DDR3 1066/1333/1600MHz Slots, up to 16GB
(4) 4 SATA 6Gb/s Ports
(5) 1 * PCIE x16 slot( x8 mode)
(6) 1*HDMI, 1*VGA, 1*RJ45, 1*Line-out, 1*Line-in, 1*MIC,
4*USB2.0, 2*USB3.0
(7) (USB 2.0/USB 3.0/etc…) 6* USB2.0 + 4* USB3.0
(8) With NVMe Slot
- Compatibility: The EVM DDR3 Motherboard is compatible with Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron processors, ensuring a wide range of processor compatibility options.
- Memory Support: The motherboard supports DDR3 1066/1333 SDRAM, providing reliable and efficient memory performance for your desktop system.
- Expansion Slots: It features a PCI Express x16 slot and a PCI Express x1 slot, allowing for expansion options to add additional components such as graphics cards, sound cards, or networking cards.
- Storage Connectivity: The motherboard is equipped with SATA 3Gb/s ports, providing ample connectivity options for your storage devices such as hard drives and solid-state drives.
- USB Ports: It offers 8 USB 2.0 ports, with 6 located at the back panel and 2 at the mid-board, ensuring convenient connectivity for your peripherals and accessories.
|
Processor Support |
Intel® Socket 1150 for 4th Generation CoreTMi7 /CoreTMi5/CoreTMi3/Pentium®/Celeron@ Processors |
|
Chipset |
Intel® H81 Chipset |
|
Memory Support |
DDR3 1066/1333/1600 MHZ SDRAM 2 DDR3 DIMMs (240pin/ 1.5V/ 1.35V) (For more information on compatible components, please check with manufacturer) |
|
LAN |
Supports Realtek®8105E 10/100 Mbps |
|
Audio |
Chip integrated by Realtek@661/662 Flexible 6-channel audio with Jack sensing Compliant with Vista Premium |
|
Storage |
4* SATA 3.0( 6Gbps) |
|
USB |
6 USB 3.0(4 at back panel, 2 at mid-board) 4 USB 2.0(2 at back panel, 2 at mid-board) |
|

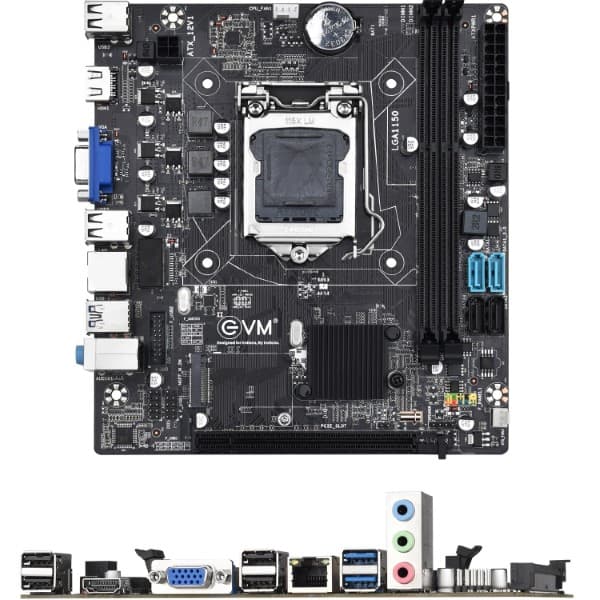

BACKPANEL |
1 VGA ports, 1HDMI port 4* USB 3.0 ports 1 * LAN jack 2* USB 2.0 ports 3 flexible audio jacks |
|
On-Board Pinheaders / Connectors |
1 24-pin ATX power conector 1 F_PANEL conector 1 4-pin ATX power conector 1 USB 3.0 conector 1 USB 2.0 conector 1 F_AUDIO conector 1 Speaker conector 1 FAN conector |
|
Slots |
1* PCI Express x16 slot |
|
Form Factor |
Micro-ATX (19cm X 17 cm) |
|
Mounting |
6 Mounting holes |
Q & A
THE EVM EVMH81JEL DDR3 MOTHERBOARD WITH NVME SLOT IS AVAILABLE AND SUPPORTS 4TH GENERATION INTEL CORE PROCESSORS. IT INCLUDES 1 PCI EXPRESS X16 SLOT OPERATING IN X8 MODE, ALLOWING FOR EXPANSION OPTIONS WHILE USING NVME STORAGE.
