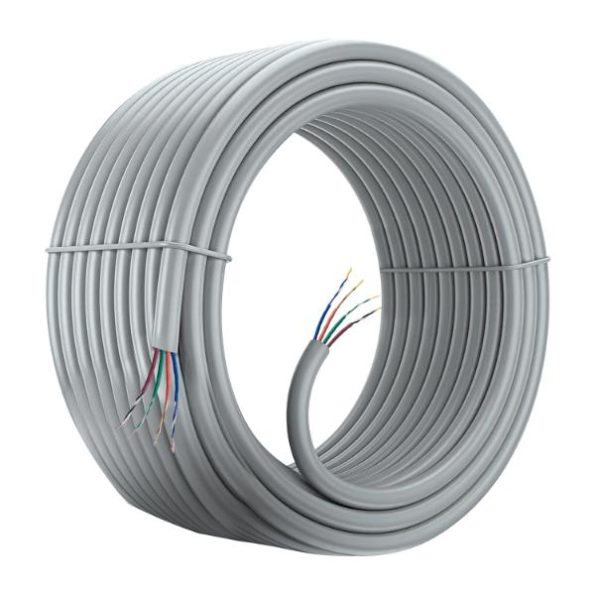

EVM Cat 6 High Speed Network Cable 100M EVM-NC-100

EVM Cat 6 High Speed Network Cable 100M EVM-NC-100

● No. of Cords: 4 Pairs ● EVM Conductor : Material - CCA Construction – 1/0.5mm (+/- 0.005mm) ● Insulation : Material - HDPE Thickness – 0.215 (+/- 0.03mm) Diameter – 0.90 (+/- 0.04mm) ● Inner Layer - Twisted : Direction: - S Pitch REF – 30mm underneath ● Outside Layer - PVC : Direction - S Pitch REF – 100 (+/- 5mm) ● Cross : Material - Polyethylene Construction - Round Material - PVC Diameter – 5.8 (+/- 0.20mm) Normal thickness – 0.58 (+/- 0.03mm) ● Electrical Properties : Ins. Resistance – Max. 78.8 mega ohms-km at 20oC Dielectric Test – Minimum AC 1.5KV Temp Rating - 50oC Voltage Rating – 30V
