Epson Workforce DS-1630 Flatbed Scanner
- Optical Resolution: 1200 dpi (Flatbed)
- Maximum Scan Size: 8.5 x 120″
- Minimum Scan Size: 3.5 x 5″
- Flatbed Scan Area: 8.5 x 11.7″
- Scan Speed: 25 ppm / 10 ipm
- 50-Sheet Duplexing ADF
- Epson Image Processing Technology
- Epson Document Capture; ABBYY FineReader
- USB 3.0 Connectivity
₹22,499.00
Epson DS-1630 Flatbed Color Document Scanner
Clutter-free Workplace
Not only does the compact DS-1630 occupy little desk space, its built-in AC adapter ensures you do no t have to deal with messy cables. This allows you to enjoy an orderly workplace at all times.
Convenient Scanning
The DS-1630 reduces the need to manually replace documents with a high ADF capacity of up to 50 pages. Efficiency is achieved with scan speeds of up to 25ppm in simplex and 10ipm in automatic duplex (3-pass) modes. What’s more, you can scan odd-sized documents easily.
Optional Network Connectivity

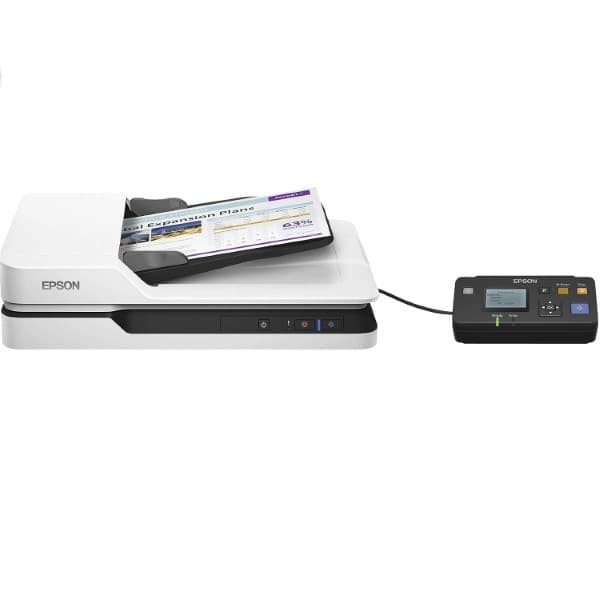

With the optional Network Interface Unit, the DS-1630 can be shared amongst a work group via Ethernet connectivity. Scanned images can be easily pushed to the desired PC within the network based on user’s pre-defined scan settings on the Document Capture Pro software.
Ease of Use

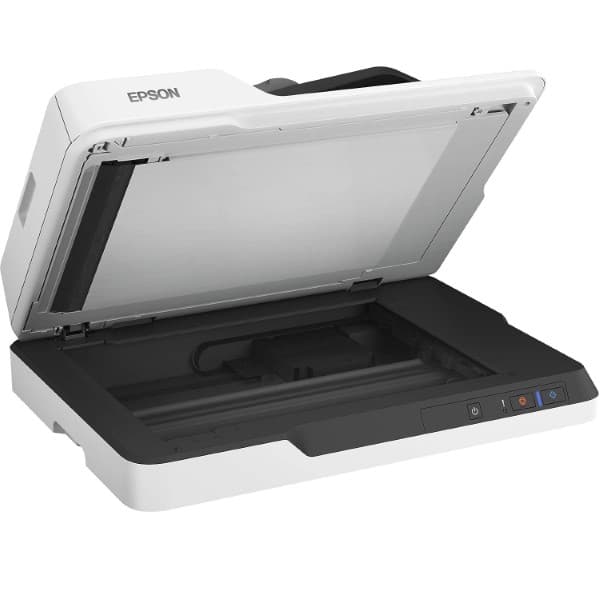

A free stop hinge allows the lid to be easily opened and stopped at an angle between 15 to 70 degrees. This increases usability, even with one hand.
Epson Scan 2 Features Text Enhancement
Improves text recognition when scanning text documents, whether in colour, grayscale or black-and-white. Removes background for better clarity, which is especially useful for double-sided printed documents.
Auto Area Segmentation
This function allows separate scanning of both image and text in a document. It also automatically detects and scans text in black-and-white mode and images in halftone, giving clear text quality while preserving image details.
Document Skew Correction
Automatically adjusts and straightens scanned images.
Colour Enhancement & Colour Dropout
Remove or enhance the visibility of ink signatures such as “Confidential” and “Urgent” stamps. Users can pick one of the preset colours (red, green, blue, pink, purple, yellow, orange, or all colours except black), or use the customised settings to dropout or enhance up to 5 colours of your choice with a single scan.
PDF Features for Added Convenience
The built-in OCR enables searchable PDF files. Secure your PDF files by setting a password to prevent unauthorised viewing, editing or printing.
Document Management Document Capture Software*
Epson document scanners come bundled with document management software that allows you to easily manage your scanned files.
Easily scan, view, edit, save and transfer scanned documents. The software optically recognises barcodes, characters and blank pages in scanned documents to separate them into different folders. It allows youto create up to 30 customised job settings, making multiple scan jobs a breeze.
The software also provides quick access to post-scan destinations, including scan-to-print, email, Windows® Public Folder, FTP, Web Folder, and Scan-to-Cloud services such as Microsoft® SharePoint Server, Evernote®, Google® Drive™ and SugarSync®.
* Document Capture Pro (Windows), Document Capture (Mac OS X)
Document Capture Pro Server
Document Capture Pro Server helps to centralise your scanning and manage your fleet of scanners without the need to install drivers on individual computers.
Scanner
| Scanner Type | Flatbed Scanner with Automatic Document Feeder (ADF) |
| Scanner Maximum Resolution | Flatbed 1200 dpi (Optical) 1200 x 1200 dpi (Hardware) ADF 600 dpi (Optical) 600 dpi (Hardware) |
| Scan Modes | Color, Grayscale, Monochrome |
| Scanner Color Depth | 24-Bit (External) 30-Bit (Internal) |
| Grayscale Depth | 8-Bit (Internal) |
| Light Source | LED |
| Image Sensor | 1 x Contact Image Sensor (CIS) |
| Duplex Scanning | Yes |
| Scan Speed | Simplex Speed 25 ppm in Color/Grayscale Duplex Speed 10 ipm in Color/Grayscale |
| Automatic Image Corrections | Yes |
Scanner Media Handling
| Scan Sizes | Flatbed Maximum: 8.5 x 11.7" / 21.6 x 29.7 cm ADF Maximum: 8.5 x 14" / 21.6 x 35.6 cm |
| Paper Capacity | ADF: 50 x Sheet |
| Media Weight | ADF: 50 to 120 gsm |
| Daily Duty Cycle | 1500 Scans |
Connectivity
| Inputs/Outputs | Unspecified USB 3.0 / 3.1/3.2 Gen 1, RJ45 |
| Scanner Drivers | TWAIN, ISIS |
| OS Compatibility | Windows macOS *As of February, 2021: Check with manufacturer for the most up-to-date compatibility |
Environmental
| Operating Temperature | 50 to 95°F / 10 to 35°C |
| Operating Humidity | 20 to 80% |
General
| Power Source | AC Adapter (Included) |
| Battery | None |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 11 W (Maximum) 5.8 W (Ready) 0.8 W (Sleep) 0.15 W (Off) |
| Certifications | ENERGY STAR, RoHS *as per Manufacturer |
| Dimensions (W x H x D) | 12.5 x 4.8 x 11.7" / 31.8 x 12.2 x 29.7 cm |
| Weight | 4.1 kg |
