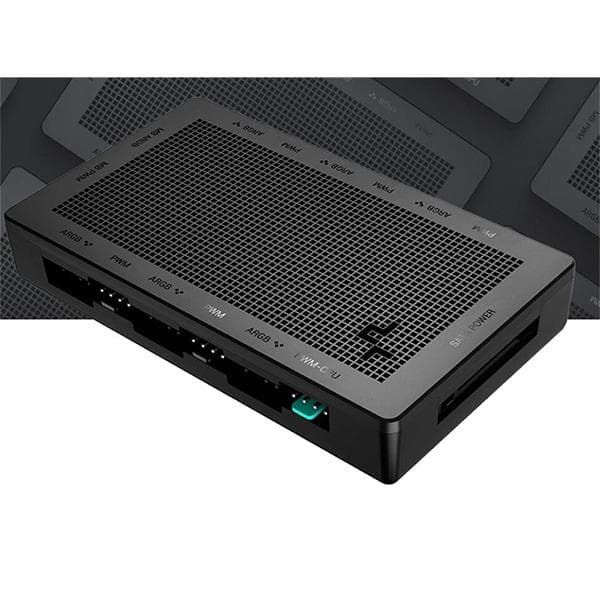

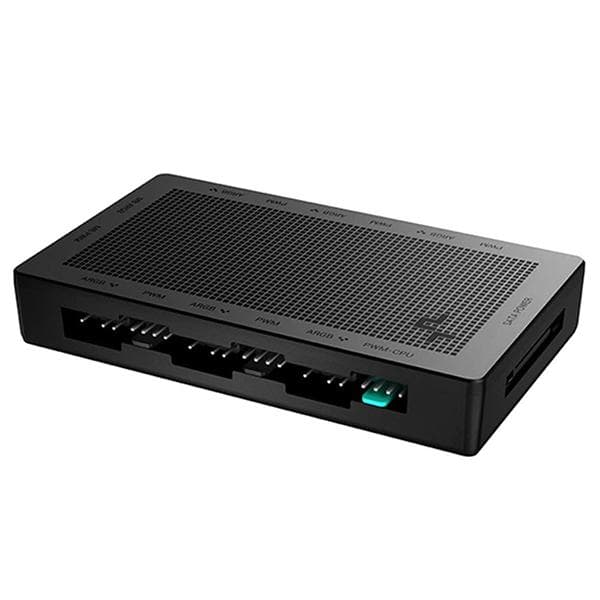

DeepCool SC790 ARGB and PWM HUB
- 【6 group interfaces meet any design in your host】Up to 6 sets of ARGB-3Pin & PWM-4 Pin headers to meet your needs of connecting more devices.
- 【Reasonable design and wide application】Applicable to all standards on the market 5V 3Pin ARGB light interface and standard 4Pin PWM interface

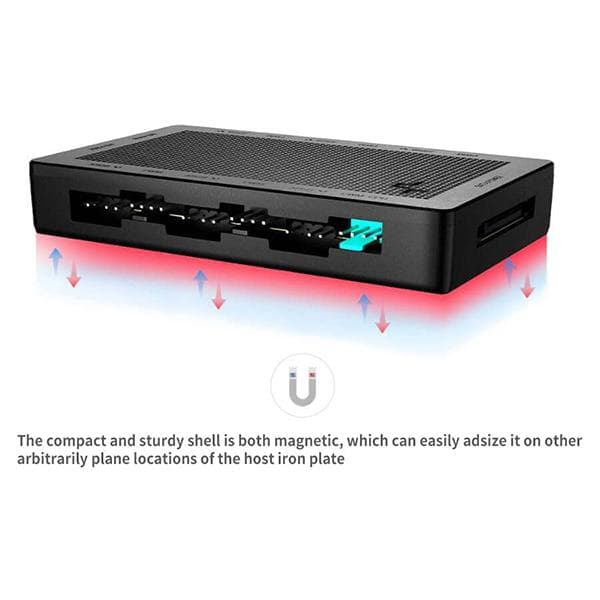

- 【Magnet adsorption, easy to install】 This compact HUB easily fits inside your case. It can attach to any metallic surface with built-in magnets.
- 【Light and small, save space】 It will save your space effectively and make the cable management easier, and make the inside case neat and tidy.SATA
- 【Safe, efficient stable output】Even with full loaded, it still can maintain stable output.
... people are viewing this right now
Original price was: ₹2,099.00.₹1,799.00Current price is: ₹1,799.00.
Out of stock
Email when stock available
DeepCool SC790 ARGB and PWM HUB
DeepCool SC790 12Port ARGB Hub
- 【6 group interfaces meet any design in your host】Up to 6 sets of ARGB-3Pin & PWM-4 Pin headers to meet your needs of connecting more devices.
- 【Reasonable design and wide application】Applicable to all standards on the market 5V 3Pin ARGB light interface and standard 4Pin PWM interface
- 【Magnet adsorption, easy to install】 This compact HUB easily fits inside your case. It can attach to any metallic surface with built-in magnets.
- 【Light and small, save space】 It will save your space effectively and make the cable management easier, and make the inside case neat and tidy.SATA
- 【Safe, efficient stable output】Even with full loaded, it still can maintain stable output.
The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.
FAN Ports & RGB Ports
ARGB-3Pin & PWM-4 Pin
6 Ports x 4Pin PWM
6 Ports x 3Pin Addressable RGB
| Model Number | R-SC790-BKNSNN-G |
| Product Dimension | 102×60×17 mm |
| Product Color | Black |
| Net Weight | 69g |
| Port Type | ARGB-3Pin & PWM-4 Pin |
| Fan Ports | 6 Ports x 4Pin PWM |
| Length of Fan Connector cable | 24AWG 500 mm |
| Fan Rated Voltage | 12V DC |
| Fan Rated Current | 2.0A(1Port) / Total 4.5A(6Ports) |
| RGB Ports | 6 Ports x 3Pin Addressable RGB |
| Length of ARGB Connector cable | 24 AWG 538mm (Asus Asrock MSI) +50mm (Gigabyte) |
| RGB Rated Voltage | 5V DC |
| RGB Safety Current | 2.0A(1Port) / Total 4.5A(6Ports) |
| Power Connector | SATA Power |
| Power Safety Current | 4.5A Max |
| Mounting Method | Magnetic |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| Warranty | |
| EAN / UPC Code |
6 reviews for DeepCool SC790 ARGB and PWM HUB
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
1-5 of 6 reviews
Add a review
Currently, we are not accepting new reviews
Q & A
Its this conect 4 pin 12v port in motherboard?
THE DEEPCOOL SC790 ARGB AND PWM HUB IS A DEVICE THAT LETS YOU CONTROL THE SPEED AND LIGHTING OF UP TO 6 PWM ARGB FANS THROUGH ONE HUB. IT CONNECTS TO YOUR MOTHERBOARD USING A SINGLE 4-PIN PWM CONNECTOR, WHICH SUPPLIES POWER AND CONTROL SIGNALS, SO NO EXTRA 4-PIN 12V CONNECTION IS NEEDED.
(0)
(0)
Ask a question
Your question will be answered by a store representative or other customers.
Thank you for the question!
Your question has been received and will be answered soon. Please do not submit the same question again.
Error
An error occurred when saving your question. Please report it to the website administrator. Additional information:
Add an answer
Thank you for the answer!
Your answer has been received and will be published soon. Please do not submit the same answer again.
Error
An error occurred when saving your answer. Please report it to the website administrator. Additional information:
