Deepcool DQ750-M-V2L 80 Plus Gold SMPS
- Compliant Intel ATX12V v2.31 & EPS 2.92
- 80 PLUS® GOLD certified – Up to 87~90% efficiency (20~100% loading)
- High quality Japanese capacitors can obtain excellent reliability and long service life
- Patented 120mm FDB Bearing fan with double-layer fan-blade, temperature control function, enjoys excellent performance & super low noise
- Full modular design, with longer flat cable, exellent for cable management and increases the cooling capability of system
... people are viewing this right now
Original price was: ₹13,499.00.₹7,250.00Current price is: ₹7,250.00.
Out of stock
Email when stock available

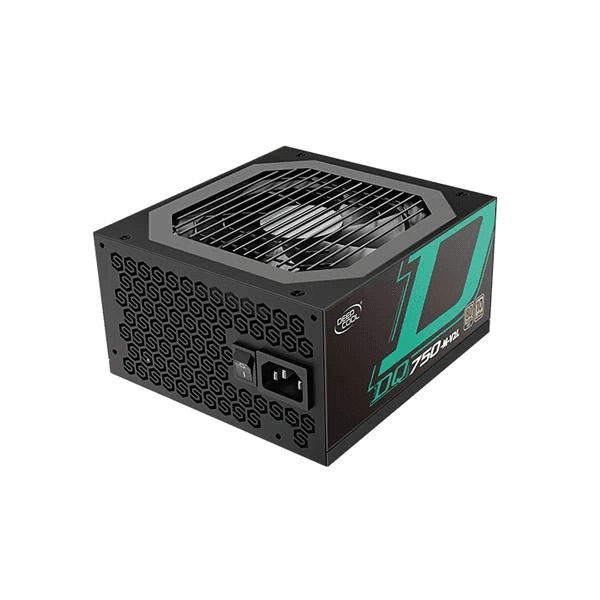

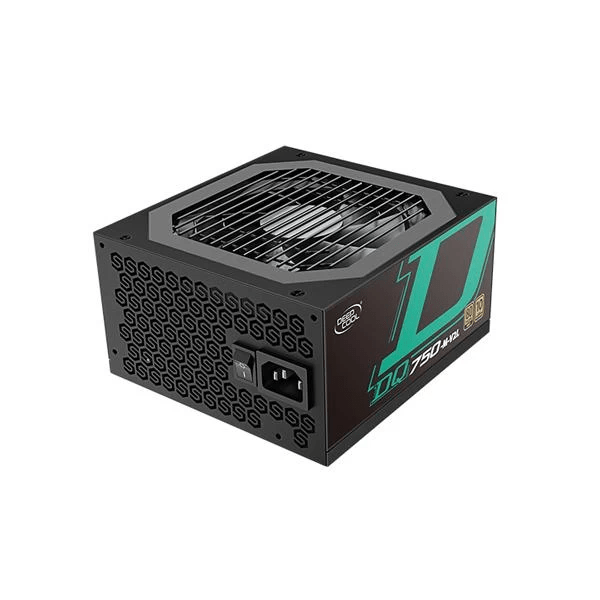

Deepcool DQ750-M-V2L 80 Plus Gold SMPS
Features
- Deepcool 80 PLUS® GOLD certified – Up to 91.2% efficiency
- 100% High quality Japanese capacitors
- Full bridge PFC + LLC Resonant converter
- Fully modular with flat cable design
- CircuitShield™ — OVP / UVP / SCP / OPP / OTP
The DQ750-M-V2L WH fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L WH offers better reliability for your PC system.
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L WH delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

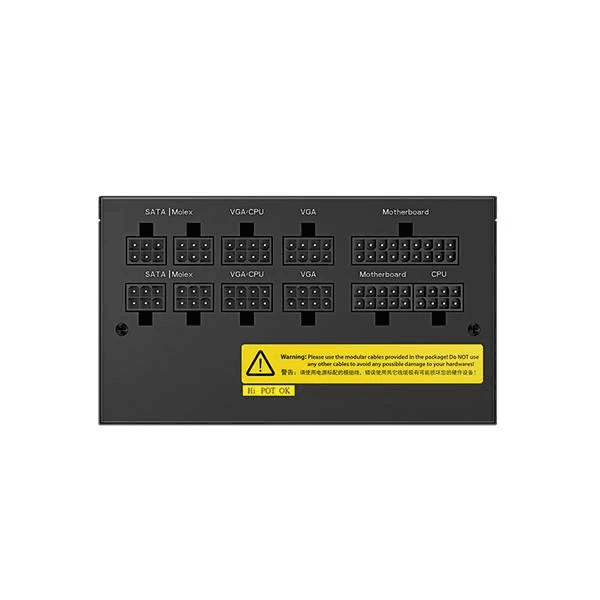

Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
| Model | DQ750-M-V2L |
| Type | ATX 12V V2.31 |
| Certifications | 80PLUS GOLD |
| Dimension | 150×160×86mm (W × L × H) |
| Output Capacity | 750W |
| Input Voltage | 100-240V |
| Input Current | 10.0A |
| Input Frequency Range | 47-63Hz |
| Fan Size | 120mm |
| PFC | Active |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms (80% Loading) |
| Efficiency | >90% Under Typical Load (50% Loading) |
| Standby Efficiency | ErP Lot 3 2014 |
| Protection | OVP/UVP/OCP/SCP/OPP/OTP |
| Operation Temperature | 0-40°C |
| Regulatory | CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs/UKCA |
| MTBF | 100,000 Hours |
| Weight | 3 kg |
|---|---|
| Dimensions | 30 × 22 × 12 cm |
| Brands | |
| Product Type | |
| Modular | |
| Wattage | |
| PSU Certification | |
| EAN / UPC Code | |
| Warranty |
