We're all about the things that make building a PC such a rewarding experience. The sense of achievement. The joy of making and creating something uniquely yours in form and function and, of course, the thrill of bringing your creation to life without melting your components.

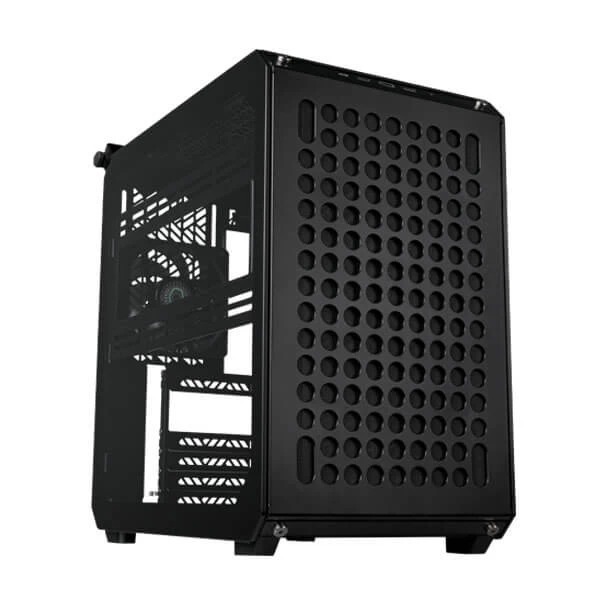

The QUBE 500 is a highly customizable case from Cooler Master that sets your creativity and personal style free. It comes disassembled, designed to offer a fun, easy, and satisfying build experience that starts from scratch. Plus, The Qube 500's innovative packaging greatly reduces its transportation carbon footprint and overall environmental costs.
![]() | ![]() | ![]() | ![]() |
|---|---|---|---|
DIY For EveryoneEmbrace an efficient and environmentally friendly building experience that is fun and flexible, and suitable for both beginners and experienced builders. | Highly CustomizableExperience an unparalleled level of customizability that empowers you to express your creativity fully. | Fully ModularEnjoy the convenience of modular panels that simplify and streamline the case prep process. Each panel is individually removable, making maintenance a breeze. | Full-Sized Specs, Pint-Sized BodyDespite its compact 33L size, the spacious interior offers abundant room from Mini-ITX up to E-ATX, allowing for easy installation and future expansion. |
![]() | ![]() | ![]() | ![]() |
|---|---|---|---|
Components ClearanceThis case supports CPU coolers with a maximum height of 164mm, graphics cards up to 365mm long, and power supplies up to 332mm long. | Versatile CoolingStay ahead of the game with versatile mounting options. Fit a 280mm liquid cooler and up to 9 fans to ensure optimal performance. | USB 3.2 Gen 2x2 (20Gb/s)Built-in into the I/O panel is USB 3.2 Gen 2x2 Type C port for up to 20Gb/s data speeds. | Edge-To-Edge TemperedThe thick tempered glass side panel displays your meticulously crafted build with pride. |
Cooler Master
4719512140383
E-ATX
Normal
280mm
Transparent
2 Year
Black
Q500-KGNN-S01
N/A
N/A
| Product Name | QUBE 500 |
| Product Number | Q500-KGNN-S01 |
| Exterior Color | Black |
| Materials | Exterior :Steel, Plastic, TG |
| Left Side Panel :Grey TG Steel | |
| Dimensions (L x W x H) | Incl. Protrusions :406 x 231 x 415mm |
| excl. Protrusions :380 x 231 x 381mm | |
| Volume (Liters Excl. Protrusions) | 33.44 L |
| Motherboard Support | ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU) |
| Expansion Slots | 7 |
| Drive Bays | 3.5” HDD :Max. 4x 3.5” HDD |
| 2.5” SSD:Max. 3x 2.5” SSD | |
| I/O Panel | USB Ports:2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C |
| Audio In / Out: 3.5mm Combo x 1 | |
| Pre-installed Fan(s) | Rear:120mm x 1 (1800 rpm) |
| SF Black PWM | |
| Fan Support | Front:120/140mm x 1 (x2 if PSU is mounted in bottom) |
| Top: 120/140mm x 2 | |
| Rear: 120mm x 1 | |
| Bottom :120/140mm x 2 | |
| Left side:120/140mm x 2 | |
| Radiator Support | Front:120/140 mm (240/280mm w/ PSU in bottom) |
| Top : 120/140/240/280mm (280mm can be used within 53mm thickness) | |
| Rear: 120mm | |
| Bottom:120/140/240/280mm | |
| Left side:120/140/240/280mm | |
| Clearances | CPU Cooler:164mm~172mm (Remove the water cooling bracket) |
| Power Supply(length):173mm to first GPU slot, 216 maximum space (w/o cable management space) | |
| 332mm space mounted in bottom (w/o cable management space) | |
| Graphics Card:365mm | |
| Cable Routing space | Behind MB Tray:29~32mm |
| Handle | Black x 1 |
| Gem Mini | Black x 1 |
| Dust Filters | Front, Top, Bottom, Right side |
| Power Supply Support | SFX / SFX-L / ATX |
| Warranty | 2 Years |
