SKU: MPE-A501-AFCAG-3IN
users viewing this item right now

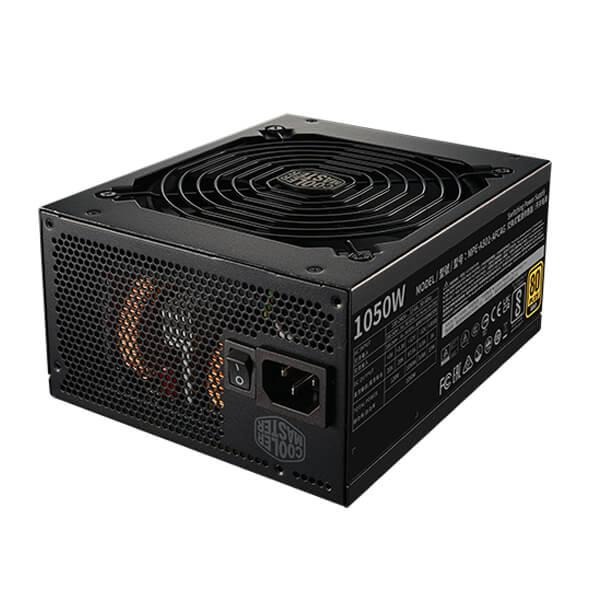

MWE Gold 1050/1250 -V2 brings optimal performance for a classic configuration. The MWE Gold 1050/1250 -V2 power supply features virtue of 80 PLUS Gold efficiency, fully modular cabling, and a 140mm silent fan, fully support ATX3.0 with 600W 12VHPWR connectors. Together, Cooler Master provides the power supply complete with high efficiency and reliability to improve your PC experience.

Cooler Master took the initiative and continuously developing our first ATX3.0 Power Supply lineup. Compliant with ATX3.0 standard and 12VHPWR connectors, the MWE Gold 1050/1250 - V2 ATX3.0 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 - V2 ATX3.0 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.
The MWE Gold 1050/1250 - V2 ATX3.0 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing(FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System(STCM), the fan will not spin until at 40% of rated output power to reduce noise. *The fan curve is tested under ambient temperature of 25 degrees Celsius and core temperature is related to load.
The MWE Gold 1050/1250 - V2 ATX3.0 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.
The fully modular version of the MWE Gold 1050/1250 - V2 ATX3.0 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.
| Category | Specifications |
|---|---|
| Model | MPE-A501-AFCAG-3GIN |
| Series | MWE Gold Series |
| ATX Version | ATX Rev. 3.0 |
| PFC | Active PFC |
| Input Voltage | 100–240V |
| Input Current | 13–6A |
| Input Frequency | 50–60Hz |
| Dimensions (L × W × H) | 180 × 150 × 86 mm |
| Fan Size | 140 mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0–50°C |
| Power Good Signal | 100–150 ms |
| Hold Up Time | ≥16 ms at 100% Load |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, OCP, UVP, OTP, Inrush Protection |
| Regulatory Certifications | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS |
| ATX 24-Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8-Pin Connectors | 1 |
| SATA Connectors | 12 |
| Peripheral 4-Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 3 |
| 12VHPWR Connector | 1 |
| Modular | Full Modular |
| Wattage Category | Above 750W |
| Efficiency Grade | Gold |
