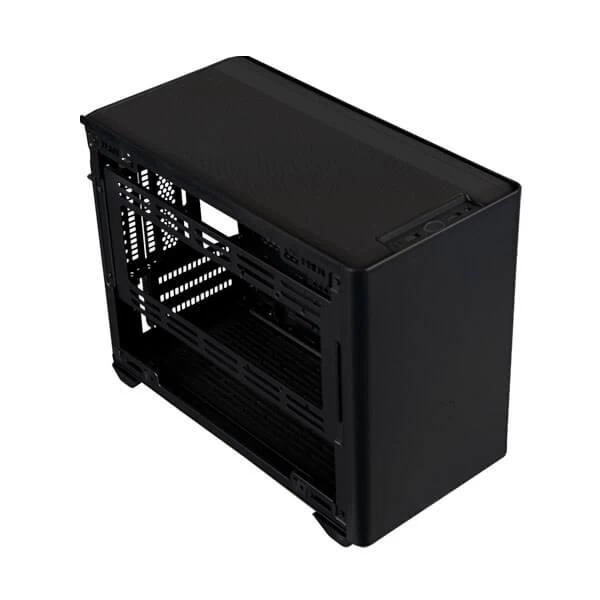

Cooler Master MasterBox NR200P Cabinet (Black)
- Limited Size, Unlimited Options
- Unrestricted Cooling Potential
- Triple-slot GPU support and Included Vertical Riser Cable
- Easy, Tool-free access
- 360 Degree Accessibility
₹7,699.00
Make It Yours.
We’re all about the things that make building a PC such a rewarding experience. The sense of achievement. The joy of making and creating something uniquely yours in form and function and, of course, the thrill of bringing your creation to life without melting your components.
NR200P Black
Big features, Small Size
The Cooler Master NR200P is a small form factor chassis that combines space-saving efficiency with cooling capabilities normally found on much larger ATX chassis. 280mm radiator support and 7 possible fan mounting provide a multitude of cooling options whether using water or air. The choice of tempered glass side panel or vented panel alongside the inclusion of a PCI Riser cable makes the NR200P one of the most flexible small form factor chassis out there.
- Tempered Glass or Vented Panel
- Versatile Cooling
- Triple-Slot GPU
- Custom-Sized Riser Cable
- 360 Degree Accessibility
- SickleFlow PWM Fan
- High Quality Materials
- L: 376mm W: 185mm H: 292mm Incl. Protrusions
|
|
|
|
|
|---|---|---|---|
Tempered or Vented PanelThe option of a vented steel panel for unobstructed airflow, or a crystal-clear tempered glass side panel to showcase the beauty of your computing beast. |
Versatile CoolingStay ahead of the game with versatile mounting options. Take advantage of fitting a 280mm liquid cooler and up to 7 fans to ensure optimal performance. |
Components ClearanceThis case supports CPU coolers with a maximum height of 165mm, graphics cards up to 330mm in length, and SFX power supplies with a length of up to 130mm. |
Mini-ITX MotherboardCompatible with Mini-ITX and Mini DTX motherboards, the SFX PSU can be front-mounted to provide extra motherboard clearance, with a maximum space of 244 x 226 mm. |
|
|
|
|
|
|---|---|---|---|
Triple-Slot GPUIt supports triple-slot GPUs with a maximum length of 330mm and a width of 156mm, making it suitable for a large high-end graphics cards. |
Vertical MountingAn included custom-sized riser cable allows for vertical mounting of a graphics card to showcase it, or for radiator mounting at the bottom of the chassis. |
360 Degree AccessibilityEach panel and frame part is intentionally designed for effortless disassembly, facilitating 360-degree access for working on components. |
SickleFlow PWM FanFeaturing a newly optimized curve blade design, that strikes the perfect balance between airflow and static pressure, effectively dissipating heat while maintaining remarkable silence. |
| Model Number | MCB-NR200P-KGNN-S00 |
| Series | MasterBox Series |
| Size | Mini ITX |
| Available Color(s) | Black |
| Materials | Steel, Plastic, Mesh, Tempered Glass |
| Dimensions (L x W x H) | 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions |
| Volume (exlc. Protrusions) | 18.25L |
| Motherboard Support | Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H) |
| Expansion Slots | 3 |
| 5.25" Drive Bays | 0 |
| 3.5" Drive Bays | 1 (Max. 2) |
| 2.5" / 3.5" Drive Bays (combo) | 1 |
| 2.5" Drive Bays | 2 (Max. 3) |
| I/O Panel | 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic) |
| Pre-installed Fans - Top | 2x 120mm 650-1800RPM PWM (SickleFlow) |
| Pre-installed Fans - Front | N/A |
| Pre-installed Fans - Rear | N/A |
| Pre-installed Fans - Bottom | N/A |
| Fan Support - Top | 2x 120mm |
| Fan Support - Rear | 1x 92mm |
| Fan Support - Bottom | 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots) |
| Fan Support - Side | 2x 120/140mm |
| Radiator Support - Top | N/A |
| Radiator Support - Rear | 92mm (not compatible with vertical GPU installation) |
| Radiator Support - Bottom | 120mm, 240mm, (recommended for custom loops only) |
| Radiator Support - Side | 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation) |
| Clearance - CPU Cooler | 76mm (GPU in vertical position), 153mm (tempered glass side panel) |
| Clearance - PSU | 130mm |
| Clearance - GFX | L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot) |
| Dust Filters | Top, Bottom, Left side, Right side |
| Power Supply Support | SFX, SFX-L |
| Accessories | 1x PCIe 3.0 x16 riser cable |
| Warranty | 2 Years |
| Note | Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position, This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation. ***Features, Price and Specifications are subject to change without notice. |
| Product Type | |
|---|---|
| color | |
| Brands | |
| Case Form Factor | |
| Motherboard Size | |
| Radiator Size | |
| Max Fan Support | |
| Warranty | |
| EAN / UPC Code |
