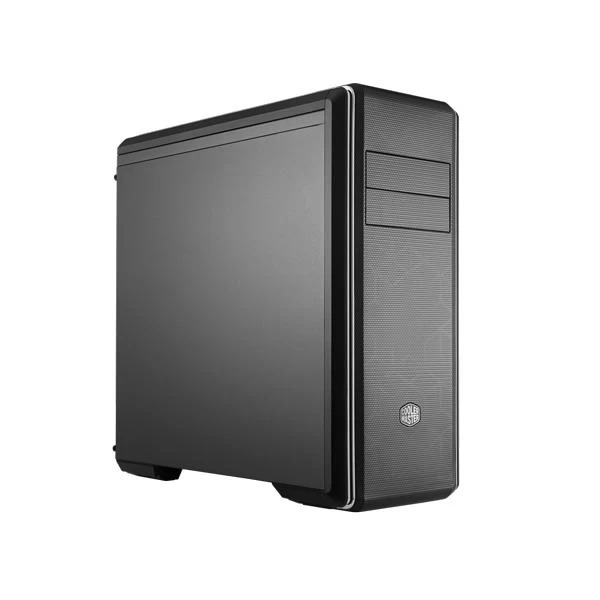

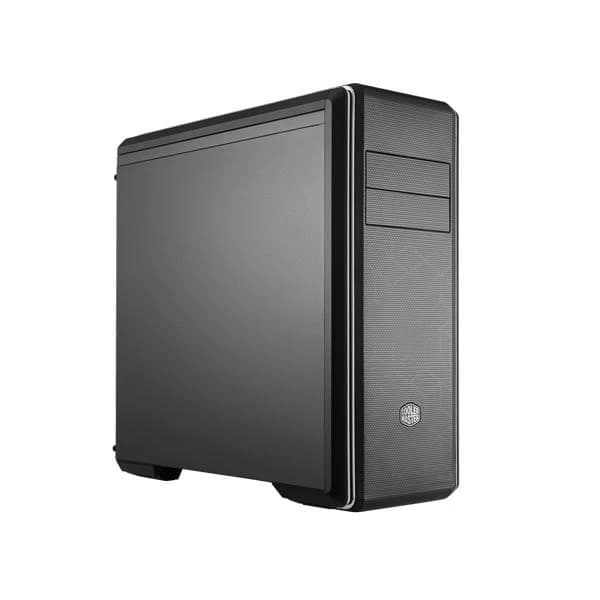

Cooler Master MasterBox CM694 Cabinet (Black)
- Curved Mesh
- Modular Drive Cages
- Graphics Card Stabilizer
- Rich Connectivity (I/O Panel)
- Delivery & Return
🚚 Shipping and Risk:
- Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
- Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
- Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
- Loss or damage occured during shipping is Computech Responsibility.
- You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
- You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package
♻️ Replacement and Refund Policy:
- We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
- For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
- If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
- Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
- Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
- All the accessories which were delivered along with the product should be returned in the same way and along with the product.
- If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
₹15,299.00 ₹10,889.00
Cooler Master Masterbox Cm694 Mid Tower Eatx Computer Cabinet Mesh Front Modular HDD Cages with 3 120Mm Fans Mcb-Cm694-Kn5N-S00, Black
Feature
- Mid Tower ( 493mm x 224mm x 506mm) Cabinet using Steel and Plastic
- 7 PCI Slots, 3 Drive Cages (Total of 6 HDDs), 8 SSDs (2 + 6 in Cages)
- 2 x USB 3.0 ports, 1 x USB 3.1 (Gen 2) Type-C port, and 1 x 4 pole Headset jack
- 2 x 120mm Fans Pre-installed at front, 1 x 120mm fan Pre-installed at rear, 360 Radiator support at top
- Graphics Card Clearance of 280mm (with stabilizer + drive cage), 350mm with stabilizer, CPU Cooler Clearance of 171mm
- Warranty: 1 Year from Date of Purchase (Invoice Copy required)
CURVED MESH
The top and front panel are entirely mesh, featuring the iconic CM690 curve and Cooler Master‘s signature rhombus pattern. The fine mesh on the CM694 achieves optimal airflow while also filtering out dust with a single layer.

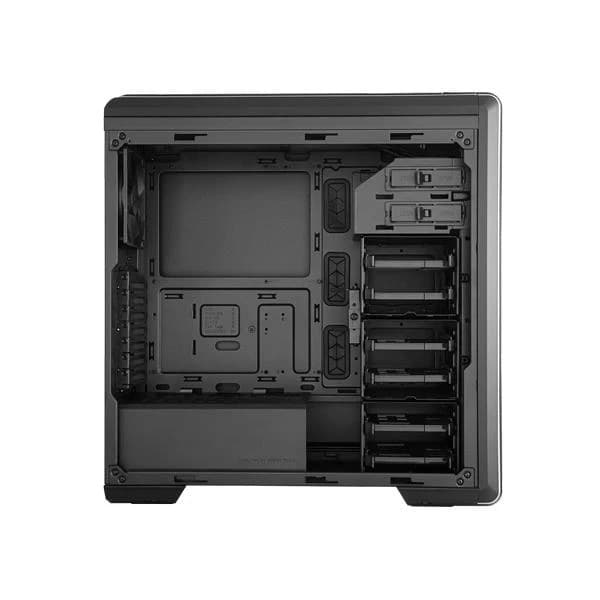

MODULAR DRIVE CAGES
3 Drive Cages can be individually added, removed, or repositioned to make room for longer graphics cards and/or top & front radiators.
GRAPHICS CARD STABILIZER
Graphics cards installed within the case are reinforced by an arm, ensuring the safe delivery and transportation of systems.
RICH CONNECTIVITY (I/O PANEL)
The dust-proof I/O Panel features rubber shields, 2 x USB 3.0 ports, a USB 3.1 (Gen 2) Type-C port, and a 4 pole headset jack.
COOLING SUPPORT
RADIATORS
Top: | 120 / 140 / 240 / 280 / 360mm (mount fans above bracket for maximum compatibility) |
Front: | 120* / 140* / 240* / 280** / 360mm* *remove 2 out of 3 drive cage **remove 2 out of 3 drive cages & ODD |
Rear: | 120mm |
COOLING SUPPORT
FANS
Top: | 120mm x 3 / 140mm x 2 |
Front: | 120mm x 3 / 140mm x 2 (without ODD) 120mm x 2 / 140mm x 2 (with ODD) |
Rear: | 120mm x 1 |
MOTHERBOARD SUPPORT
Mini-ITX
Micro-ATX
ATX
E-ATX *
*E-ATX up to 12″ x 10.7″ impacts cable management options
MASSIVE STORAGE SUPPORT
Simultaneous support for 6 x 3.5” HDDs
and 8 x 2.5” SSDs ensure substantial
storage capabilities.
Model Number | MCB-CM694-KN5N-S00 |
Series | MasterBox Series |
Size | Mid Tower |
Materials | Steel, Plastic, Mesh |
Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX |
Expansion Slots | 7 |
5.25" Drive Bays | 2 |
2.5" / 3.5" Drive Bays (combo) | 6 (3x drive cages) |
2.5" Drive Bays | 8 (2 + 6 combo) |
I/O Panel | 2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic) |
Pre-installed Fans - Front | 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector) |
Pre-installed Fans - Rear | 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector) |
Fan Support - Front | 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD) |
Fan Support - Top | 3x 120mm, 2x 140mm |
Fan Support - Rear | 1x 120mm |
Radiator Support - Front | 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage) |
Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility) |
Radiator Support - Rear | 120mm |
Clearance - CPU Cooler | 171mm |
Clearance - GFX | 410mm/16.1", 350mm (with stabilizer), 280mm (with stabilizer + drive cage) |
Clearance - PSU | 276mm, 160mm (drive cage rear position) |
Power Supply Support | Bottom mount, ATX PS2 |
Dust Filters | Top, Front, Bottom |
Cable Routing | 27-29mm |
Warranty | 2 Years |
Note | ***Features,Price and Specifications are subject to change without notice. |
Weight | 2 kg |
---|---|
Product Type | |
color | |
Brands | |
Motherboard Size | |
Radiator Size | |
Side Panel | |
Warranty | |
EAN / UPC Code |
