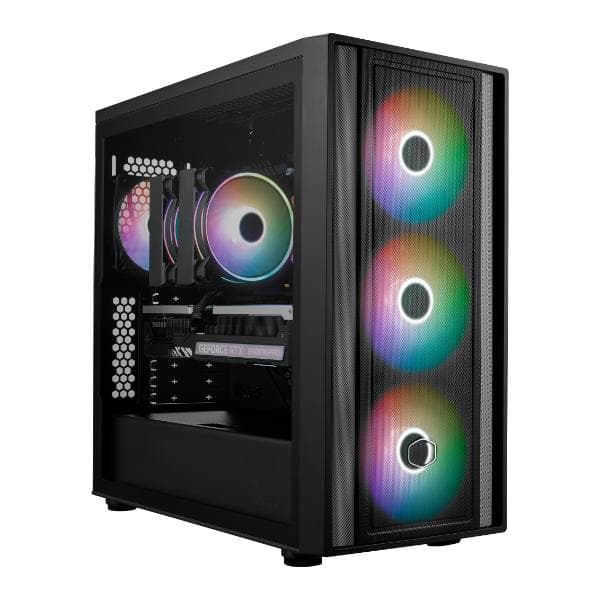

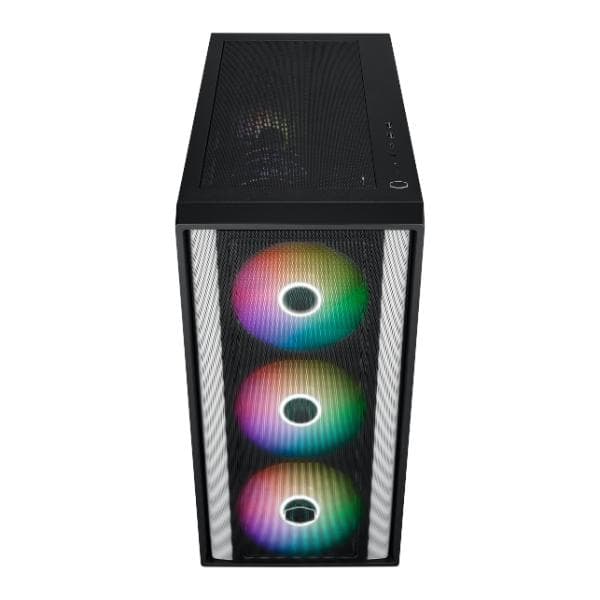

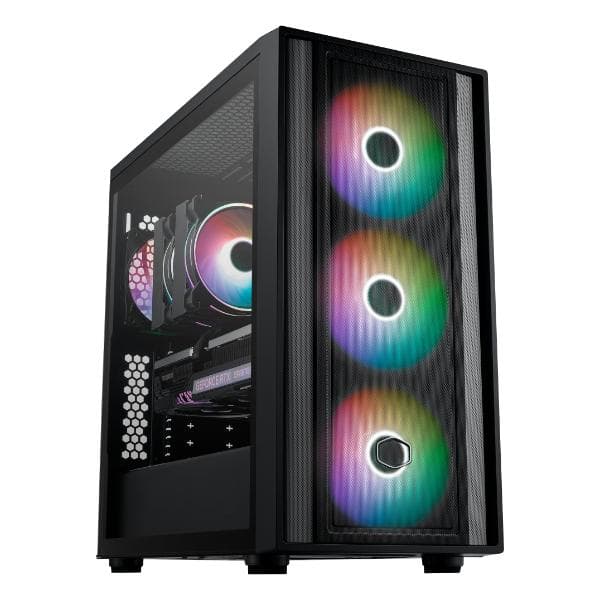

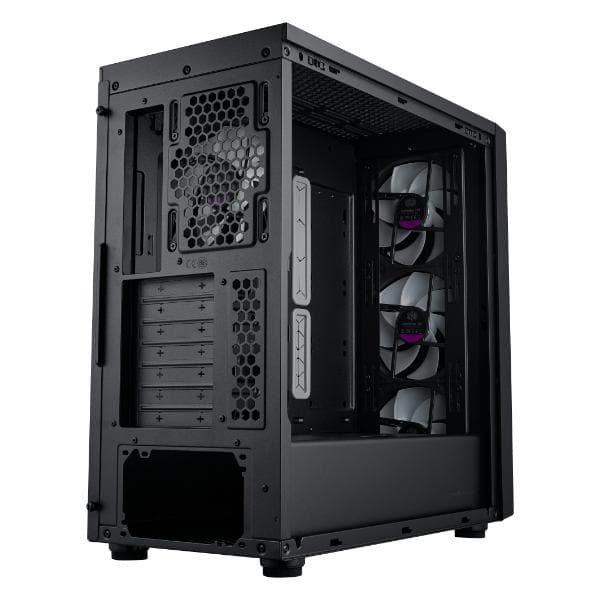

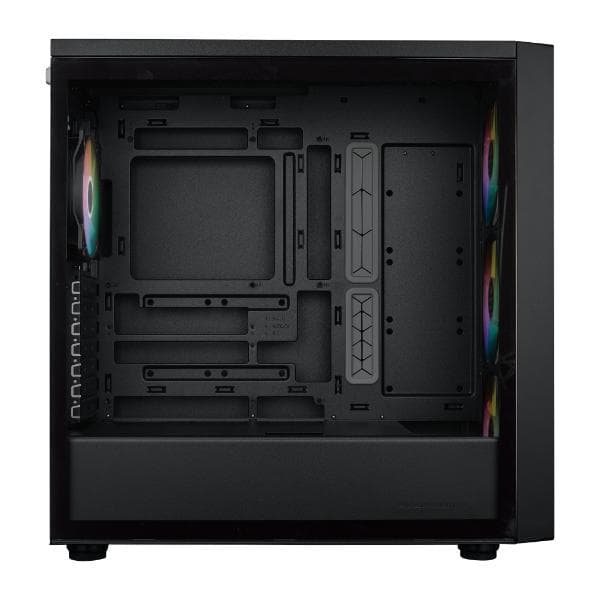

The Cooler Master Masterbox 600 aims to bring high-level performance to every segment of the PC building community. We believe all users should be able to achieve the greatest heights of performance, so the Masterbox 600 is designed to deliver premium features and performance to the broadest user base possible. The MasterBox 600 is prepared with space for a 420mm radiator and a 410mm GPU, back-connector motherboard support, which is the new standard for modern ATX cases.
Support back-connected motherboard to frees up space in the front of the case and providing improved cable management space up to 33~35mm behind MB tray.
Support for up to a 410mm graphics card, a 170mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
Supports up to 2x3.5" HDD storage and 6x 2.5" SSD, the HDD cage is completely removable for improved access during assembly and system upgrades.
Support for up to seven 120mm fans and 360mm radiators on the top and 420mm on front panel that can effectively cool down even the most powerful CPUs.
3x 140mm Sickleflow fans, and a CF120 fan provide exceptional cooling power and eye-catching aesthetics.
| Product Name | MasterBox 600 |
| Product Number | MB600-KGNN-S00 |
| Exterior Color | Black |
| Materials | |
| Exterior | Steel, Plastic |
| Side Panel | Tempered Glass |
| Dimensions | |
| Incl. Protrusions | 474mm x 230mm x 481mm |
| (L x W x H) | |
| Excl. Protrusions | 465mm x 230mm x 465mm |
| Volume (Liters Incl. Protrusions) | 49.73 L |
| Motherboard Support | ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12″x10.9″/ 30.5cmx27.7cm motherboards, may impact cable management) |
| Expansion Slots | 7 |
| Drive Bays | |
| 5.25“ ODD | N/A |
| 3.5” HDD | 2 |
| 2.5” SSD | 2 (Max.6) |
| I/O Panel | |
| USB Ports | 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2x2 Type C |
| Audio In / Out | 1x 3.5mm Combo |
| Included Accessories | ARGB Fans Hub |
| Pre-installed Fan(s) | |
| Front | 3x 140mm SickleFlow140 ARGB PWM (650~1800 rpm) |
| Rear | 1x 120mm CF120 ARGB (650~1200 rpm) |
| Fan Support | |
| Front | 3x 120 / 3x 140mm |
| Top | 3x 120mm / 2x 140mm |
| Rear | 1x 120mm |
| Radiator Support | |
| Front | 120/140/240/280/360/420mm (Limit: 457*140*27mm) |
| Top | 120/140/240/280/360mm |
| Rear | 120mm |
| Clearances | |
| CPU Cooler | 170 mm |
| Power Supply | 170mm, 210mm (w/o HDD Cage) |
| Graphics Card | 360mm, 410mm (w/o front radiator) |
| Cable Routing | |
| Behind MB Tray | 33~35 mm |
| Dust Filters | Top/Bottom |
| Power Supply Support | ATX |
| Warranty | 2 years |
