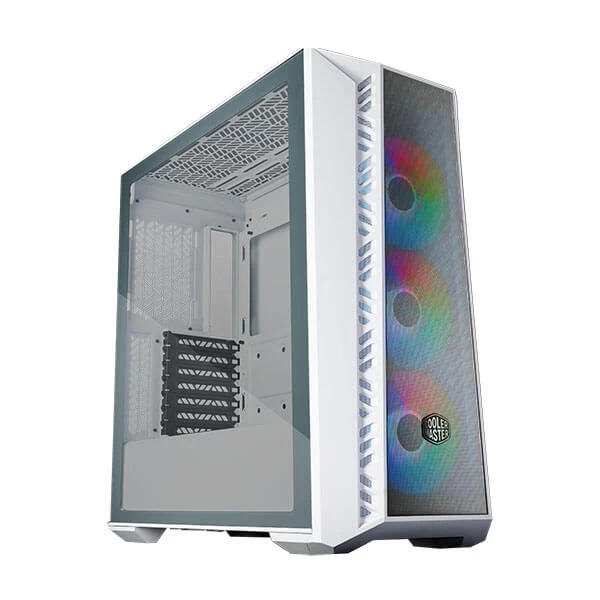

Cooler Master MasterBox MB520 Mesh ARGB (E-ATX) Mid Tower Cabinet (White)
- FineMesh Performance Front Panel
- Three CF120 ARGB Fans Included
- ARGB Controller Included
- Removable Top Panel
- Screwless & Tool-Free TG Side Panel
- Removable HDD cage
₹7,699.00
Cooler Master MB520 Mesh Computer Case – Black | 360mm Radiator Support | 3 x 120mm ARGB Fans Pre-Installed | Type C Connector | Removable Top Panel | High Airflow Cabinet | PWM & ARGB Hub Included
Feature
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
AVAILABLE IN BOTH BLACK & WHITE COLORATIONS
Cooler Master MasterBox 520 Mesh is available in both black and white so you can choose the color that best matches your setup!
THREE CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
REMOVABLE TOP PANEL
SCREWLESS & TOOL-FREE TG SIDE PANEL
The tempered glass side panel is secured with pins for easy removal, facilitating quick, easy installation.
VERSATILE COOLING OPTIONS
Supports up to seven 120mm fans and dual 360mm radiators on the top and front panel.
(RE)MOVABLE HDD CAGE
ARGB/FAN HUB INCLUDED
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.
UPGRADED REMOVABLE DUST FILTER BRACKET
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
RICH CONNECTIVITY
The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, a USB 3.2 (Gen 1) Type-A port, and one 3.5mm (audio + mic) headset jack.
BREATHABLE POWER SUPPLY SHROUD
The ventilated PSU cover supports both active and passive cooled PSUs installed in multiple orientations.
HARDWARE COMPATIBILITY
MasterBox 520 Mesh is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12″ x 10.7″.
| Model | MB520-WGNN-S00 |
| Exterior Color | White |
| Materials - Exterior | Steel, ABS Plastic, Tempered Glass |
| Left Side Panel | Tempered Glass |
| Volume | 50L |
| incl. Protrusions | 502 x 210 x 498mm |
| Body Size | 443 x 210 x 498mm |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX |
| Expansion Slots | 7 |
| 5.25“ ODD | 0 |
| 2.5" / 3.5" Drive Bays (combo) | 2 |
| 2.5" Drive Bays | 3 |
| I/O Panel | |
| USB Ports | 1x USB 3.2 Gen1 Type-A 1x USB 3.2 Gen2 Type-C |
| Audio In / Out | 1x 3.5mm Headset Jack (Audio + Mic) |
| Other | 1x Reset/ARGB Button |
| ARGB Control | ARGB/PWM Hub |
| Pre-installed Fan(s) | |
| Front | 3x 120mm ARGB Fan |
| Top | N/A |
| Rear | 1x 120mm Non-LED Fan |
| Fan Support | |
| Front | 3x 120mm / 2x 140mm |
| Top | 3x 120mm / 2x 140mm |
| Rear | 1x 120mm |
| Radiator Support | |
| Front | 120/140/240/280/360mm |
| Top | 120/140/240/280/360mm (recommended maximum thickness – 55mm) |
| Rear | 120mm |
| Clearances | |
| CPU Cooler | 165mm |
| Power Supply | 200mm (recommended up to 170mm) |
| Graphics Card | 410mm |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom mount, ATX PS2 |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| Motherboard Size | |
| Radiator Size | |
| Side Panel | |
| Warranty | |
| EAN / UPC Code |
