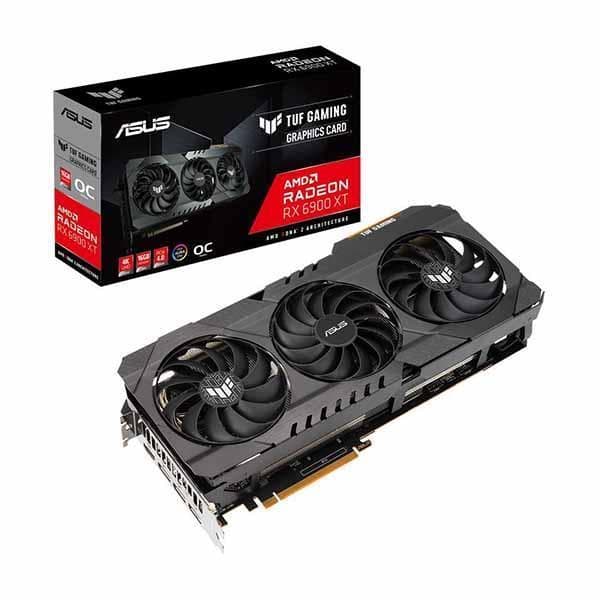

ASUS TUF Gaming Radeon RX 6900 XT 16GB GDDR6 PCI Express 4.0 CrossFireX

Radeon RX 6900 XT 16GB is BIGGER, and has BETTER COOLING

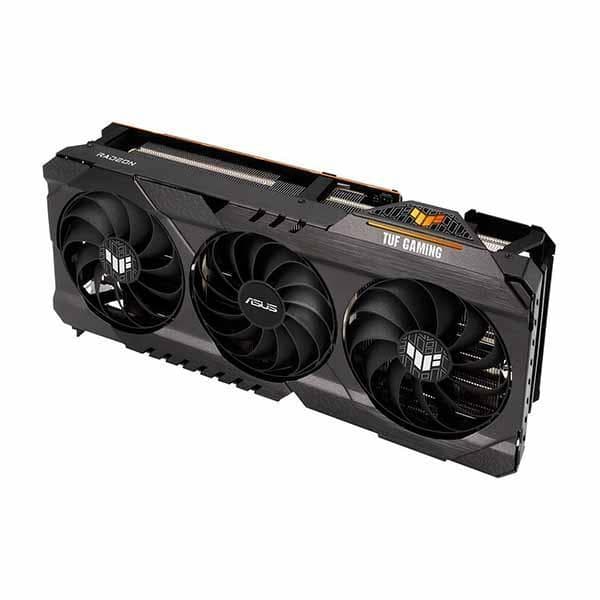

This generation, our Axial-tech fan design has matured with an increased blade count on all three fans: 13 on the center fan and 11 on the auxiliary fans. The barrier rings on the side fans have been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan's extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader. The fan design growth is specifically optimized for a massive new heatsink that features more fins and surface area than previous iterations.

QUIET CUNNING

To bolster the specialized roles of the center and auxiliary fans, the rotational direction of the center fan is reversed. This reduces air turbulence inside the cooling array for another boost to overall thermal performance. Fans will also only start spinning when the GPU temperature hits 60 Celsius and shut off when temps drop below 55 Celsius, helping to reduce noise when the system is idling or under light load.

MaxContact

To get heat up off the die and into the heatsink array in Radeon RX 6900 XT 16GB, we've engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

2.9-SLOT DESIGN

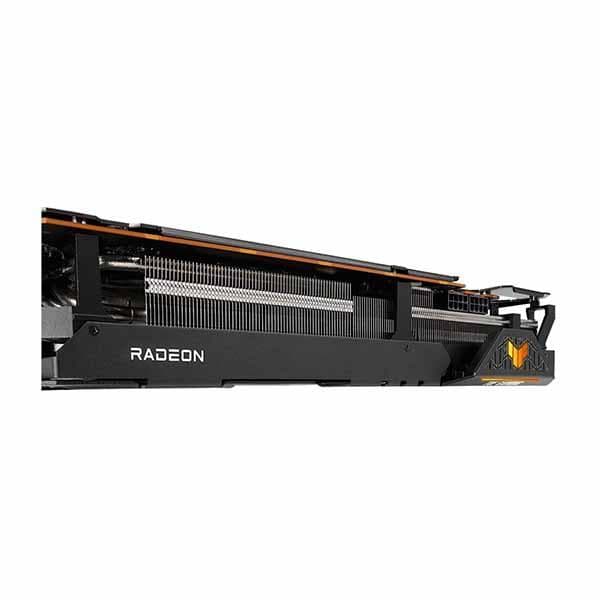

in Radeon RX 6900 XT 16GB The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.9-slot footprint.

TUF Components

Radeon RX 6900 XT 16GB has Robust military-grade capacitors were selected for the card's power design. They and other components are soldered to the PCB using our Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications. To ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.

ARMORED UNDERSIDE

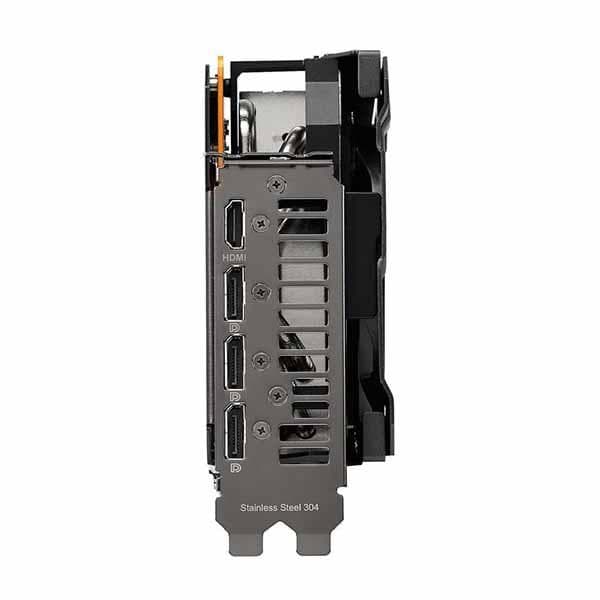

1. Stainless Steel I/O Port Bracket
2. GPU Bracket
3. Dual BIOS
4. Vented Backplate

The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customization of the card's default performance profile without software.

Powerhouse Performance

AMD Radeon RX 6900 XT 16GB graphics cards deliver ultra-high frame rates and serious 4K visuals. Get breathtaking gaming experiences with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.

Vivid Visuals

AMD Radeon RX 6900 XT 16GB graphics cards pull you into the action with immersive gaming technologies and support for DirectX 12 Ultimate. Experience realistic lighting, shadows, and reflections along with rich detail thanks to DirectX Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA 2 architecture.

Elevated Experiences

Instant responsiveness and smooth gaming are leveled-up with low-latency technology from AMD Radeon Anti-Lag1 and AMD Radeon Boost2. Propel your gaming experience with the latest HDMI 2.1 VRR technology, USB-C enabled VR headsets, or over 1250 AMD FreeSync technology-enabled gaming displays3.
