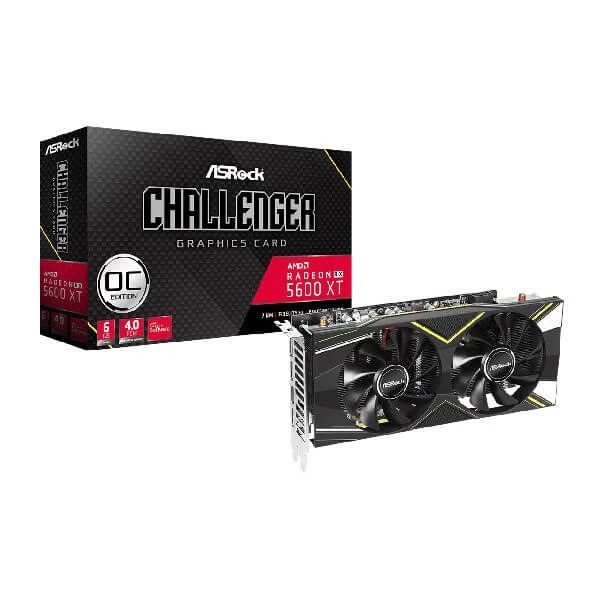

ASRock AMD Radeon RX 5600 XT Challenger D 6G OC
₹13,799.00
ASRock AMD Radeon RX 5600 XT Challenger D 6G OC
ASRock Radeon RX 5600 XT Challenger D 6G OC graphics card is equipped with higher memory clock of 14 Gbps, 1620 MHz Boost Clock, 12 DirectX Support and 2304 Cuda Core
.png)
Extreme Gaming DNA
The AMD Radeon™ RX 5600 XT graphics card is designed for the ultimate 1080p gaming experience. Turn up your settings for higher fidelity and boost gaming performance for higher frame rates with ultra-fast response times. Get the power of the highly acclaimed RDNA architecture, the heart of AMD’s advanced 7nm technology process, as well as GDDR6 high-speed memory and PCI® Express 4.0 support, delivering a highly responsive, ultimate 1080p gaming experience.
Armed with More Bandwidth
Dual Fan Design
Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
6GB 192-bit GDDR6
Equipped with 6GB of advanced GDDR6 memory to provide high bandwidth of up to 336 GB/s, enabling 1080p performance for today’s most demanding games.
Incomparable Memory Speed
ASRock Radeon RX 5600 XT Challenger D 6G OC graphics card is equipped with higher memory clock settings than reference default value. Compared with default settings, it brings significant performance enhancement.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
Radeon Image Sharpening
Radeon Image Sharpening combines contrast-adaptive sharpening with GPU upscaling to deliver crisp and detailed visuals with virtually no performance impact. Now with DirectX® 9, 11, and 12 support.
Game Fidelity, Accelerated
The AMD Radeon™ RX 5000 series graphics card powers high-fidelity gaming for immersive explosions, physics, and lighting effects, bringing realism to life. The RDNA architecture was engineered to greatly enhance features like FidelityFX, Radeon™ Image Sharpening, and Integer Display Scaling6 for maximum performance and beautiful gaming experiences.
Integer Display Scaling*
- Clock: GPU / Memory
Boost Clock: Up to 1620*Â MHz / 14 Gbps**
Game Clock: Up to 1460*Â MHz / 14 Gbps**
Base Clock: 1235*Â MHz / 14 Gbps** - Key Specifications:
Radeon RX 5600 XT Graphics
2nd Gen 7nm GPU
6GB 192-bit GDDR6
1 x 8-pin Power Connector
3 x DisplayPort / 1 x HDMI - ASRock AMD Radeon RX 5600 XT Challenger D 6G OC Key Features:
Dual Fan Design
Metal Backplate
AMD Eyefinity Technology
Radeon FreeSync™ 2 HDR
| Graphics Engine | AMD Radeon RX 5600 XT | - |
| Bus Standard | PCI® Express x16 Gen4 | - |
| DirectX | 12 | - |
| OpenGL | 4.6 | - |
| Memory | GDDR6 6GB | - |
| Engine Clock | ||
| * Boost Clock | Up to 1620 MHz | - |
| * Game Clock | Up to 1460 MHz | - |
| * Base Clock | 1235 MHz | - |
| Stream Processors | 2304 | - |
| Memory Clock | 14 Gbps | VBIOS version L08 or later required |
| Memory Interface | 192-bit | - |
| Resolution | Digital Max Resolution: 8K HDR 60Hz | - |
| Interface | ||
| * 1 x HDMI 2.0b | Supports up to 4K HDR at 60Hz | |
| * 3 x DisplayPort 1.4 with DSC 1.2a | Supports up to 8K HDR at 60Hz | |
| HDCP | Yes | Supports HDCP 2.3 |
| Multi-view | 4 | Supports simultaneous display on up to 4 monitors |
| Recommended PSU | 550W | Minimum recommended power supply wattage |
| Power Connector | 1 x 8-pin | Requires an 8-pin PCIe power connector |
| Accessories | 1 x Quick Installation Guide | - |
| Dimensions | 240.5 x 126.5 x 53 mm | (L x W x H) |
| Additional Notes | ||
| * Requires VBIOS version L07 or later | Update may be required for optimal performance and stability | |
| * Requires VBIOS version L08 or later for 14 Gbps memory clock | Update required for advertised memory speed |
| Weight | 1 kg |
|---|---|
| Product Type | |
| Brands | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Series | |
| Max GPU Boost Clock | |
| Memory Series | |
| EAN / UPC Code | |
| Warranty |
