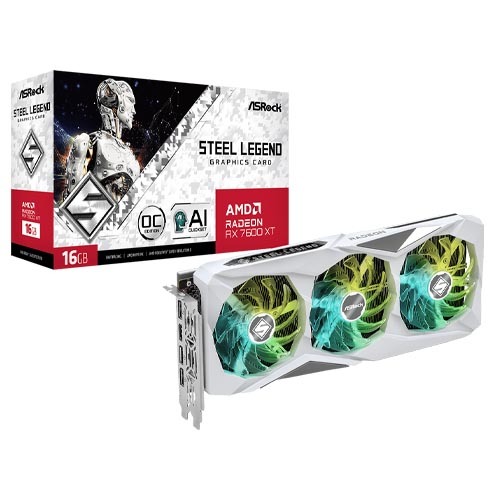

Asrock AMD Radeon RX 7600 XT Steel Legend 16GB OC Graphic Card RX7600XT SL 16GO

Asrock AMD Radeon RX 7600 XT Steel Legend 16GB OC Graphic Card RX7600XT SL 16GO

Polychrome SYNC

Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

Triple Fan Design

Triple fan design helps to optimize system cooling to reduce the operating temperature.

Stylish Metal Backplate

Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

Air Deflecting Fin

Guide Airflow to Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Ultra-fit Heatpipe

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base

Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste

Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad

Better Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 90A Power Choke

Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

ASRock Tweak 2.0

Pro and Easy-to-Use Tuning Utility.

Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI^® Express 4.0 Support

This graphics card features PCI^® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI^® Express 3.0. Get ready for the next generation of PC gaming.

AMD Eyefinity Technology

AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.

Ready yourself for today and tomorrow’s games with 16GB of GDDR6 memory and next-gen technologies. Experience incredible performance, visuals, and smoothness when gaming and streaming at 1080p and beyond with the AMD Radeon™ RX 7600 XT graphics card, powered by the AMD RDNA™ 3 architecture. Stay future-ready with AI accelerators, raytracing, AV1 hardware encoding⁴, and support for the latest DisplayPort™ 2.1 technology.

GAME

The AMD Radeon™ RX 7600 XT graphics card set a new level of performance for gamers. It features future-ready 16GB of GDDR6 memory, unified AMD RDNA™ 3 compute units, and next-generation technologies like AMD HYPR-RX, enabling ultra-fast and smooth gaming with ultra-detailed visuals for the best experience at 1080p, and the flexibility to jump up to 1440p. The Radeon™ RX 7600 XT graphics card delivers an incredible high refresh gaming & streaming experience, and the confidence to game for years to come.

STREAM

Get ready for next-generation, high-fidelity streaming using your favorite software, OBS Studio, with the new hardware AV1 encoders⁴. With improved encoding performance and enhanced visual quality when streaming, the Radeon™ RX 7600 XT graphics card is the ultimate plug-and-play solution for gamers and streamers. Enable AMD Noise Suppression⁵ featuring AI to eliminate ambient noise and communicate clearly with your audience or teammates.

UPSIZE PERFORMANCE. MAXIMIZE FIDELITY.

AMD FidelityFX™ Super Resolution(FSR) technology¹ takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games. AMD Radeon™ Super Resolution (RSR)² leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.

PERFORMANCE MADE EASY

Maximize performance and minimize input lag when you enable AMD HYPR-RX⁵. AMD Fluid Motion Frames⁸, AMD Radeon™ Super Resolution², AMD Radeon™ Boost⁶, and AMD Radeon™ Anti-Lag⁷ technologies now work together to give you a boost in performance in an ever-growing collection of games.

• Clock: GPU / Memory Boost Clock*: Up to 2810 MHz / 18 Gbps Game Clock**: 2539 MHz / 18 Gbps
• Key Specification AMD Radeon™ RX 7600 XT GPU 16GB GDDR6 on 128-Bit Memory Bus 32 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 32MB AMD Infinity Cache™ technology Microsoft^® DirectX® 12 Ultimate PCI^® Express 4.0 Support 2 x 8-pin Power Connectors 3 x DisplayPort™ 2.1***, 1 x HDMI™ 2.1
• Key Features Polychrome SYNC Triple Fan Design Stylish Metal Backplate Striped Axial Fan 0dB Silent Cooling Ultra-fit Heatpipe Super Alloy Graphics Card
