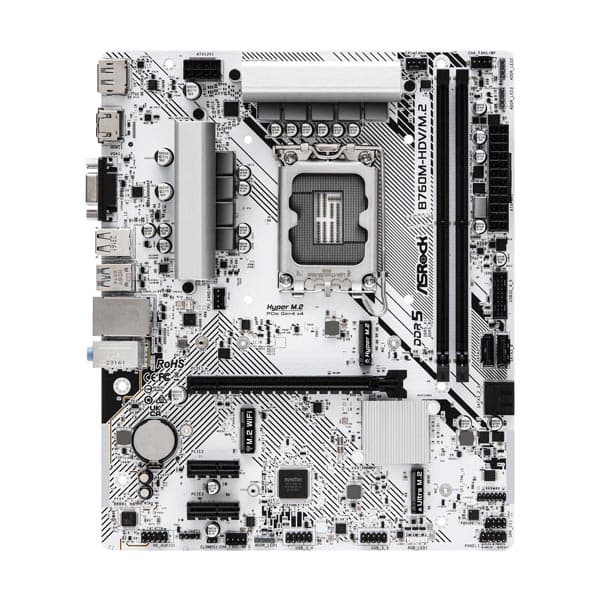

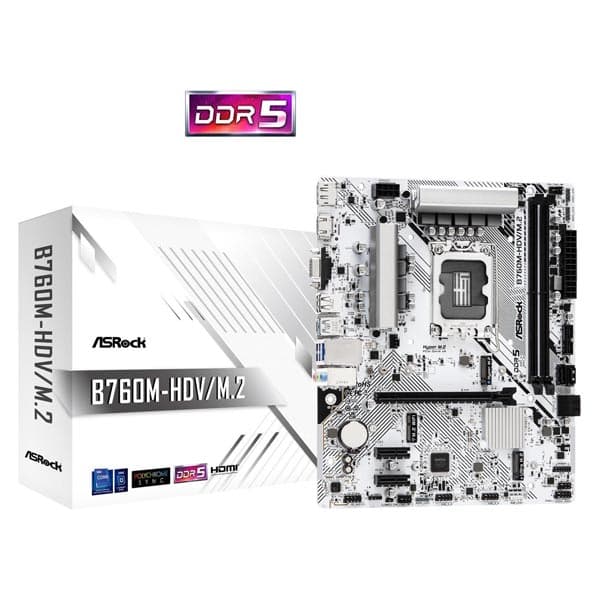

ASRock B760M-HDV/M.2 D5 Motherboard (INTEL 12,13 &14TH)
- Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase
- Supports DDR5 7200MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
... people are viewing this right now
Original price was: ₹19,999.00.₹9,349.00Current price is: ₹9,349.00.
Out of stock
Email when stock available
Feature
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC) - 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
1 Ultra M.2 (PCIe Gen3x4) - 1 USB 3.2 Gen1 Type-C (Rear),
5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
7+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
| Brand | ASRock |
|---|---|
| Model | B760M-HDV/M.2 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Supports Intel® Extreme Memory Profile (XMP) 3.0* 1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively. Please refer to Memory Support List on ASRock's website for more information. |
| Maximum Memory Supported | 96GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* Supports NVMe SSD as boot disks |
|---|
| SATA 6Gb/s | - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) ** Supports NVMe SSD as boot disks |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes** |
| SATA RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio Channels | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|---|
| Max LAN Speed | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|---|

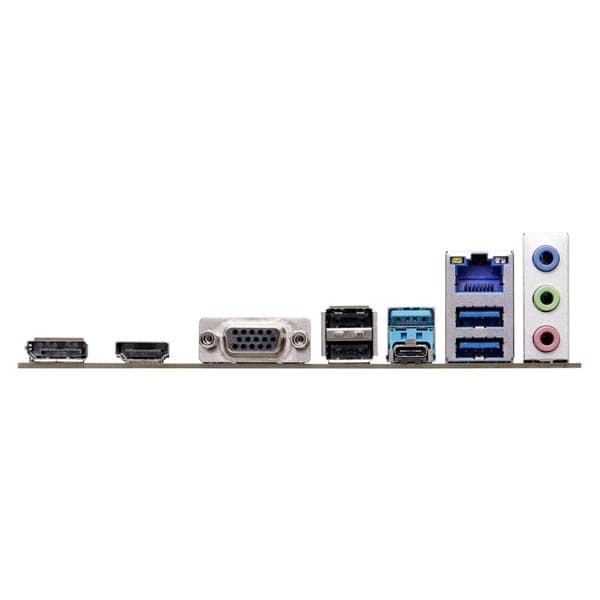

| Back I/O Ports | 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Other Connectors | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)*Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~2/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. |
|---|
| Windows 11 | - Microsoft® Windows® 10 64-bit / 11 64-bit |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| Features | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase -ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop. |
|---|
