- Elegant Design: Appearance tailored for ZOTAC GAMING's latest flagship GPUs
- Effortless Assembly: Quick-detachable panels, toolless PCIe screw design, Push-to-detach dust filter
- Three 120mm PWM Fans included, supports up to 10 Fans or up to one 360mm liquid-cooling Radiator
- Airflow optimized with dedicated air-guide ramp for GPU cooling

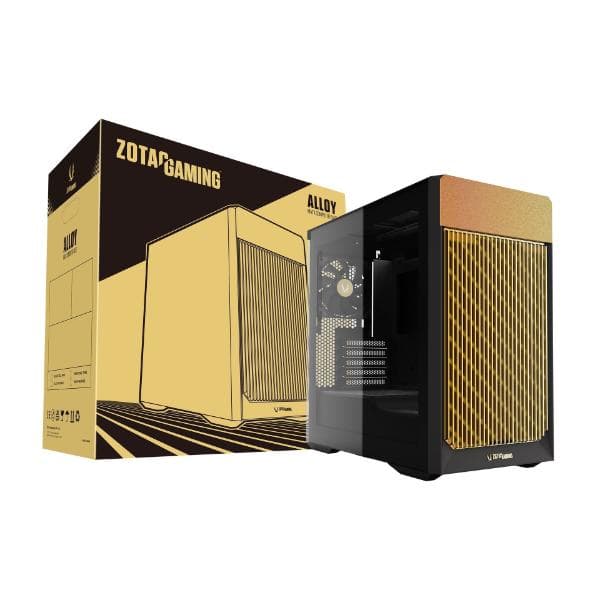

The ZOTAC GAMING ALLOY mATX Computer Case is ZOTAC’s first ever computer case that is designed with the DIY enthusiast in mind. With a solid airflow design and the potential for up to 10 fans to be installed, an mATX form factor that fits most flagship GPUs, quick detachable panels for easy maintainance and more, the ALLOY case effortlessly adds a touch of elegance and performance to any gaming station.
- Elegant Design: Appearance tailored for ZOTAC GAMING's latest flagship GPUs
- Effortless Assembly: Quick-detachable panels, toolless PCIe screw design, Push-to-detach dust filter
- Three 120mm PWM Fans included, supports up to 10 Fans or up to one 360mm liquid-cooling Radiator
- Airflow optimized with dedicated air-guide ramp for GPU cooling
- Wide Compatibility, up to 412mm GPU clearance
Black
Zotac
Mid Tower
360mm
mATX
ZC-MAB3F-01
1 kg
N/A
| Category | Specification | Details |
|---|---|---|
| Form Factor | Form Factor | mATX |
| Design | Color | Black |
| Design | Materials | Steel, Aluminum, ABS, Tempered Glass |
| Design | Side Panel | Tempered Glass |
| I/O Panel | Access & Controls | Power Button, USB 3.2 Gen1 Type-A, USB 3.2 Gen2 Type-C, Headphone/Mic Combo Jack |
| Dimensions | Dimensions (L x W x H) | 458 × 222 × 433 mm |
| Compatibility | Motherboard Support | mini-ITX, micro-ATX |
| Compatibility | Max PSU Length | ≤ 180 mm |
| Compatibility | Max CPU Cooler Height | ≤ 170 mm |
| Compatibility | Max GPU Length | ≤ 412 mm |
| Compatibility | Radiator Support | Top: 120/140/240/280/360 mm Rear: 120 mm |
| Expansion | PCIe Slots | 5 |
| Expansion | Drive Bays | 1 x 3.5" 1 x 2.5" |
| Cooling | Front Fans | 3 x 120 mm (2 x 120 mm pre-installed) |
| Cooling | Top Fans | 3 x 120 mm / 2 x 140 mm |
| Cooling | Midplate Fans | 2 x 120 mm |
| Cooling | PSU Shroud | 1 x 120 mm |
| Cooling | Rear Fan | 1 x 120 mm (pre-installed) |
| Cooling | Dust Filters | Front, Bottom |
| Fan Specifications | Fan Type | PWM |
| Fan Specifications | Fan Speed | 1350 ~ 1450 RPM |
| Fan Specifications | Cable Length | 550 mm |
| Fan Specifications | Lighting | N/A |
