• DDR5 SDRAM technology
• High-speed performance up to 4800 MHz
• Increased bandwidth compared to DDR4 memory
• Optimized for laptops, notebooks, and embedded platforms
• Low power consumption with 1.1V operating voltage
• On-module Power Management IC (PMIC)
• Non-ECC, unbuffered design
• RoHS compliant
• 100% compatibility and reliability tested

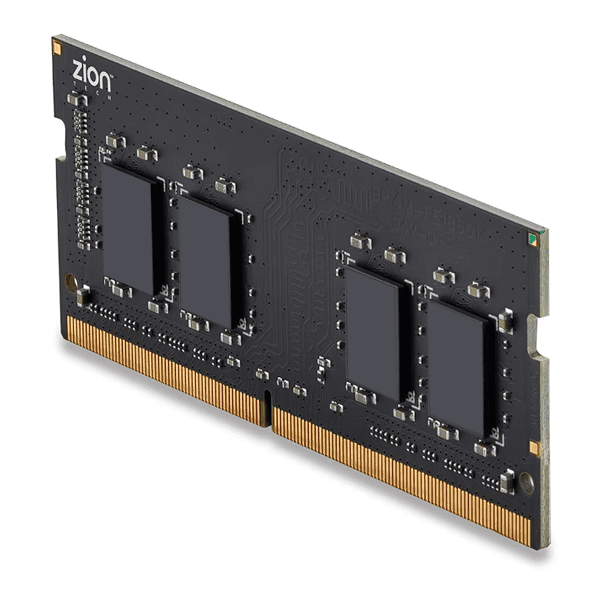

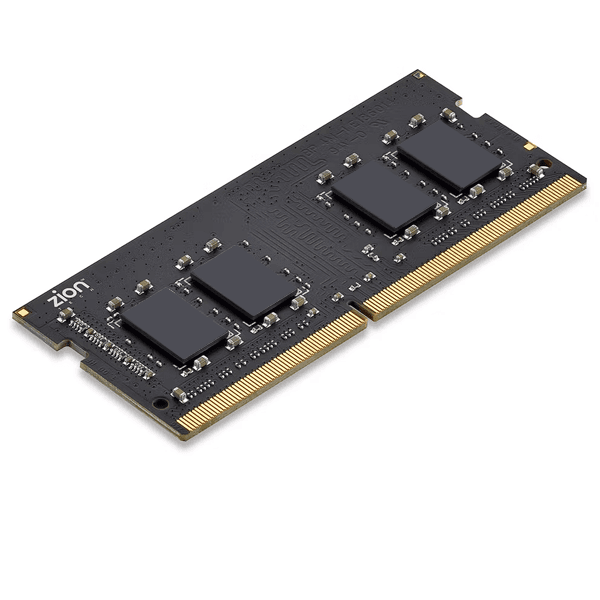

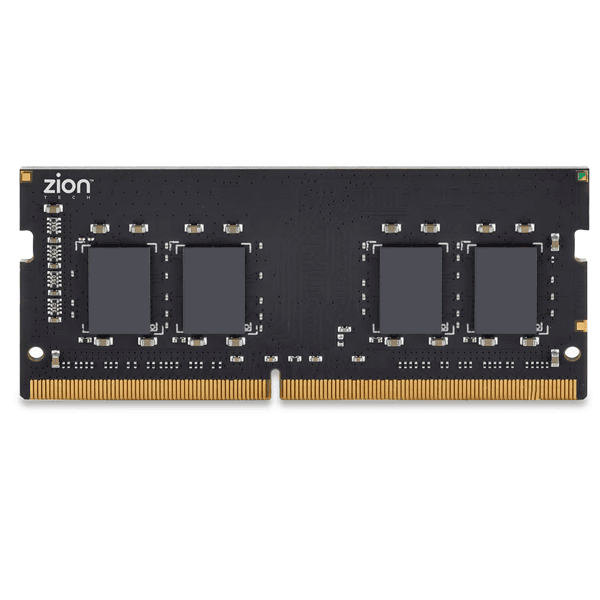

The ZION 16GB DDR5 4800 MHz SO-DIMM Memory Module is designed to deliver next-generation
performance and efficiency for laptops, notebooks, and compact computing systems. Built using high-
quality DDR5 DRAM components and validated through stringent quality control processes, it offers
higher bandwidth, improved power efficiency, and enhanced stability to support modern multitasking
and data-intensive workloads
Physical Dimensions
• Form Factor: DDR5 SO-DIMM
• Pin Configuration: 262-pin
• Dimensions: 69.6 (L) x 30.0 (W) mm
• Weight: About 8.5 gm.
Advanced Memory Management
• JEDEC-compliant DDR5 architecture
• On-module Power Management IC (PMIC) for improved power regulation
• Dual 32-bit sub-channel architecture for increased efficiency
• On-die Error Detection and Correction (ODECC)
• Auto self-refresh and power-down modes
• Enhanced signal integrity for stable, high-speed operation
Warranty
• 3-Year Warranty
ZION
Black
DDR5
16GB
Limited Lifetime
ZM16GSD480
1 kg
N/A
| Parameter | Specification |
|---|---|
| Capacity | 16GB |
| Memory Type | DDR5 SDRAM |
| Speed | 4800 MHz |
| Data Rate | 4800 MT/s |
| Voltage | 1.1V |
| Form Factor | SO-DIMM |
| Pin Count | 262-pin |
| ECC | Non-ECC |
| Buffered / Registered | Unbuffered |
| CAS Latency | CL16 |
| Operating Temperature | 0°C to 85°C |
| Storage Temperature | −40°C to 85°C |
