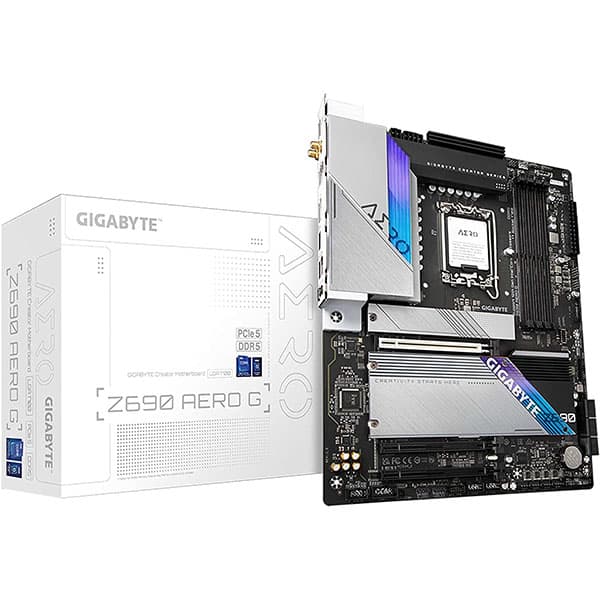

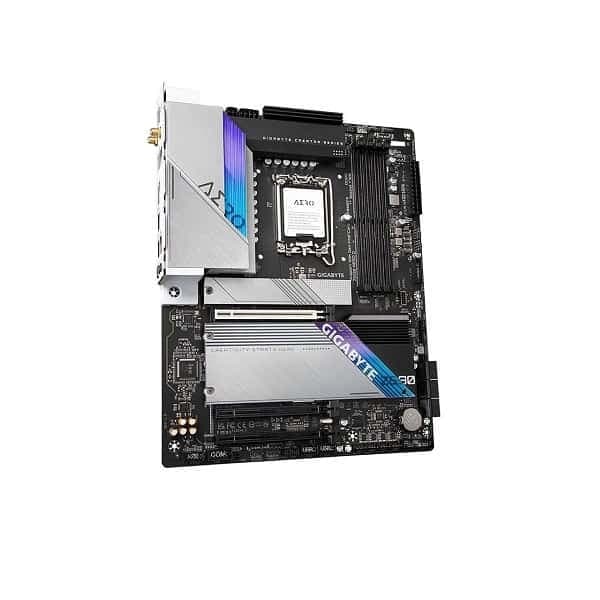

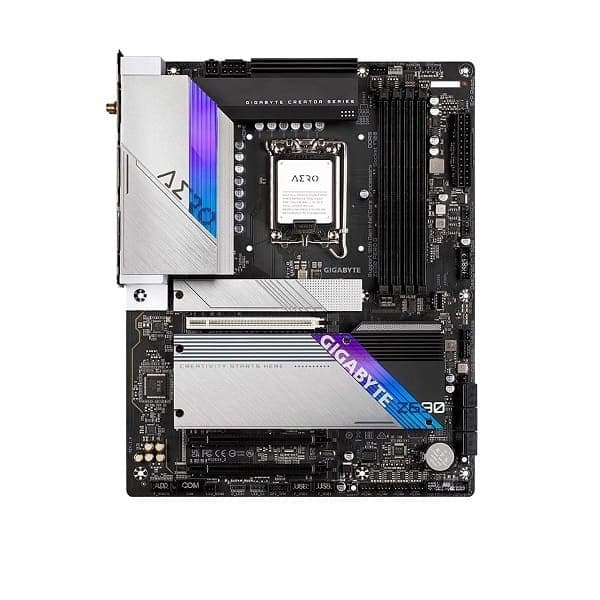

Gigabyte Z690 Aero G Ddr5 Intel Atx Motherboard
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage
- Go further without more cables by VisionLINK I/O design
- Brings a speed network experience with Intel® 2.5GbE LAN
- WIFI6 2×2 802.11ax 2T2R & BT5 with new antenna for better signal
- No Hassle Connection with front USB 3.2 Gen 2×2 Type-C®
- 4 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 connectors with enlarged thermal guards
- Advanced thermal architecture design for the better thermal dissipation
- Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
- Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
₹28,899.00
GIGABYTE Z690 AERO G DDR5 INTEL 12TH GEN LGA1700 ATX MOTHERBOARD
Feature
Creativity Starts Here
GIGABYTE Z690 AERO G DDR5 motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.
Go Further Without More Cables
GIGABYTE Z690 AERO G DDR5 VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience than ever. With seamless multitasking between your PC and devices, it lets you work like a pro.
Faster Instant Reaction Speed
You can never have enough memory bandwidth, and DDR5 helps meet this insatiable need for speed. Whether you are editing hundreds of audio samples, handling 4K footage, or multitasking workloads, it boosts system performance and offers you a smooth experience.
This new model is equipped with four PCIe 4.0 M.2 sockets and it is capable to deliver superior bandwidth. Upgrade your storage configuration now to accelerate your workflow. PCIe 4.0 M.2 SSD gives you 7X faster data transferring speeds compared to 2.5” SATA solid-state drives.
Immersive sounds to go.
DTS:X Ultra is capable of delivering consumers a truly premium entertainment experience by completely surrounding the listener and expanding the sound stage to create a more immersive environment. Supports channel-based, scene based, and object-based audio. Also, it takes movies, music, and interactive gaming experiences to an exciting new level.
| Model | |
| Brand | GIGABYTE |
| Model | Z690 AERO G |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Supported CPU Technologies | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Chipsets | |
| Chipset | Z690 |
| Memory | |
| Number of Memory Slots | 4 x DDR5 DIMM |
| Memory Standard | DDR5 |
| Maximum Memory Supported | 128 GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 2.0 x16 | 1 |
| PCI Express x4 | 1 |
| PCI Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot c |
| PCIe 3.0 x 16 | 1 |
| Storage Devices | |
| SATA RAID | Raid 0, 1, 5, 10 |
| Additional RAID Controller | 6 x SATA 6Gb/s connectors |
| Onboard Video | |
| Onboard Video Chipset | N/A |
| Onboard Audio | |
| Audio Channels | 2-channel |
| Audio Chipset | Intel High Definition Audio |
| Onboard LAN | |
| LAN Chipset | 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN1), 1 x Intel® GbE LAN chip (1 Gbit/100 Mbit) (LAN2) |
| Max LAN Speed | 10/100/1000 |
| Rear Panel Ports | |
| USB | 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header 6 x USB 3.2 Gen 2 Type-A |
| Audio Ports | 2 x audio jacks |
| Video Ports | 1 x DisplayPort and 1 x HDMI |
| HDMI | 1 x HDMI |
| Onboard USB | |
| Onboard USB | 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | E-ATX Form Factor; 30.5cm x 25.9cm |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Dimensions | 30.5cm x 25.9cm |
