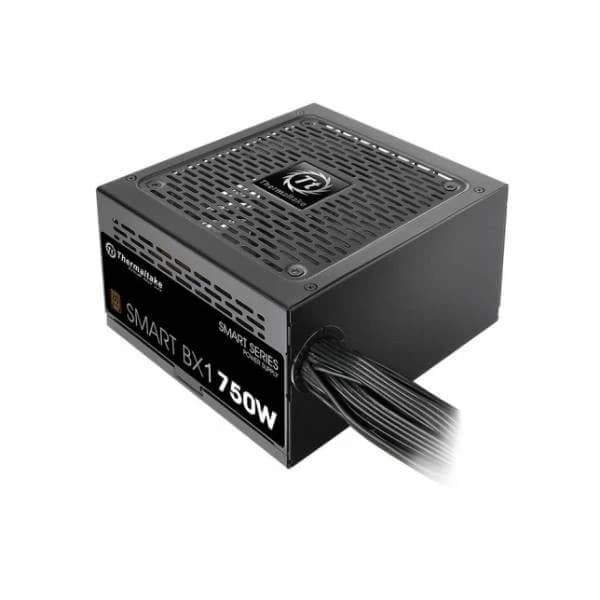

Thermaltake Smart BX1 750W 80 Plus Bronze SMPS
- Certification: 80 PLUS Bronze certified
- Cooling: 120mm hydraulic bearing fan for efficient cooling and near-silent operation
- Power Output: Stable and continuous power output at 40°C
- Capacitors: Premium Japanese main capacitors for enhanced durability and stability
Original price was: ₹9,900.00.₹5,749.00Current price is: ₹5,749.00.
Thermaltake Smart BX1 750W 80 Plus Bronze SMPS
Thermaltake Smart Series BX1 750W 80 Plus Bronze Rated Power Supply With Active PFC, Comes with 8x SATA, 4x PCIe 6+2 Pin and 4x PATA + 1 Floppy Connectors.
Features
Smart BX1 750W
Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W – 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40℃, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.
Ultra Quiet 120mm Hydraulic Bearing Fan
Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.
Low Ripple Noise
All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.
Premium Japanese Main Capacitor
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
Multiple Connectors
Soft black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages
80 PLUS Gold Certified and Intel C6/C7 States Ready
Smart BX1 series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
| P/N | PS-SPD-0750NNSABD-1 |
| WATTS | 750W |
| RGB FAN | No |
| FORM FACTOR | ATX |
| MODEL | SPD-750AH2NKB |
| TYPE | ATX 12V v2.3 and EPS v2.92 |
| MAX. OUTPUT CAPACITY | 750W |
| PEAK OUTPUT CAPACITY | 900W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 70% of full load |
| INPUT CURRENT | 12A max. |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 5°C to + 40°C |
| OPERATING HUMIDITY | 20% to 85%, non-condensing |
| STORAGE TEMPERATURE | -40°C to + 55°C |
| STORAGE HUMIDITY | 10% to 95%, non-condensing |
| COOLING SYSTEM | 12cm Hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/CB/TUV/ UL/ FCC/ BSMI |
| PCI-E 6+2PIN | 4 |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type | |
| Brands | |
| PSU Certification | |
| Wattage | |
| Modular | |
| EAN / UPC Code |
