Thermal Grizzly Putty is an electrically non-conductive alternative to traditional thermal pads, specifically designed for GPU modifications and the replacement of thermal pads between the PCB and the cooler.
TG Putty is an electrically non-conductive alternative to conventional thermal pads. As an easy-to-apply and flexible gap filler, it compensates for height differences, making it ideal as a replacement for thermal pads on GPUs. Graphics cards typically feature several types of thermal pads of varying thicknesses from the factory, requiring different pads during replacement or when converting the cooler to a GPU water cooler.

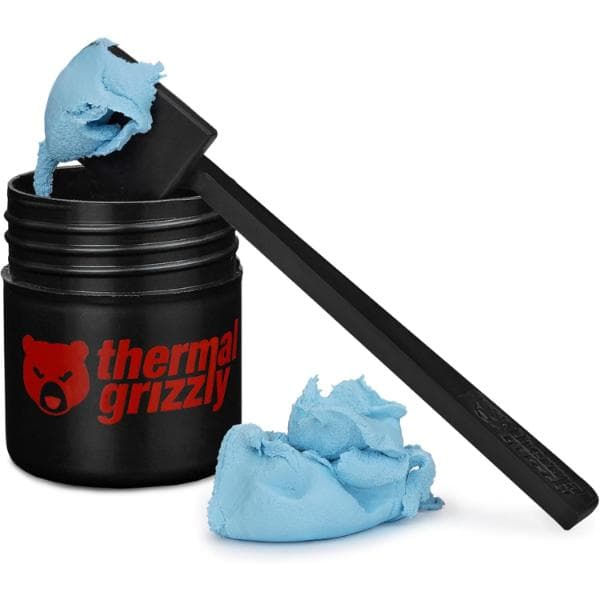

TG Putty can be applied using the included spatulas or by hand (gloves recommended). The spatula allows for broad application, while by hand, it can be shaped into small pellets tailored to the surface size (e.g., VRAM, SMD). TG Putty can fill height differences ranging from 0.2 to 3.0 mm.
TG Putty is available in three variants, primarily differing in their thermal conductivity:
- TG Putty Basic: Medium thermal conductivity
- TG Putty Advance: Good thermal conductivity
- TG Putty Pro: Excellent thermal conductivity
For modifying a single, smaller graphics card without an active backplate (e.g., GeForce GTX 1060), approximately one 30-gram container of TG Putty is required. For larger graphics cards, such as a GeForce RTX 4090, one 30-gram container is generally sufficient for the memory (VRAM) and voltage regulators (VRM) on the front side. On the backside, there is often a uniform, larger gap between the PCB and the backplate on larger graphics cards. In this case, approximately two 30-gram containers are needed to completely fill this gap.

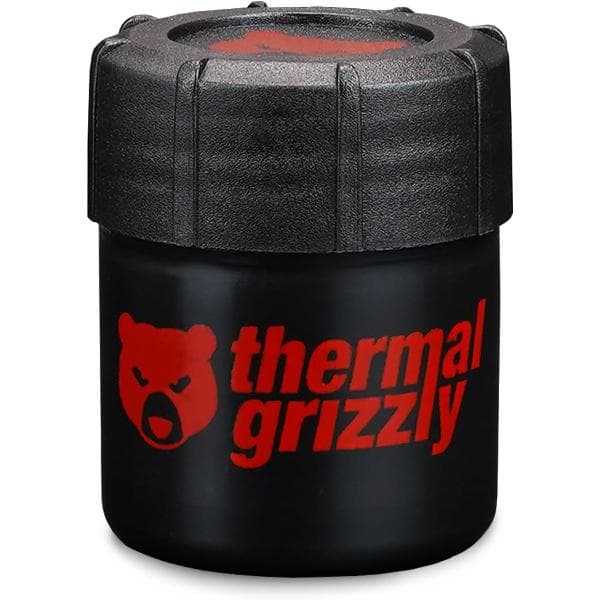

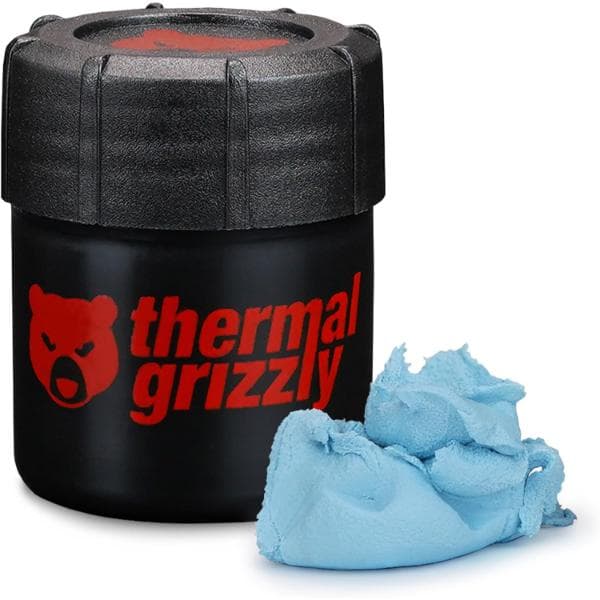

Thermal Grizzly TG Putty Advance
Perfect cooling for your GPU
TG Thermal Putty is an electrically non-conductive alternative to conventional thermal pads. As an easy-to-apply and flexible “gap filler”, it compensates for height differences, making it an ideal replacement for thermal pads on graphics cards.
Flexible like you – ready for any challenge
Thermal Putty is applied either with a spatula or by hand. It can be spread over a large surface or shaped into small beads, perfectly adapting to the surface it is applied to. It compensates for height differences ranging from 0.2 to 3.0 mm, ensuring optimal thermal transfer.
Three variants, one goal: Top performance
Choose the thermal conductivity that suits your project: Basic, Advanced, or Pro. Whether for standard applications or high-end cooling, TG Thermal Putty provides the ideal solution.
