Super Flower Leadex Titanium 1600W 80+ Titanium, ATX 3.1, W/12V-2×6(2x8pin – 16pin Native Cables)*2, 10 Years Warranty, ECO Mode, Full Modular, Dual Ball Bearing Fan, SF-1600F14HT ATX 3.1
- 100% Full Modular Cabling Design For Easy Cable Management
- 80 PLUS® Titanium Certified, 90% 92% 94% 90% Efficiency At 10% 20% 50% 100% Rated Load
- Full Range Auto Voltage Detection Design 115V~240V (Active PFC)
- Comply With ATX 12V. V2.2, EPS 12V. V2.91 & SSI EPS 12V. V2.92 Specification
Original price was: ₹73,400.00.₹36,999.00Current price is: ₹36,999.00.

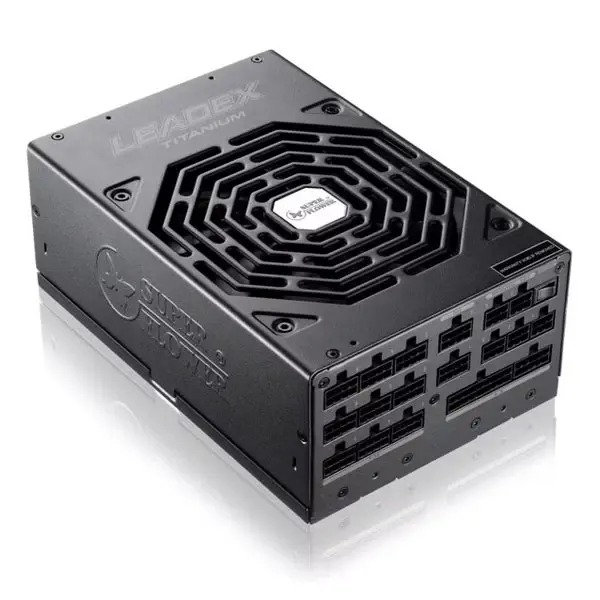

Super Flower Leadex Titanium 1600 Watt Power Supply
Feature
Super Flower LEADEX Titanium series PSU are 80+ Titanium certified with 100% fully modular cable design, our R&D team’s latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
♦100% Full Modular Cabling Design For Easy Cable Management
♦80 PLUS® Titanium Certified, 90% 92% 94% 90% Efficiency At 10% 20% 50% 100% Rated Load
♦Full Range Auto Voltage Detection Design 115V~240V (Active PFC)
♦Comply With ATX 12V. V2.2, EPS 12V. V2.91 & SSI EPS 12V. V2.92 Specification
♦Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
♦Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
♦Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
♦Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
♦More than 2,000 times On/Off test
♦Unleaded Green Materials with RoHS/WEEE Compliance
♦Perfect For Professional & High Performance Gaming System
♦Exclusive Patents
(Taiwan & China Patents Approved, USA, Germany & Japan Patents Pending)
1. ECO Intelligent Thermal Control System
2. Multi Patenet Pending Extreme High Efficiency Main Transformer
♦This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:
- Industrial grade server system.
- Special ultra-high load operation system (for example: bitcoin mining machine… etc.)
- Test equipment system (for example: memory RAM, VGA graphic card or USB device test)
| Model No. | SF-1600F14HT |
| Wattage | 1600W |
| 80+ Efficiency | 10%: 90%; 20%: 92% ; 50% : 94% ; 100% : 90% (115V Internal Titanium) |
| Intel Power Design Guide | V2.92 |
| AC Input / Frequency | 100-240V | 60 / 50Hz |
| Fan Size | 140mm Two-Ball Bearing Fan |
| Dimension | 220mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP/ OCP/ OPP/ SCP/ UVP/ OTP/ NLO/ SIP |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / RoHS / KCC / CQC |
| Temprature | Passed 50℃ Hot Testing |
| Cable Spec | |
| Detachable Cables | |
| 20+4Pin | One cable (600mm) |
| 8 (4+4) Pin CPU | Two cables (750mm) |
| PCI-E 6+2Pin | Four cables (750mm) |
| SLI (2 x PCI 6+2Pin) | Five cables (750+150mm) |
| 4SATA | Three cables (550+100+100+1000mm) |
| 2SATA+2Molex | One cable (550+100+100+100mm) |
| 3Molex | One cable (550+100+100mm) |
| Molex to FDD Adapter | Two cables (100mm) |
| Weight | 2 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| PSU Certification | |
| Modular | |
| Wattage | |
| Warranty | |
| EAN / UPC Code |
