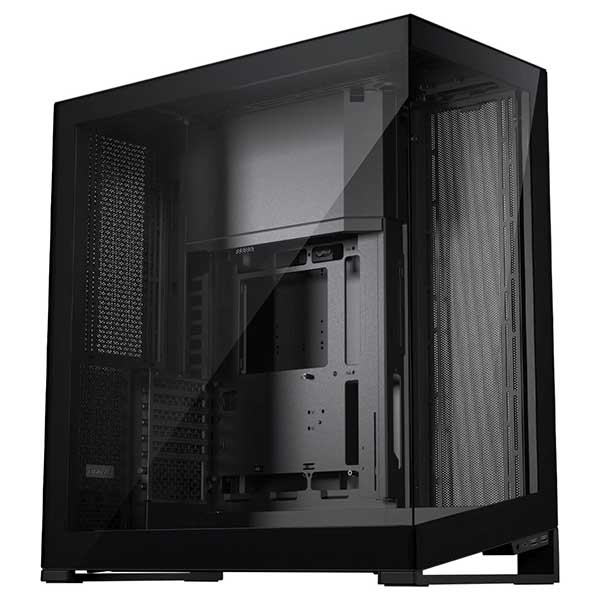

Phanteks NV9 MKII D-RGB Clear Tempered Glass Steel E-ATX Full Tower Desktop Cabinet (Satin Black)
1 sold in last 9 hours
Hurry! Over 7 people have this in their carts
– Full-Tower E-ATX Form Factor
– Supports ATX Backside Connector Motherboards
– Dual-Chamber Design with Bottom Fan Bracket
– 2-Sided Column-less Glass Panel Design
– Includes D-RGB Dual-Channel Controller Hub
Estimated Delivery: Jan 05 – Jan 09
... people are viewing this right now
Original price was: ₹39,999.00.₹18,999.00Current price is: ₹18,999.00.
Phanteks NV9 MKII D-RGB Clear Tempered Glass Steel E-ATX Full Tower Desktop Cabinet (Satin Black) (PH-NV923TG_DBK02
Feature
Phanteks NV9
A True Showcase of Performance
The Phanteks NV9 is a full-tower chassis, featuring a stunning near-seamless glass view and support for twelve 140mm fans and triple 420+280 radiators simultaneously. Following the same unmistakable purpose design of the NV7, it highlights the system components with the mainboard at its center. Combined with a strong and defining outer frame it captures and accentuates the hardware components.
With a clean design from all sides, the NV9 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
A Showcase of Performance
- Near-seamless glass panels.
- The mainboard as a centerpiece of your build.
- Build to last from thick reinforced steel.
Performance without Compromise
- Up to eleven 140mm fans all around the system with a strong outer frame.
- Extensive cooling support for triple 420+280 radiators simultaneously for high end cooling performance.
- Direct and dedicated GPU cooling from the bottom.
- Immense bottom airflow intake with 65mm clearance.
- Ultra-Fine Performance mesh on all external panels.
Clean Exterior From All Sides
- The clean rear door and moveable front IO module allows for multiple placement options.
- Rear door swings open to provide easy access.
- Unique cable management system for external cables.
- Go for a zero-cable setup using the hidden cable exit grommet.
- Cover doors and velcro cable combs easily hide and manage the internal cables.
Unique Interior Features
- Versatile GPU support bracket prevents sag and securely holds the GPU to the motherboard.
- Removable side and bottom fan bracket for easy installation.
- Bottom bracket can be reversed for angled or horizontal position.
- Included airflow covers to prevent uneven air circulation.
*Premium D-RGB Kit not included
New Generation D-RGB Controller
- Built-in Digital-RGB Controller.
- Integrated D-RGB lighting around the motherboard.
- Dual channel output to allow for dual color effects.
- A total of 4 output ports and dual Sata power expands the possibilities.
- Refined D-RGB lighting effects that just work, no software required.
- Expand with more Digital-RGB lighting.
- Optionally sync with motherboard and software.
NV9 Premium D-RGB Kit
Optional Upgrade
Get Perfect Cables with the NV9 Presets from Cable Mod
Optional Upgrade
- Combine the Revolt cableless PSU with custom cables from CableMod.
- Use the perfect cable length for your NV9 build.
- Alternatively, use the Revolt Cable kits to complement the Revolt PSU.
Multiple storage options
- Support for 6x 2.5″ SSD.
- Support 3x 3.5″ HDDs.
120 Fans Support
- Top 3x
- Side 4x
- Bottom 3x
- Rear 2x
140 Fans Support
- Top 3x
- Side 3x
- Bottom 3x
- Rear 2x
120 Radiator Support
- Top Max. 360
- Side Max. 480
- Bottom Max. 360
- Rear Max. 240
140 Radiator Support
- Top Max. 420
- Side Max. 420
- Bottom Max. 420
- Rear Max. 280
| Brand | Phanteks |
| Series | NV9 Series |
| Model | NV9 MKII Black (PH-NV923TG_DBK02) |
| Physical Details | |
| Colour | Black |
| Materials | Aluminium |
| Steel | |
| Tempered Glass | |
| Windowed Side Panel | Columnless Modular Tempered Glass |
| Front I/O | 1x USB 10Gbps Type-C Port |
| 2x USB 5Gbps Type-A Ports | |
| 1x 3.5mm Combination Audio Jack | |
| Motherboard Support | SSI-CEB, E-ATX (280mm Width), ATX, Micro-ATX, Mini-ITX motherboards |
| Expansion Slots | 8x Horizontal PCI Slots |
| Drive Bays | 3x 2.5"/3.5" Combo Drive Bays (24mm height limit) |
| 6x 2.5" Drive Bays (2x only if 3x 3.5" bays are in use) | |
| PSU Support | ATX |
| Dimensions | 575 x 615 x 280mm (D x H x W) |
| Weight | 19.52kg |
| Pre-Installed Fans | |
| Side | N/A |
| Bottom | N/A |
| Rear | N/A |
| Fan Support | |
| Top | 3x 120mm or 3x 140mm |
| Side | 4x 120mm or 3x 140mm |
| Bottom | 3x 120mm or 3x 140mm |
| Rear | 2x 120mm or 2x 140mm |
| Radiator Support | |
| Top | 120 / 240 / 280 / 360 / 420mm radiator support |
| Side | 120 / 240 / 280 / 360 / 420mm radiator support |
| Bottom | 120 / 240 / 280 / 360 / 420mm radiator support |
| Rear | 120 / 240 / 280mm radiator support |
| Radiator Clearances | |
| Top | 515 x 154mm (L x W) |
| Side | 525 x 154mm (L x W) |
| Bottom | 480 x 162mm (L x W) |
| Rear | 325 x 154mm (L x W) |
| Clearance | |
| CPU Cooler Height Limitation | Up to 205mm |
| GPU Length Limitation | Up to 490mm (205mm GPU width) |
| PSU Length Limitation | Up to 210mm |
| Cable Management | Yes, behind motherboard tray |
| General | |
| Dust Filters | Side and Rear full-length integrated filters |
| Bottom mounted removable mesh filter | |
| Chassis Lighting | Yes, Phanteks D-RGB no-software controller with JST connector |
| D-RGB Control Buttons (Mode, Colour, Speed, Channel) on front panel | |
| D-RGB Controller includes dual channel RGB signaling, requires SATA power, 7A per channel or 4A per port | |
| Compatible with major 3-pin ARGB headers and motherboard software | |
| Boxed Accessories | 1x Dual D-RGB Controller |
| 1x Top LED Cover | |
| 1x Side LED Cover | |
| 1x Front IO-Module | |
| 1x Storage/Cable bracket | |
| 1x Storage Bracket | |
| 1x GPU Support Bracket | |
| 2x Airflow Covers | |
| 1x Microfiber Cloth | |
| 6x Zip ties | |
| 1x Screw Assortment Box | |
| 34x MB/SSD Screws | |
| 4x Thumb Screw | |
| 9x HDD Screw | |
| 1x Standoff Removal Tool | |
| 1x MB stand-off | |
| 4x PSU Screw | |
| 1x Extra R-Side Panel Screw | |
| Warranty Information | |
| Warranty | 5 Year Limited Warranty |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| Case Form Factor | |
| Motherboard Size | |
| Radiator Size | |
| Warranty | |
| EAN / UPC Code |
