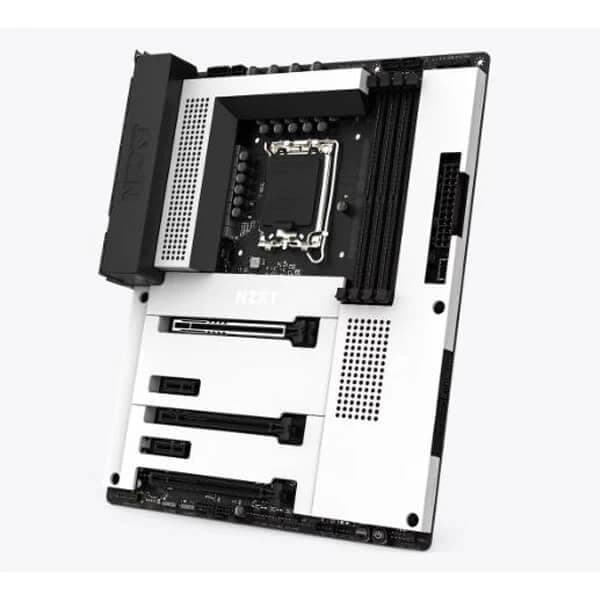

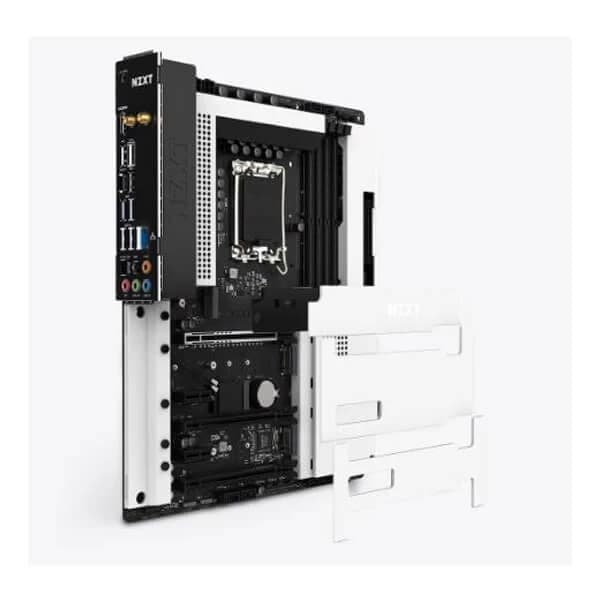

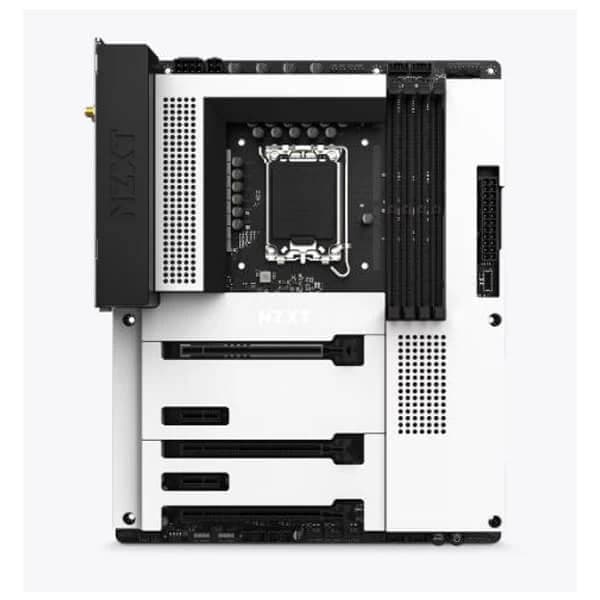

Nzxt N7 Z790 (Wi-Fi) Motherboard DDR5 Supports LGA 1700 Intel 12th, 13th & 14th Gen Intel Processors – White
Brand: NZXT
- 16+1+2 DrMOS Power Phase Design with 2oz Copper PCB
- Full cover in black or white with integrated heat spreader for the top-most M.2 slot
- Numerous presets and custom modes via NZXT CAM software
- Convenient fan profiles within NZXT CAM for seven independent fan channels
- Integrated rear I/O shield and efficient layout for optimal setup
- Compatible with Intel® 13th and 12th Generation Core™ i9, Core™ i7, Core™ i5 processors
- Designed with Intel® Z790 Express Chipset with Wi-Fi 6E wireless connectivity and Bluetooth V5.2
- Three M.2 connectors for storage devices
- 8-channel high-definition audio
... people are viewing this right now
Original price was: ₹49,999.00.₹29,499.00Current price is: ₹29,499.00.
Out of stock
Email when stock available
NZXT N7 Z790 Motherboard – N7-Z79XT-B1 – Intel Z790 chipset (Supports 12th &13th Gen CPUs) – ATX Gaming Motherboard – Integrated I/O Shield – WiFi 6E connectivity – Bluetooth – White
N7 Z790
Intel Z790 ATX Motherboard with Full Cover, CAM Controls, and Wi-Fi
The Nzxt N7 Z790 supports Intel’s latest CPUs and has everything needed to build a modern system. The full black or white cover blends seamlessly within your build and includes optimally placed headers and built-in fan & lighting controls via NZXT CAM.
- Full cover in black or white with an integrated heat spreader for top-most M.2 slot.
- Digital RGB lighting control through CAM for numerous preset and custom modes
- Convenient fan profiles within NZXT CAM for seven independent fan channels
- Integrated rear I/O shield and efficient layout ensures straightforward setup
|
|
|
|
|---|---|---|
The Latest and GreatestThe Nzxt N7 Z790 allows for a great look without sacrificing the build experience with an integrated rear I/O and optimally placed headers. |
Stunning CraftsmanshipBuild your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your prized components. |
Powerful ControlThe Nzxt N7 Z790 includes key features from the NZXT RGB and Fan Controller, allowing intuitive control of six RGB lighting channels and seven fan channels through NZXT CAM. Lighting accessories from all manufacturers are supported as well as 5V ARGB. |
| CPU & Socket | |
| Intel® Socket LGA 1700 for Intel® 13th and 12th Generation Processors | Intel® Core™ Processors. Please refer to CPU support list. |
| Intel® Hybrid Technology | Supported |
| Turbo Boost Max 3.0 Technology | Supported |
| Intel® Thermal Velocity Boost (TVB) | Supported |
| Intel® Adaptive Boost Technology (ABT) | Supported |
| Wireless | |
| Dual Band Wi-Fi 6E | Supported |
| Bluetooth | V5.2 |
| Audio | |
| Realtek® | ALC1220 Codec |
| Memory | |
| DIMM Slots | 4 |
| Max Memory Support | 128GB, DDR5 |
| Memory Architecture | Dual-Channel |
| OC Frequency | 5000+(O.C.). Please refer to memory QVL. |
| Intel® Extreme Memory Profile (XMP) 3.0 | Supported |
| Rear I/O | |
| Wireless antenna SMA connectors | 2 |
| HDMI™ port | 1 |
| USB 2.0 | 2 |
| USB 3.2 Gen 2x2 Type-C port | 1 |
| USB 3.2 Gen 2 ports | 2 |
| USB 3.2 Gen 1 ports | 3 |
| Clear CMOS button | 1 |
| LAN (RJ45) port | 1 |
| Audio jacks | 5 |
| Optical S/PDIF Out port | 1 |
| Expansion Slots | |
| PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode | 1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode | 2 (Supports NVMe SSD as boot disks) |
| PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2) | 2 (Supports NVMe SSD as boot disks) |
| M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2 | 1 |
| Internal I/O | |
| 24-pin ATX power connector | 1 |
| 8+4-pin ATX 12V power connector | 1 |
| 4-pin CPU_FAN connector | 1 |
| 4-pin AIO_PUMP connector | 1 |
| 4-pin SYS_FAN connectors | 5 |
| NZXT RGB LED connectors | 4 |
| 5V ARGB LED connector | 2 |
| USB 2.0 header (Up to 4 USB 2.0 ports) | 2 |
| USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports) | 1 |
| USB 3.2 Gen2x2 front panel header (For USB Type-C) | 1 |
| Front panel audio connector | 1 |
| Power button | 1 |
| Reset button | 1 |
| POST LEDs | 4 |
| Storage | |
| M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode) | 1 |
| M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode) | 1 |
| M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode) | 1 |
| SATA 6Gb/s ports | 4 |
| Intel® Volume Management Device (VMD) | Supported |
| NVMe SSD as boot disks | Supported |
| LAN | |
| Realtek® | RTL8125BG 2.5G LAN |
| General | |
| Operating System | Windows® 11/10 64-bit |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
