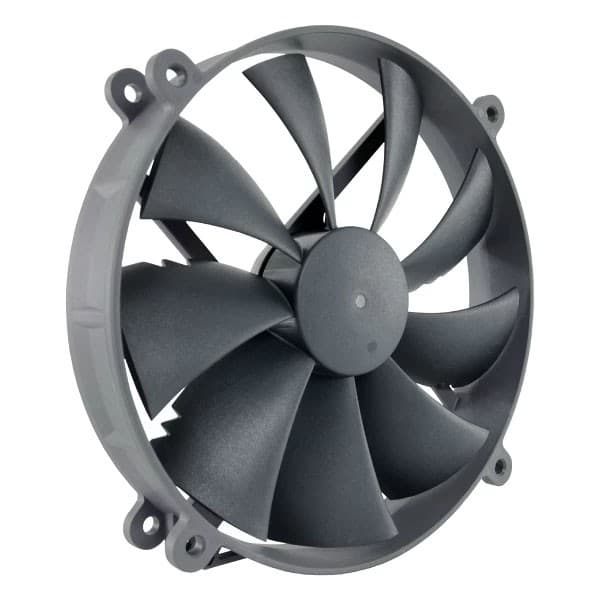

Noctua NF-P14r Redux-1500P PWM Cabinet Fan (Single Pack)
- Connector & pin- configuration : 4-pin PWM I Rotational speed : 1500 RPM
- Cable length : 40cm I Acoustical noise : 25,8 dB(A)
- Blade geometry : Pressure-optimised Nine-Blade Design with Vortex-Control Notches
- Max. input power : 2, 4 W I Operating voltage : 12V
- 6 Year Warranty
Original price was: ₹1,899.00.₹1,659.00Current price is: ₹1,659.00.
Featuring a round frame designed for use on CPU coolers and now designated as NF-P14r (r for round frame), the classic NF-P14r is a long-standing favourite among enthusiast users around the world and helped to found Noctua’’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14r premium fan. Its industry grade SSO-Bearing bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P14r redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1500rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.

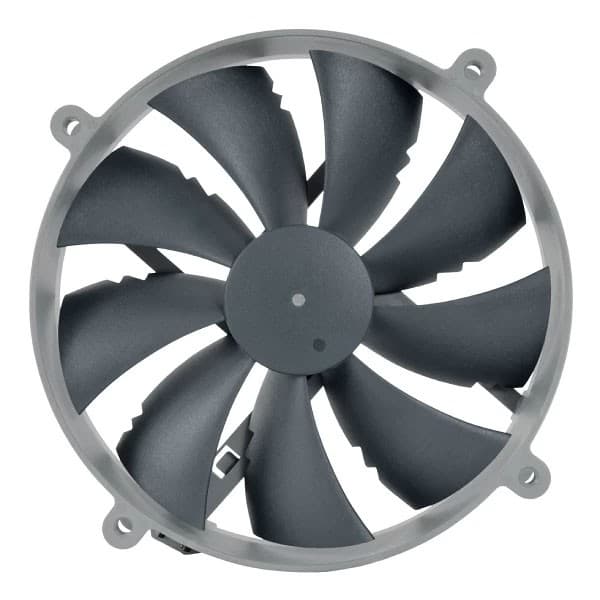

Round 140mm frame with 120mm mounting holes
Using a round frame with the same hole-spacing as common 120mm fans and producing more airflow due to its larger diameter, the NF-P14r is a perfect upgrade for 120mm CPU or case fans.
|
|
|
|
|
|---|---|---|---|
Pressure-optimised Nine-Blade DesignSpecifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P14’s nine-blade impeller provides outstanding pressure and airflow performance. |
SSO-BearingCombining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua’s time-tested technology has become synonymous with supremely quiet operation and exceptional long-term stability. |
Vortex-Control NotchesNoctua’s signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan’s noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear. |

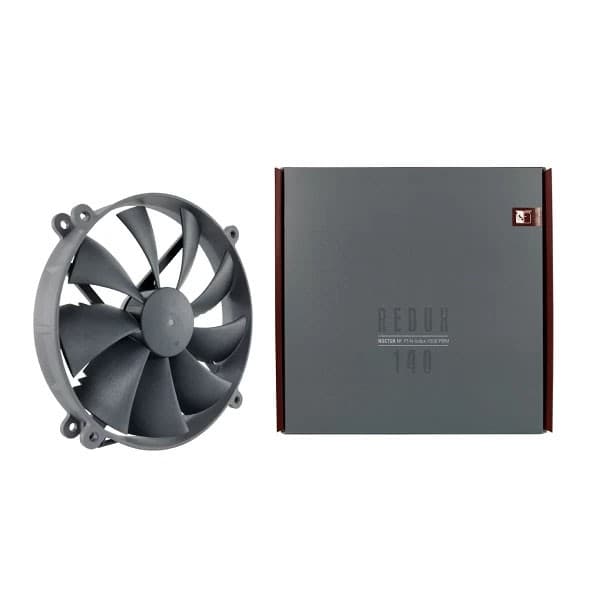

Scope of delivery
|
| Size | 140x140x25 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 40cm |
| Bearing | SSO-Bearing |
| Rotational speed (+/- 10%) | 1500 RPM |
| Min. rotational speed (PWM, +/-20%) | 450 RPM |
| Airflow | 133,7 m³/h |
| Acoustical noise | 25,8 dB(A) |
| Static pressure | 1,91 mm H₂O |
| Max. input power | 2,4 W |
| Max. input current | 0,2 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 3 × 12 cm |
| Brands | |
| Fan Size | |
| FAN Speed | |
| Case Fan Pack | |
| EAN / UPC Code | |
| Warranty |
