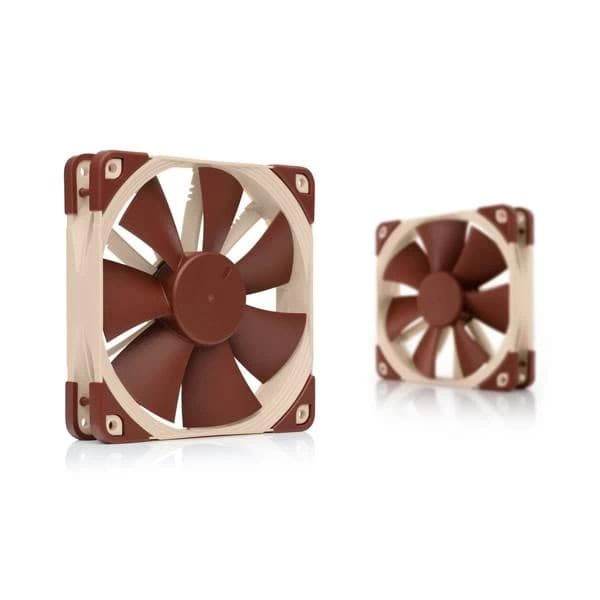

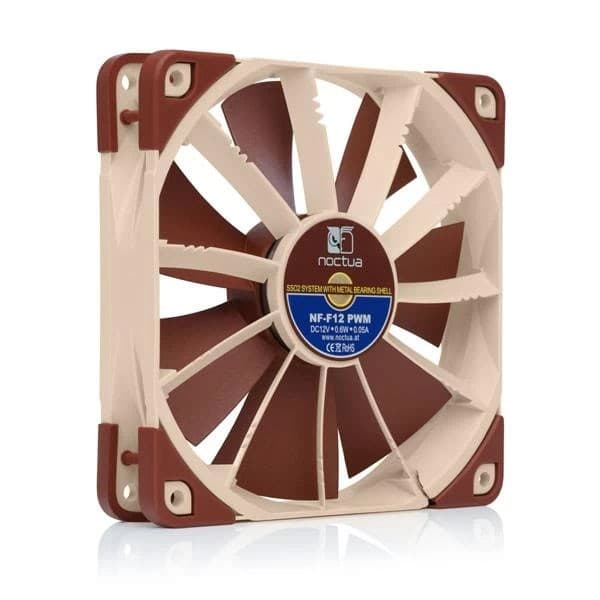

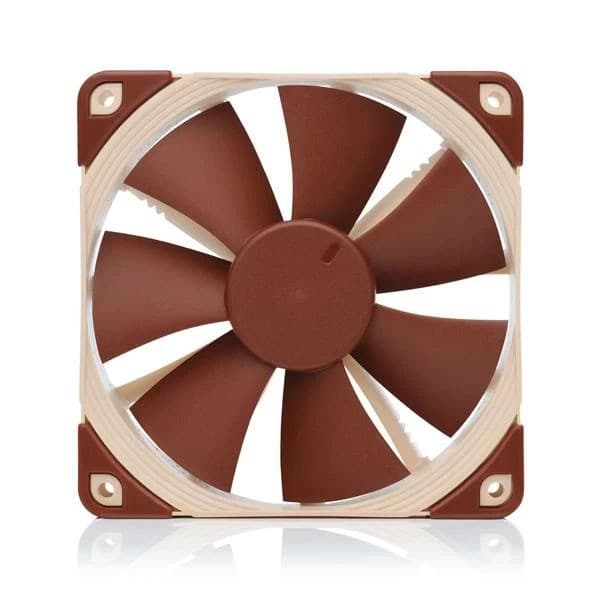

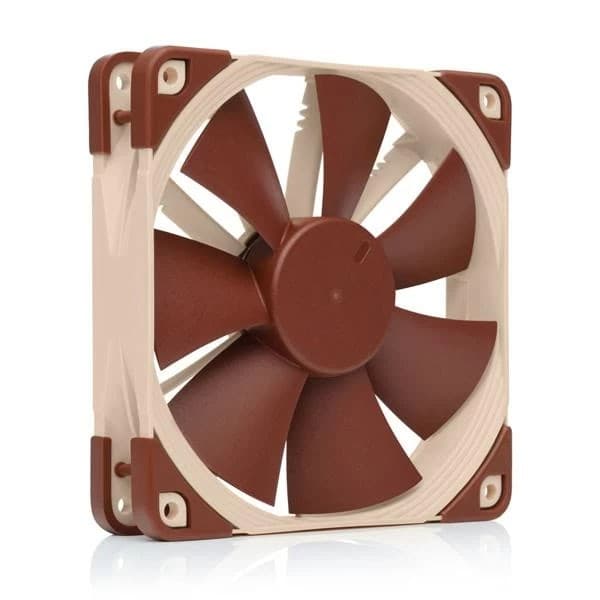

Noctua NF-F12 PWM 120mm Cabinet Fan (Single Pack)
- Size : 120x120x25 mm
- Connector & pin configuration 4-pin PWM
- Low-Noise Adapter (L.N.A.)
- 4 Vibration-Compensators
Original price was: ₹2,599.00.₹1,979.00Current price is: ₹1,979.00.
Noctua High Performance PWM Fan, With SSO2 Bearing Featuring High Airflow, 4 Pin PWM, Upto 1500 RPM, The NF-F12 PWM Comes in a Single Pack
Features
Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua’s new, custom designed PWM IC for fully automatic control assures astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.
Focused Flow frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
|
|
|
|
|
|---|---|---|---|
Heptaperf ImpellerCustom designed for the new Focused Flow frame and to work in tandem with the eleven stator guide vanes, the NF-F12’s seven blade Heptaperf impeller has been carefully optimised to achieve a perfect balance between power and quietness. |
SSO2 bearingThe NF-F12 is the first fan to feature the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |
Varying Angular Distance and Vortex Control NotchesThe NF-F12’s stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan’s sound pattern more agreeable to the human ear. |

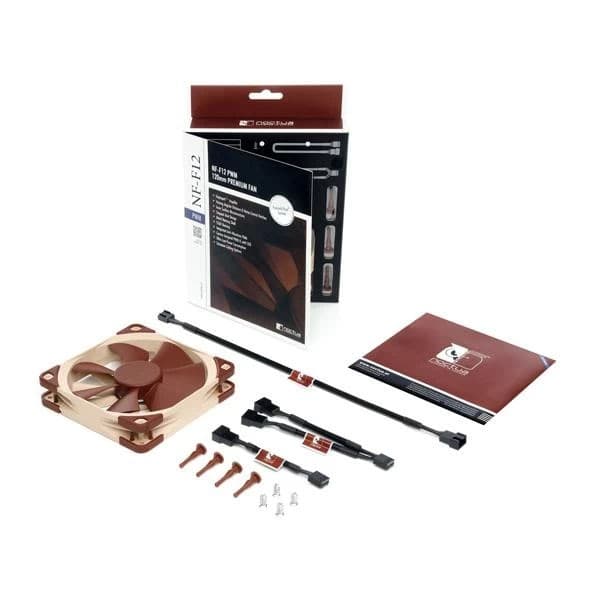

Scope of Delivery
|
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTTF rating of more than 150.000 hours and the entire NH-U14S package comes with a full 6-year manufacturer’s warranty.
| Size | 120x120x25 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | Heptaperf™ |
| Frame technology | Focused Flow™ |
| Rotational speed (+/- 10%) | 1500 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1200 RPM |
| Min. rotational speed (PWM, +/-20%) | 300 RPM |
| Airflow | 93,4 m³/h |
| Airflow with L.N.A. | 74,3 m³/h |
| Acoustical noise | 22,4 dB(A) |
| Acoustical noise with L.N.A. | 18,6 dB(A) |
| Static pressure | 2,61 mm H₂O |
| Static pressure with L.N.A. | 1,83 mm H₂O |
| Max. input power | 0,6 W |
| Max. input current | 0,05 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 3 × 12 cm |
| Brands | |
| Fan Size | |
| FAN Speed | |
| Case Fan Pack | |
| EAN / UPC Code | |
| Warranty |
