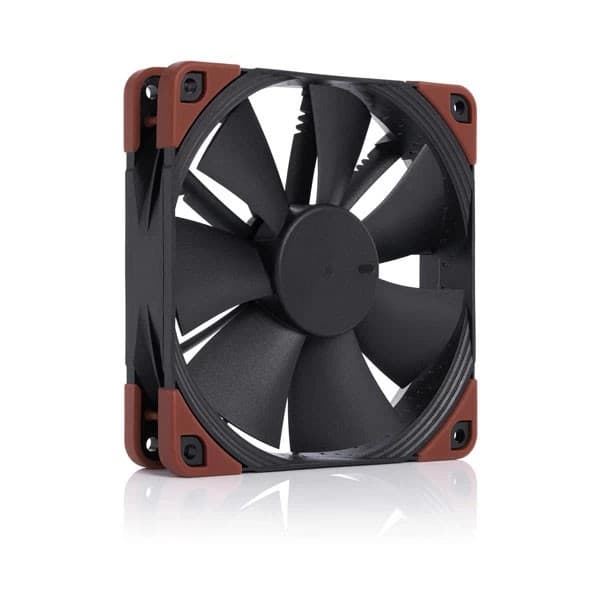

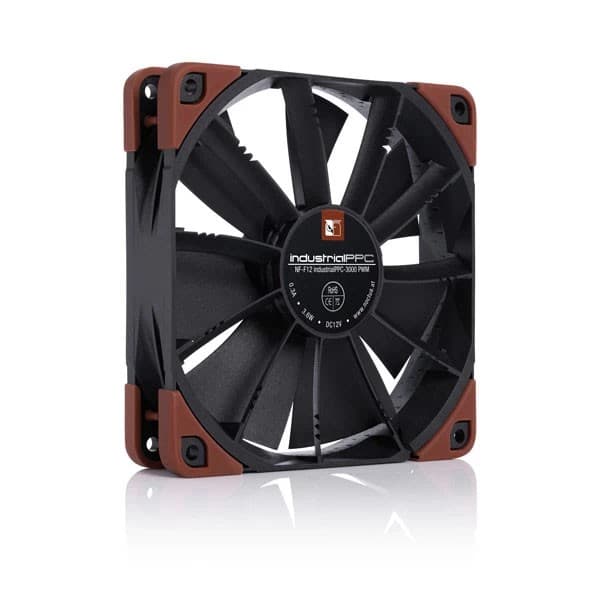

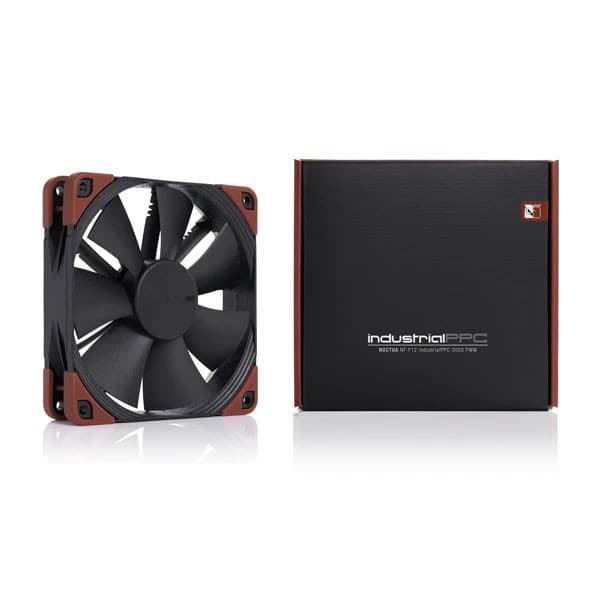

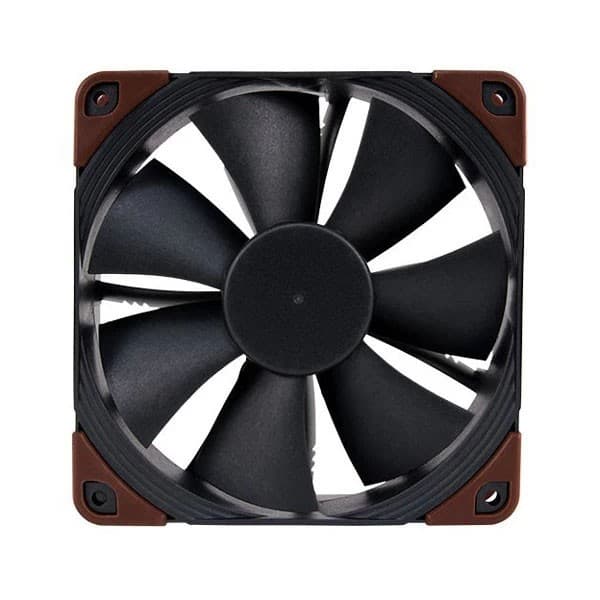

Noctua NF-F12 IndustrialPPC-3000 Cabinet Fan (Single Pack)
- Size 120x120x25 mm
- Connector & pin-configuration 4-pin PWM
- Material Fibre-glass reinforced polyamide
- Blade geometry Heptaperf
Original price was: ₹5,000.00.₹2,195.00Current price is: ₹2,195.00.
Noctua Industrial PPC-3000 Series Extreme Performance Chassis Fan, The NF-F12 Industrial PPC is a Revolutionary Upgrade Over its Previous Iteration, Providing Twice as Fast RPM Speeds And Airflow.
Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds. Unless you specifically require the higher speeds and performance of the industrialPPC versions, we recommend using models of our other product lines (chromax if you prefer black fans) instead.
Award-winning NF-F12 design
Having received more than 150 awards and recommendations from the international press, Noctua’s NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
|
|
|
|
|
|---|---|---|---|
3000rpm industrialPPC versionRunning twice as fast as the 1500rpm retail version, the NF-F12 industrialPPC-3000 PWM provides extreme airflow and pressure performance. Combined with the industrialPPC series’ robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications. |
Certified IP52 water- and dust protectionThanks to a special varnish coating that covers the motor and PCB, the NF-F12 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute. |
Fibre-glass reinforced polyamide constructionBoth the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans. |
Three-phase motor designWhile most axial fans use single-phase motors with 4 slots, Noctua’s industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency. |
6-year manufacturer’s warranty
| Product Details | |
| Notes and warnings | The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds. Unless you specifically require the higher speeds and performance of the industrialPPC versions, we recommend using models of our other product lines (chromax if you prefer black fans) instead. |
| FAN Specification | |
| Size | 120x120x25 mm |
| Mounting hole spacing |
105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 40cm |
| Bearing | SSO2 |
| Frame technology | FocusedFlow™ |
| Material | Fibre-glass reinforced polyamide |
| Ingress protection | IP52 |
| Motor type | Three-phase |
| Rotational speed (+/- 10%) | 3000 RPM |
| Min. rotational speed (PWM, +/-20%) | 750 RPM |
| Airflow | 186,7 m³/h |
| Acoustical noise | 43,5 dB(A) |
| Static pressure | 7,63 mm H₂O |
| Max. input power | 3,6 W |
| Max. input current | 0,3 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |
|
| Warranty | 6 years |
| Note | ***Features, Price, and specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 3 × 12 cm |
| Brands | |
| Fan Size | |
| FAN Speed | |
| Case Fan Pack | |
| EAN / UPC Code | |
| Warranty |
