₹1,120.00
Out of stock
Email when stock available
Feature
- Flow Acceleration Channels; Reduced Motor Hub Size
- Integrated Anti-Vibration Pads; Smooth Commutation Drive 2; SSO2 Bearing
- Low-Noise Adaptor for full flexibility
- 3 to 2-pin Adaptor and Polarity Protection; .Thanks to its streamlined, compact motor design, the Noctua NF-A4x10’s motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10’s superior airflow and pressure performance.
- Extensive cabling options The NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise

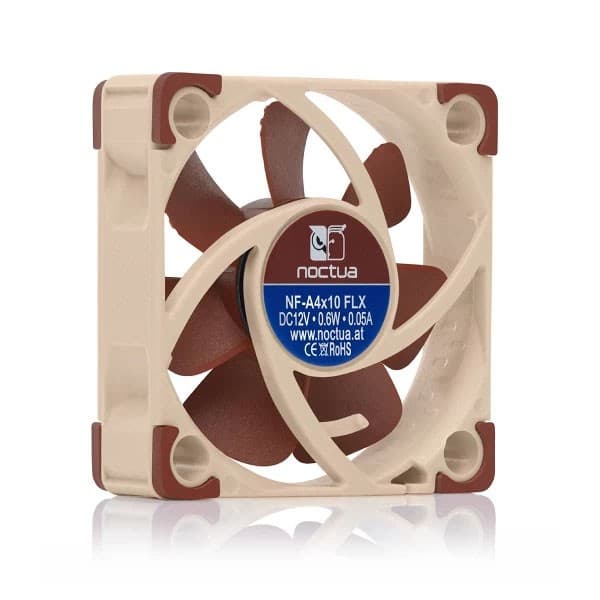

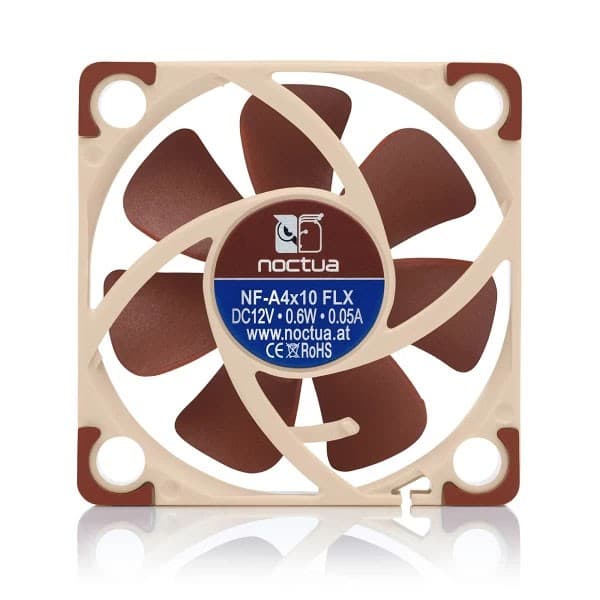

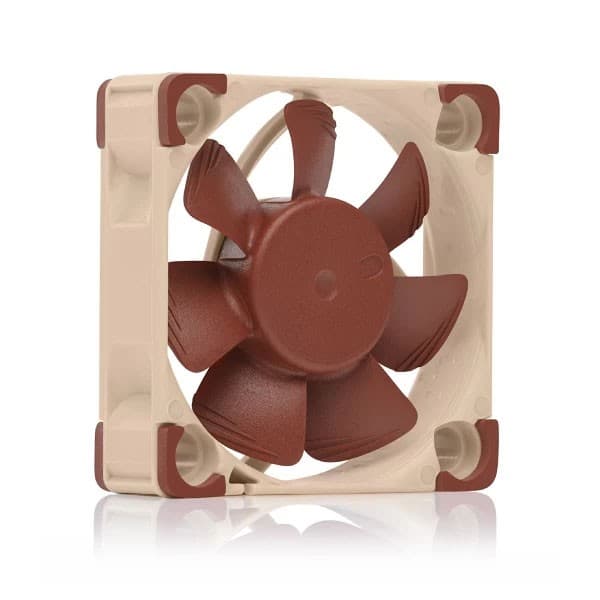

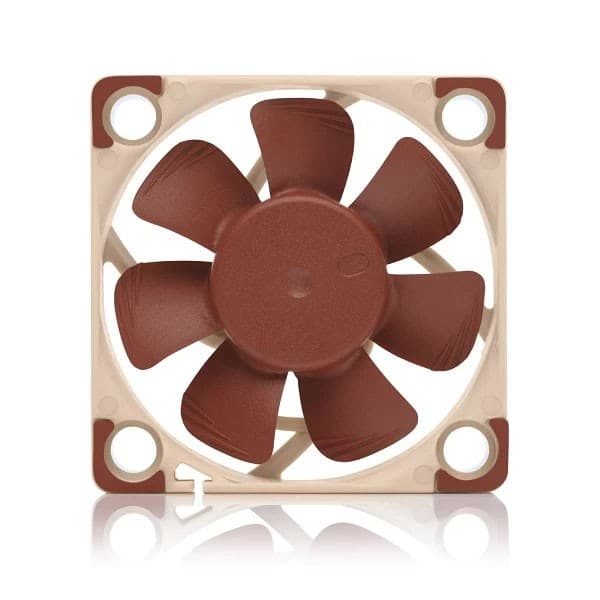

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x10 FLX is a highly optimised, premium quality quiet fan in 40x10mm size. Smooth Commutation Drivetechnology and Noctua’s reference class SSO2 bearings ensure superb running smoothness and excellent long-term stability. Topped off with modular cabling and a Low-Noise Adaptor and OmniJoin Adaptor Set,, the NF-A4x10 is a premium choice for the highest demands.
AAO frame
Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency.
|
|
|
|
|
|---|---|---|---|
Integrated Anti-Vibration PadsIntegrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks. |
SSO2 BearingThe NF-A4x10 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |
Reduced motor hub sizeThis allows for more blade surface area and thus contributes to the NF-A4x10’s superior airflow and pressure performance. |
Scope of delivery
|
| Size | 40x40x10 mm |
| Mounting hole spacing | 32x32 mm |
| Connector & pin-configuration | 3-pin |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 4500 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 3700 RPM |
| Airflow | 8,2 m³/h |
| Airflow with L.N.A. | 6,6 m³/h |
| Acoustical noise | 17,9 dB(A) |
| Acoustical noise with L.N.A. | 12,9 dB(A) |
| Static pressure | 1,78 mm H₂O |
| Static pressure with L.N.A. | 1,21 mm H₂O |
| Max. input power | 0,6 W |
| Max. input current | 0,05 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |

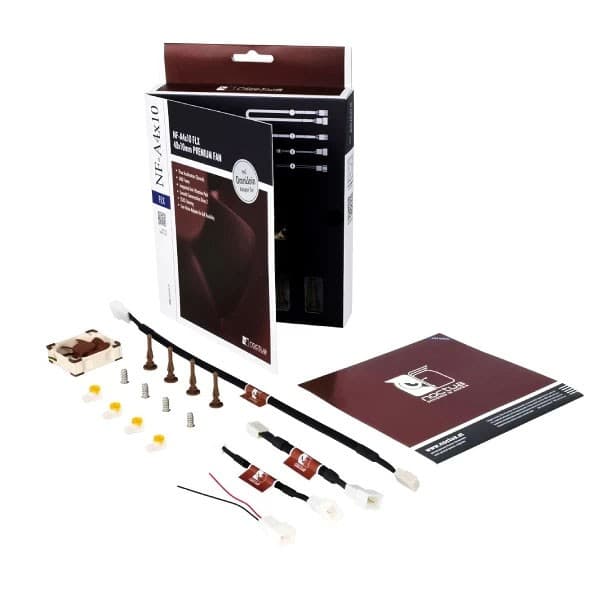

| Scope of delivery | Low-Noise Adaptor (L.N.A.) 3:2 Pin Adaptor OmniJoin Adaptor Set 30cm Extension Cable 4 Vibration-Compensators 4 Fan Screws |
| Warranty | 6 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 3 × 12 cm |
| Brands | |
| Fan Size | |
| FAN Speed | |
| Case Fan Pack | |
| EAN / UPC Code | |
| Warranty |
