MSI Z590-A PRO Intel Motherboard

Brands
  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

15,169.00

Out of stock

Email when stock available

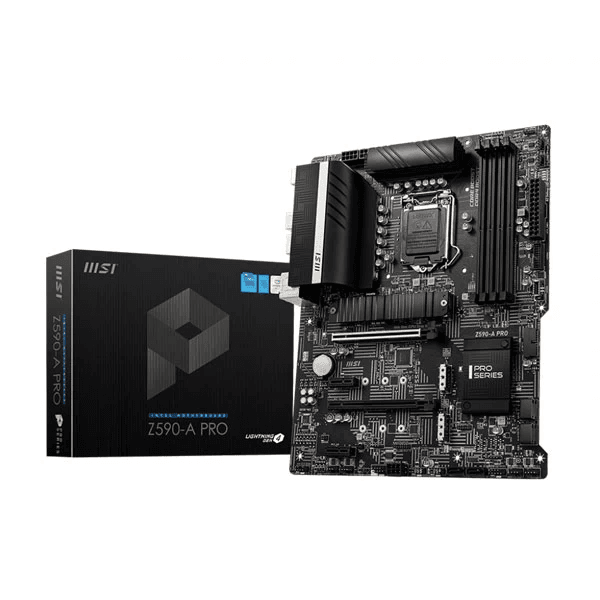

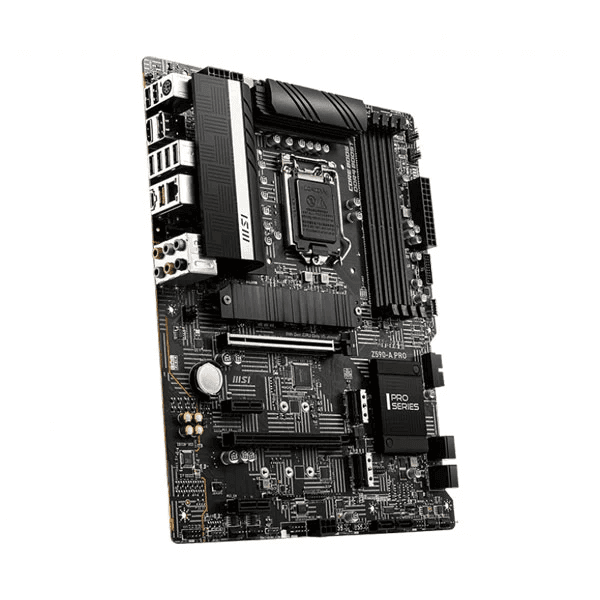

MSI Z590-A PRO Intel Motherboard

MSI Intel 11th Gen Core Series ATX Motherboard, The Z590-A-PRO Features Intel 2.5 Gigabit Ethernet, Turbo USB, Quality VRM and DDR4 Speeds Upto 5333 MHz.

Features

Z590-A PRO

  • MSI Z590-A PRO Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
Z590 PRO WIFI _2_1


MSI

MSI: For Gamers & Creators

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

MSI Z590-A PRO Motherboard

Built to Last

For creative professionals looking to update their system, the MSI Z590-A PRO offers a quality platform with the capacity to support a broad spectrum of both cutting-edge and legacy hardware.

  • Supports Intel Core 11th & 10th Gen Processors (LGA 1200)
  • 12 Duet Rail VRM with 55A DrMOS
  • Lightning Gen4 & Turbo Gen3 M.2 slots with Shield Frozr
  • PCI-e 4.0 x16 (CrossFire via PCI-e 3.0 x16)
  • 4 DIMMS with DDR4 Boost: Dual Channel (128GB Max. / 5333MHz OC)
  • Intel I225-V 2.5G LAN

Z590 Chipset, 12 Duet Rail VRM, Smart Cooling, PCI-e 4.0 x16

Supports Intel Core 11th Gen Processors

12+2+1 Power Design

Integrated Cooling

Fortified PCI-e 4.0 x16

Supports Intel Core 11th Gen Processors

The Z590-A PRO WIFI motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors.

  • Form Factor: ATX
  • Socket Type: LGA 1200
  • Chipset: Intel Z590



12+2+1 Power Design

With its paired 8+4 pin power connectors and exclusive Core Boost technology, the Z590-A PRO is able to sustain heavy CPU power loads to support system-demanding settings:

  1. 12 Duet Rail CPU Power System, DrMOS 55A
  2. 1-Phase SA Power
  3. 2-Phase GT Power
  4. Digital PWM IC



Integrated Cooling

VRM Cooling: Features an extended heatsink and 7W/mK thermal pad.

  • PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
  • SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
  • System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.



Fortified PCI-e 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

  • 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)
  • 1 x PCI-e 3.0 x16 slot (CrossFire supported)
  • 2 x PCI-e 3.0 x1 slots



Cutting-Edge Performance & Hardware Support

Gen4 & Gen3 M.2 Connectors

M.2 Shield Frozr

4 x DDR4 Dual Channel (5333 MHz OC)

Wi-Fi 6E & Bluetooth 5.2

Gen4 & Gen3 M.2 Connectors

The Z590-A PRO motherboard features MSI’s latest M.2 slots (Intel Optane supported):

  • * 1 x Gen4 x4 64Gb/s slot
  • * 2 x Gen3 x4 32Gb/s slots



*M.2 specifications may vary subject to the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR4 Dual Channel (5333 MHz OC)

DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are tested by MSI OC LAB and can be easily enabled with auto power settings for optimized memory speed and stability.

Connectivity

LAN: An Intel I225-V 2.5Gbps LAN controller delivers premium network capabilities.

USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at unpredicted rates: 20Gb/s.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Processor Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200
Chipset Intel® Z590 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
    • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
    • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5333 MHz
      • 1DPC 2R Max speed up to 4700+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 2x PCIe x16 slots
    • Support x16/ x4
    • PCI_E1 (from CPU)
      • Supports up to PCIe 4.0 for 11th Gen Intel® CPU
      • Supports up to PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E3 (from Z590 chipset)
      • Supports up to PCIe 3.0
  • 2x PCIe 3.0 x1 slots (from Z590 chipset)
Onboard Graphics
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 12
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 12
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Multi-GPU Supports 2-Way AMD® CrossFire Technology
Storage
  • 6x SATA 6Gb/s ports (from Z590 chipset)
  • 3x M.2 slots (Key M)
    • M2_1 slot (from CPU) 1
      • Available only on 11th Gen Intel® CPU
      • Supports up to PCIe 4.0x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_21, M2_32 slots (from Z590 chipset)
      • Support up to PCIe 3.0x4
      • Support up to SATA 6Gb/s
      • Support 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready
  • Support Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB Intel® Z590 Chipset
  • Intel® Z590 Chipset
    • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
    • 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
  • USB 2.0 Hubs GL850G
    • 4x USB 2.0 Type-A ports on the back panel
    • 4x USB 2.0 ports are available through the internal USB 2.0 connectors
Audio Realtek®ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN 1x Intel® I225-V 2.5Gbps LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 1x 6-pin ATX PCIe power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Tuning controller connector
  • 1x TBT connector (Supports RTD3)

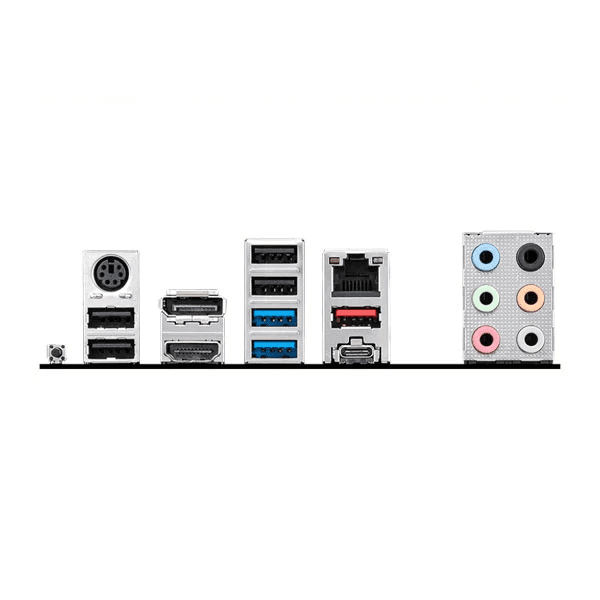

Back panel ports
  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 2.0
  4. LAN port
  5. Audio connector
  6. Flash BIOS Button
  7. USB 2.0
  8. HDMI
  9. USB 3.2 Gen 1 5Gbps Type-A
  10. USB 3.2 Gen 2x2 20Gbps Type-C
  11. USB 3.2 Gen 2 10Gbps Type-A
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Weight 1 kg
Dimensions 30 × 24 × 6 cm
