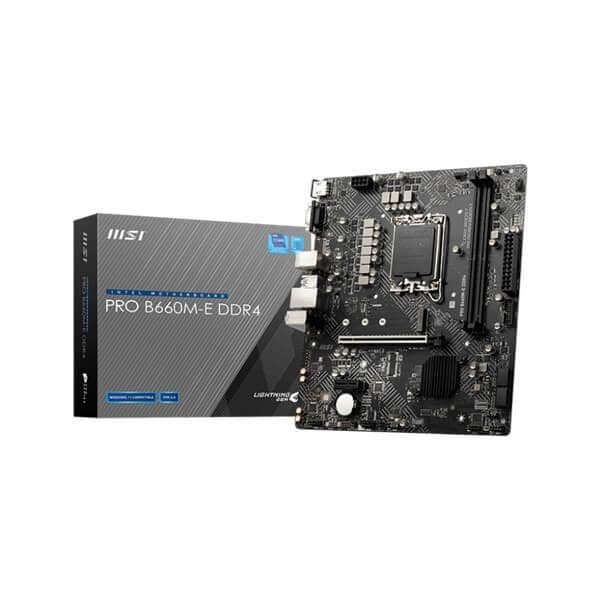

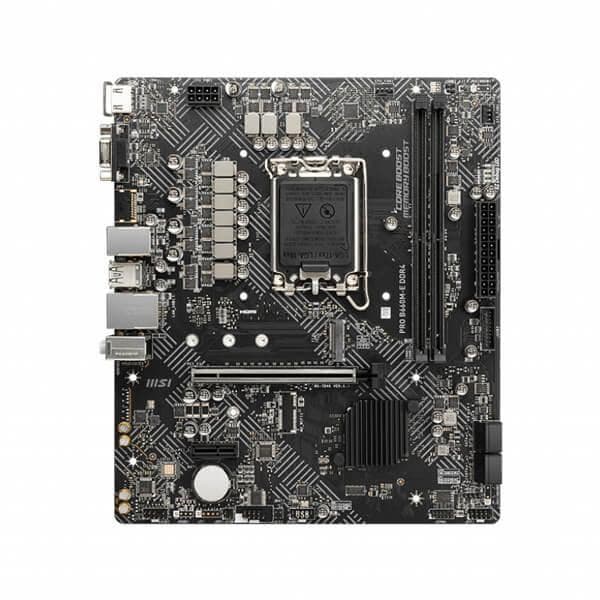

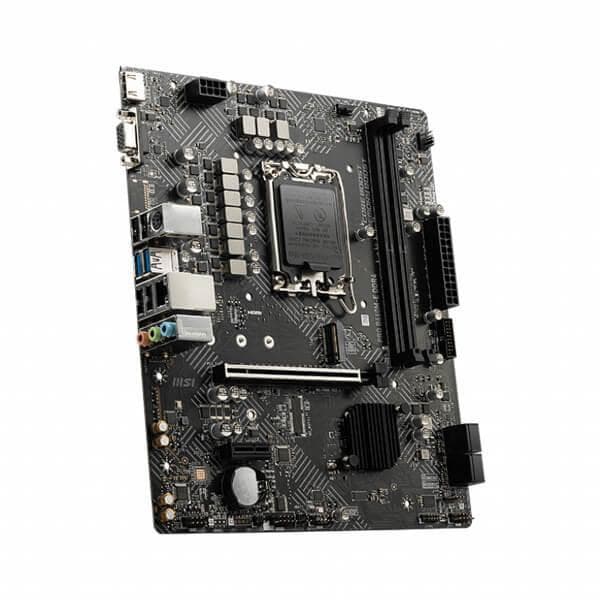

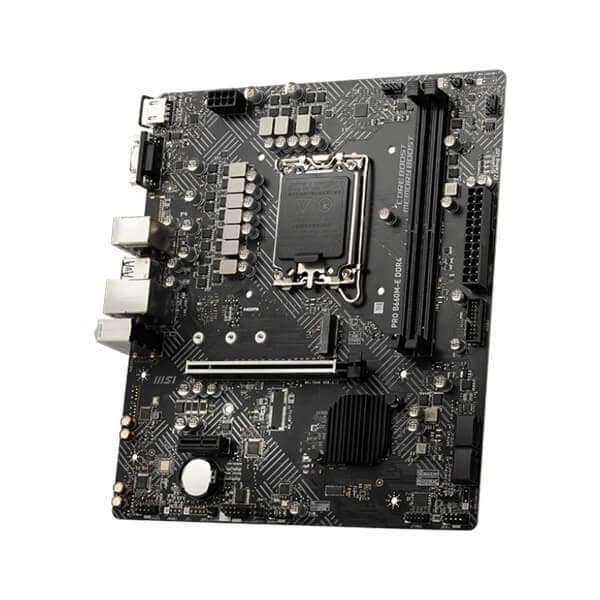

MSI PRO B660M-E DDR4 Intel Motherboard

Brands
  • B660M-E Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • B660M-E Supports DDR4 Memory, up to 4600+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

Original price was: ₹14,400.00.Current price is: ₹8,799.00.

Out of stock

Email when stock available

MSI PRO B660M-E DDR4 Intel Motherboard

Features:

  • MSI PRO B660M-E Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • MSI PRO B660M-E Supports DDR4 Memory, up to 4600+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: B660M-E Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

PRO_B660M-E_DDR4_A+_Banner
PRO_B660M-E_DDR4_MAIN
MSI PRO A+ Logo

MSI Business & Productivity

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

PRO B660M-E DDR4

Business Elegance

The PRO B660M-E DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset outfitted with Gen3 M.2 storage capability.

  • Supports Intel Core 12th Gen Processors (LGA 1700)
  • 2 DIMMs with DDR4 Boost: Dual Channel (64GB Max. / 4600MHz OC)
  • 1 x PCI-e 4.0 x16 (Steel Armor) Graphics Card Slot
  • Turbo Gen3 M.2 Slot
  • 7.1 HD Audio with Audio Boost
  • Intel 1G LAN

B660 Chipset, Smart Cooling, DDR4 Memory Boost

PRO_B660M-A_DDR4_1

PRO_B660M-E_DDR4-2

PRO_B660M-E_DDR4_5

Supports Intel Core 12th Gen Processors

The PRO B660M-E DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.



  • Form Factor: Micro-ATX
  • Socket Type: LGA 1700
  • Chipset: Intel B660



Intel B660 chipset motherboards support memory overclocking but not CPU overclocking.

Integrated Cooling Features

Chipset Heatsink: Provides passive cooling.

Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures

2 x DDR4 Dual Channel (4600+ MHz Overclocked*)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 4600+ MHz depending on memory module capability.

PCI-e 4.0 x16 Slot, Gen3 Storage Performance, Intel 1G LAN Controller

PRO_B660M-E_DDR4_3

PRO_B660M-E_DDR4_4

PRO_B660M-E_DDR4_6

Fortified PCI-e 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:



  • 1 x PCI-e 4.0 x16 slot (with Steel Armor)
  • 1 x PCI-e 3.0 x1 slot



Gen3 M.2 Connector

The PRO B660M-E DDR4 motherboard features an MSI Turbo Gen3 M.2 slot:



  • 1 x Gen3 x4 32Gb/s slot



*Supports SATA 6Gb & 2242, 2260, and 2280 storage devices.

Intel 1G LAN Controller

Intel 1G LAN: An Intel 1Gbps LAN controller delivers a robust network experience.

4K & Legacy Video Support: Includes HDMI and VGA ports for both digital and legacy display.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Processor
  • Supports 13th and 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  • Processor socket LGA1700
Chipset Intel® B660 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB 1
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 4600+ MHz
  • 1DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe x16 slot (From CPU)
  • Supports up to PCIe 4.0 x16
  • 1x PCIe x1 slot (From B660 chipset)
  • Supports PCIe 3.0 x1
Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
  • 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
SATA Ports 4x SATA 6Gb/s ports (From B660chipset)
M.2 SSD Slot
  • 1x M.2 slot (Key M, from B660 chipset) 1
  • Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio Realtek® ALC892/ ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN 1x Intel® I219V 1Gbps LAN controller
Power Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
USB Intel® B660 Chipset
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Fan Connectors
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
System Connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
Jumpers 1x Clear CMOS jumper
LED Features 4x EZ Debug LED
Back panel ports
  • HDMI
  • VGA
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps
  • Type-A
  • LAN port
  • Audio connector
  • USB 2.0
Dimensions
  • M-ATX Form Factor
  • 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Weight 1 kg
