MSI MPG Z790 Edge WIFI DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors
- Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5333+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2 - Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal
Original price was: ₹49,999.00.₹31,299.00Current price is: ₹31,299.00.
MSI MPG Z790 Edge WIFI DDR4 Motherboard
Features:
MSI MPG Z790 EDGE WIFI DDR4
- MSI MPG Z790 Edge WIFI DDR4 Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
- MSI MPG Z790 Edge WIFI DDR4 Supports DDR4 Memory, up to 5333+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Z790 Edge Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Overview:
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MPG Z790 EDGE WIFI DDR4
Perform in Style

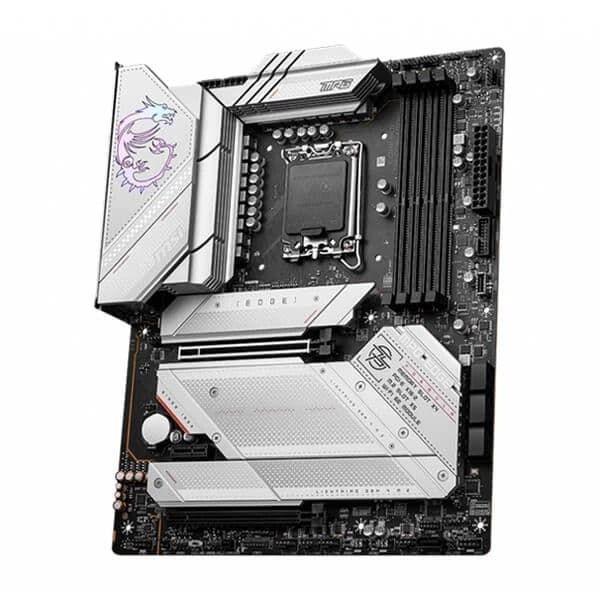

The MPG Z790 EDGE WIFI DDR4 is a gaming-oriented ATX motherboard constructed around the latest Intel Z790 chipset that delivers both performance and style.
- Supports Intel Core 12th & 13th Gen Processors (LGA 1700)
- 16 phases Duet Rail Power System CPU power with 90A SPS
- 1 x PCI-e 5.0 x16 slot
- 2 x PCI-e 4.0 x16 slots
- 4 x DDR4 DIMMs with Memory Boost: Dual Channel (128GB Max. / 5333+MHz OC)
- 5 x Lightning Gen4 M.2 slots with Shield Frozr
- 8-Channel (7.1) USB High Performance Audio with Audio Boost 5
- Intel 2.5G LAN, Wi-Fi 6E & Bluetooth 5.2
|
|
|
|
|
|---|---|---|---|
Supports Intel Core 12th & 13th Gen ProcessorsThe MPG Z790 EDGE WIFI DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1700 Chipset: Intel Z790 |
16+1+1 Duet Rail Power System with 90A Smart Power StageWith its 8 dual pin power connectors exclusive Core Boost technology, the MPG Z790 EDGE WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings:
|
Integrated Cooling FeaturesVRM Cooling: Features an extended heatsink and 7W/mK thermal pads. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. |
Fortified PCI-e 5.0 x16 SlotMSI PCI Express Steel Armor slots are secured to the motherboard with SMT solder welding to improves signal clarity. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**) 1 x PCI-e 4.0/3.0 x16 slot* 1 x PCI-e 3.0 x1 slot *Support x16/x4 **MSI Surface Mount Technology (SMT) solder welding improves signal clarity. |
|
|
|
|
|
|---|---|---|---|
4 x DDR4 Dual Channel (5333+ MHz OC)Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 5333 MHz, supports Intel XMP. |
Gen4 M.2 ConnectorsThe MPG Z790 EDGE WIFI DDR4 motherboard features MSI’s Gen4 M.2 slots: 5 x Gen4 x4 64Gb/s slots |
M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. Tool-Free M.2 Shield Frozr*: MSI patented Shield Frozr cover feature a tool-free design so users don’t have to worry about lost screws or overtightening. |
Wi-Fi 6E & Bluetooth 5.22.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s. HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output. |
| Chipset | INTEL Z790 |
| CPU SUPPORT | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ 1x DisplayPort Support HDMI™ 2.1, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
| EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 5x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 7x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED 1x EZ LED Control switch |

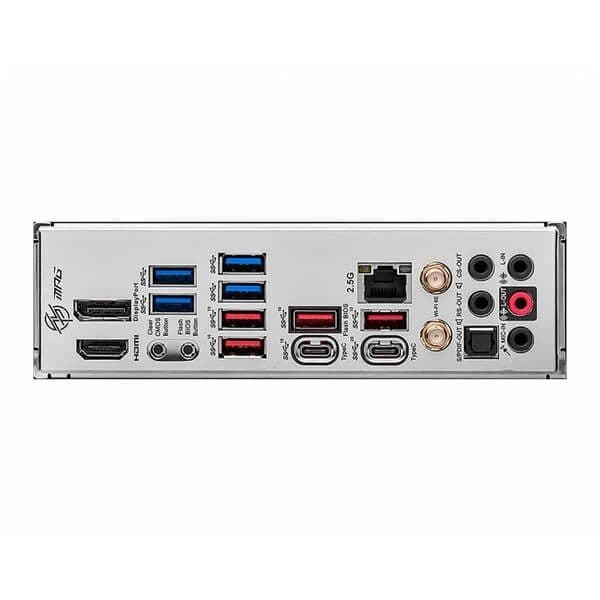

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
