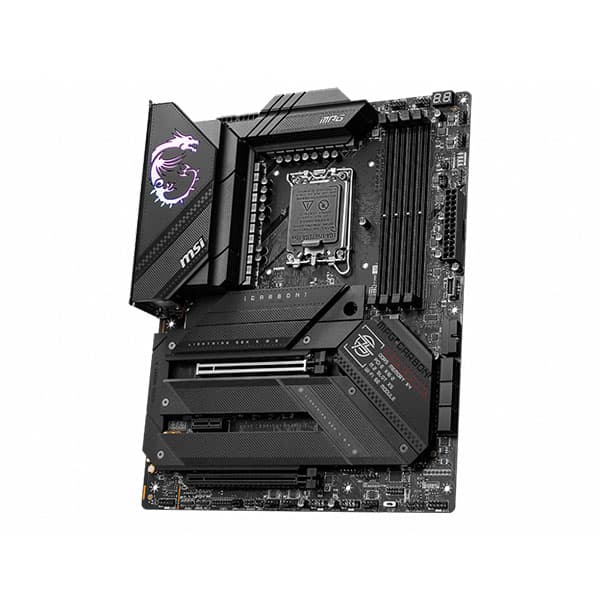

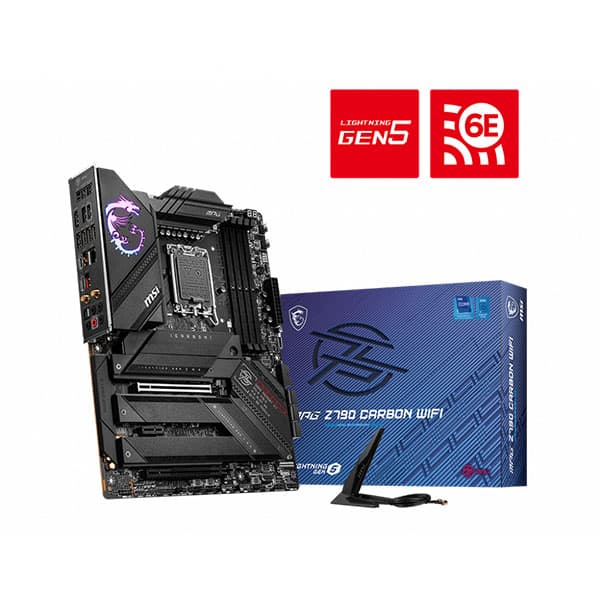

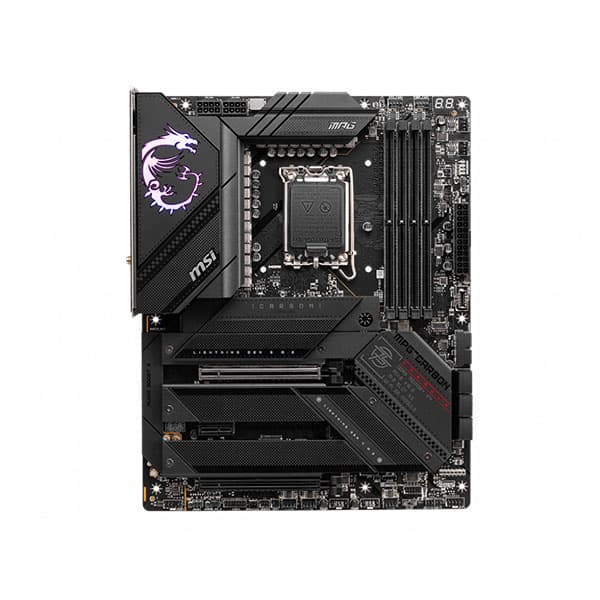

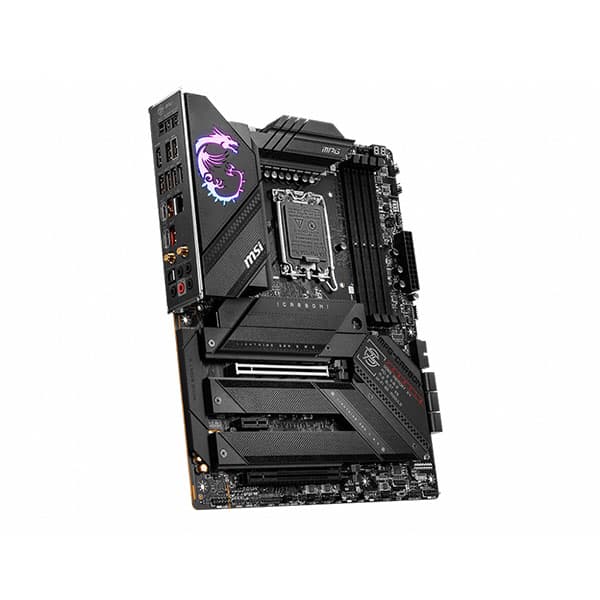

Msi Mpg Z790 Carbon WIFI Lga 1700 Intel Ddr5 ATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors
- Z790 CARBON Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 8-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Original price was: ₹60,750.00.₹45,949.00Current price is: ₹45,949.00.
Msi Mpg Z790 Carbon Wifi Lga1700 Atx Motherboard (MPG-Z790-CARBON-WIFI)
FEATURES
- MSI Z790 CARBON Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
- Z790 CARBON Latest DDR5 Memory – 7600+(OC): A huge step of DDR performance enhancement with the latest DDR5 memory.
- Premium Thermal Design: On board M.2 Shield Frozr.
- Lightning Gen 5: The latest PCIE 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speed.
- Screwless M.2 Shield Frozr: The patent-pending design provides the easiest way of M.2 installation.
- Wi-fi 6E: the latest wireless solution supports 6GHz spectrum. MU-MIMO and BSS color technology, delivering speeds up to 2400 Mbps.
- 2.5G Network solution.
- Lightning USB 20G: Build in USB 3.2 Gen 2X2 port. offers 20 Gbps transmission speed 4X faster than USB 3.2 Gen1.
- Audio Boost 5.
- Core Boost: with premium layout and fully digital power design to support more cores and provide better performance.
- Memory Boost: Advanced technology to deliver pure date signals for the best performance, stability and compatibility.
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MPG Z790 CARBON WIFI
Perform in Style
The MPG Z790 CARBON WIFI is a gaming oriented ATX motherboard constructed around the latest Intel Z790 chipset that delivers both performance and style.
- Supports Intel Core 12th & 13th Gen Processors (LGA 1700)
- 19 phases direct CPU power with 105A SPS
- 1 x PCI-e 5.0 x16, 1 x PCI-e 4.0 x16
- 4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 7600+MHz OC)
- Lightning Gen 5 & Gen 4 M.2 Slots with Shield Frozr
- 8-Channel (7.1) USB High Performance Audio with Audio Boost 5
- USB 3.2 Gen 2×2 Type-C (20Gbps)
- Intel 2.5G LAN, Wi-Fi 6E & Bluetooth 5.2
Z790 Chipset, 19 direct CPU power, Smart Cooling, 1 x PCI-e 5.0 x16 Slot
|
|
|
|
|
|---|---|---|---|
Supports Intel Core 12th & 13th Gen ProcessorsThe MPG Z790 CARBON WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1700 Chipset: Intel Z790 |
Direct 19+1+1 phase VRM Power with 105A Smart Power StageWith its 8 pin dual power connectors and exclusive Core Boost technology, the MPG Z790 CARBON WIFI is able to sustain heavy CPU power loads to support system-demanding game settings: 1. Digital PWM IC 2. 19-Phase direct CPU power (105A) 3. 1-Phase GT Power 4. 1-Phase AUX Power |
Integrated Cooling FeaturesVRM Cooling: Features an Extended Heatsink design, MSI direct-touch heat pipe, extra choke thermal pads and 7W/mK MOSFET thermal pads for improved thermal dissipation. SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. PCB Cooling: Premium 8-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. |
Fortified PCI-e 5.0 x16 SlotMSI PCI Express Steel Armor slots are secured to the motherboard with SMT solder welding to improves signal clarity. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 5.0/4.0/3.0 x16 slot (with Steel Armor) 1 x PCI-e 4.0/3.0 x16 slot 1 x PCI-e 3.0 x1 slot *MSI Surface Mount Technology (SMT) solder welding improves signal clarity. |
DDR5 Memory Performance, Lightning Gen4 M.2, Shield Frozr, Wi-Fi 6E Connectivity
|
|
|
|
|
|---|---|---|---|
4 x DDR5 Dual Channel (7600+ MHz OC)Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7600 MHz, supports Intel XMP. |
Gen5 M.2 ConnectorsThe MPG Z790 CARBON WIFI motherboard features MSI’s latest M.2 slots: 1 x Gen5 x4 128Gb/s slot 4 x Gen4 x4 64Gb/s slots |
M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. Tool-Free M.2 Shield Frozr: MSI patented Shield Frozr covers feature a tool-free design so users don’t have to worry about lost screws or overtightening. |
Wi-Fi 6E & Bluetooth 5.22.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. |
| Chipset | INTEL Z790 |
| CPU SUPPORT | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB Memory Support 7600+(OC)/7400 (OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC) /4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz |
| EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 5x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 6x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 6x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen 2x2 Type C |
| LED FEATURE | 1x EZ LED Control switch 1x 2-Digit Debug Code LED 4x EZ Debug LED |

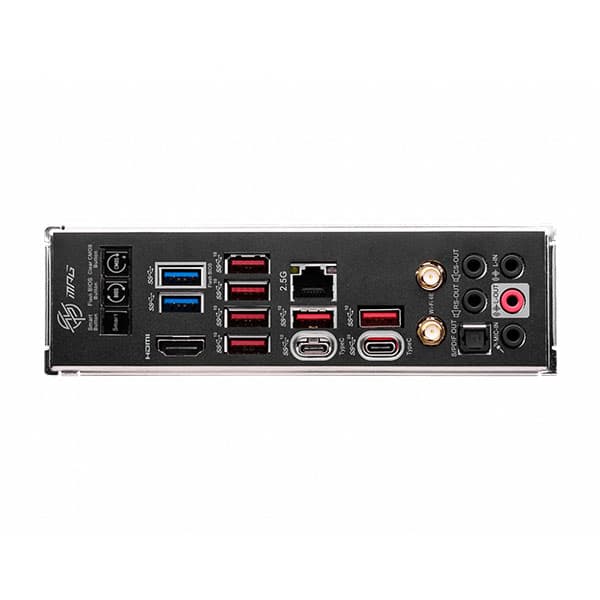

| BACK PANEL PORTS |
|
| PCB Dimension | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
