Sold Out

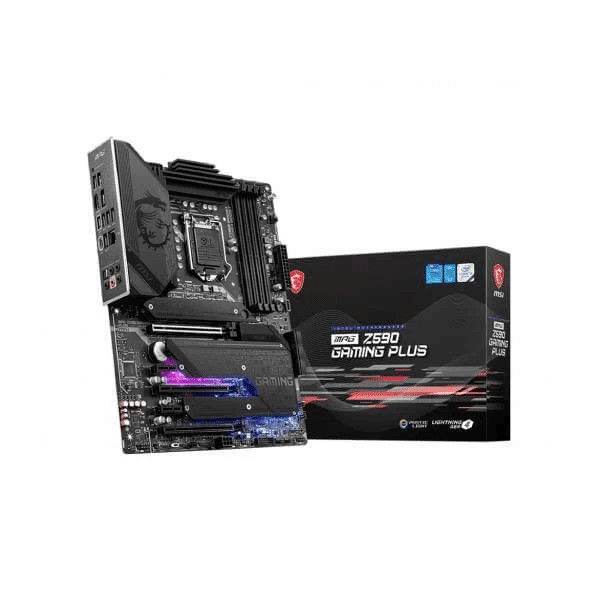

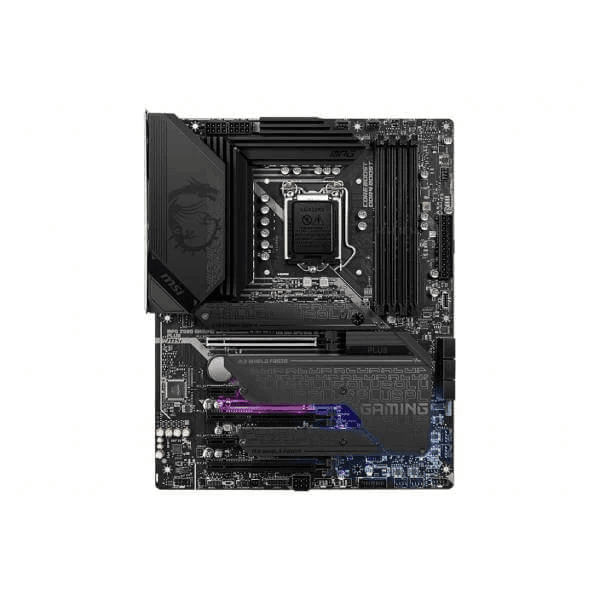

MSI MPG Z590 Gaming Plus Intel Motherboard

Name: Buy MSI MPG Z590 Gaming Plus Intel Motherboard - Computech Store
Brand: MSI
SKU: MPG Z590 GAMING PLUS
Price: 24100.00 INR
Availability: OutOfStock

Brands

Brand:

MSI

Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5333(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

... people are viewing this right now

Guaranteed Safe Checkout

₹24,100.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

The MSI MPG Series Z590 Gaming Plus is an ATX Motherboard, Featuring DDR4 5333 MHz Memory Support, 16 Phase Digital VRM, 6 Layer PCB, Intel 2.5 Gigabit Ethernet And Realtek ALC4080 Premium Audio.

Features

MPG Z590 GAMING PLUS

MSI Z590 GAMING PLUS Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Z590 GAMING PLUS Supports DDR4 Memory, up to 5333(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MPG Z590 GAMING PLUS

Smart Design, Smart Features

For PC connoisseurs looking to upgrade their game while keeping economy in mind, the MSI MPG Z590 GAMING PLUS offers a powerful yet versatile platform supporting a broad spectrum of the state-of-the-art system processors and gaming hardware without any Wi-Fi deadweight.

Supports Intel Core 11th & 10th Gen Processors (LGA 1200)
14 Duet Rail Power System with 75A SPS
Lightning Gen4 & Turbo Gen3 M.2 slots with Shield Frozr
1 x PCI-e 4.0 x16, 2x PCI-e 3.0 x16
4 DIMMS with DDR4 Boost: Dual Channel (128GB Max. / 5333MHz OC)
Intel I225-V 2.5G LAN & Intel I219-V 1G LAN

Z590 Chipset, 14 Duet Rail Power System, Smart Cooling, PCI-e 4.0 x16


Supports Intel Core 11th Gen Processors The MPG Z590 GAMING PLUS motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1200 Chipset: Intel Z590	14+1+1 Duet Rail Power System With its dual 8-pin power connectors and exclusive Core Boost technology, the MPG Z590 GAMING PLUS is able to sustain heavy CPU power loads to support system-demanding game settings: 1-Phase GT Power 14 Duet Rail CPU Power System, Smart Power Stage 75A Digital PWM IC 1-Phase SA Power	Integrated Cooling Features VRM Cooling: Features a heavy-plated MOS heatsinks, connecting heat pipe, and 7W/mK thermal pads. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.	Fortified PCI-e 4.0 x16 MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 1 x PCI-e 4.0/3.0 x16 slots (with Steel Armor) 2 x PCI-e 3.0 x16 slot (CrossFire supported) 2 x PCI-e 3.0 x1 slots

Cutting-Edge Performance & Powerful Connectivity


Gen4 & Gen3 M.2 Connectors The MPG Z590 GAMING PLUS motherboard features MSI’s latest M.2 slots (Intel Optane supported): * 1 x Gen4 x4 64Gb/s slot * 2 x Gen3 x4 32Gb/s slots *M.2 specifications may vary subject to the CPU installed.	M.2 Shield Frozr Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.	4 x DDR4 Dual Channel (5333 MHz OC) DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are tested by MSI OC LAB and can be easily enabled with auto power settings for optimized memory speed and stability.	Connectivity 2.5G LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at unpredicted rates: 20Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.

PROCESSOR	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel ® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200
CHIPSET	Intel® Z590 Chipset
MEMORY	4x DDR4 memory slots, support up to 128GB¹ Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)¹ Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel ® CPU (by JEDEC & POR)¹ Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOTS	3x PCIe x16 slots Support x16/x4/x4 PCI_E1 (From CPU) Supports up to PCIe 4.0 for 11th Gen Intel® CPU Supports up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3 & PCI_E5 (From Z590 chipset) Support up to PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 chipset) PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.
ONBOARD GRAPHICS	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
MULTI-GPU	Supports 2-Way AMD® CrossFire™ Technology
STORAGE	6x SATA 6Gb/s ports (From Z590 Chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From Z590 Chipset) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core ™ processors PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices
USB	Intel® Z590 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel) Hub-GL850G 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)
AUDIO	Realtek® ALC4080 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Intel® I225-V 2.5Gbps LAN controller
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3)
LED FEATURE	2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x EZ LED Control switch 4x EZ Debug LED
BACK PANEL PORTS	DisplayPort USB 3.2 Gen 1 5Gbps Type-A 2.5G LAN Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF Out
DIMENSIONS	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING	9 mounting holes
OPERATING SYSTEM	Support for Windows® 10 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Weight	2 kg
Dimensions	30 × 24 × 6 cm
Brands	MSI
Chipset	Z590
Motherboard Size	ATX
Socket	LGA 1200
Platform	Intel
Motherboard Series	MSI MPG
EAN / UPC Code	4719072802868
RAM Type	DDR4
Warranty	3 Years
