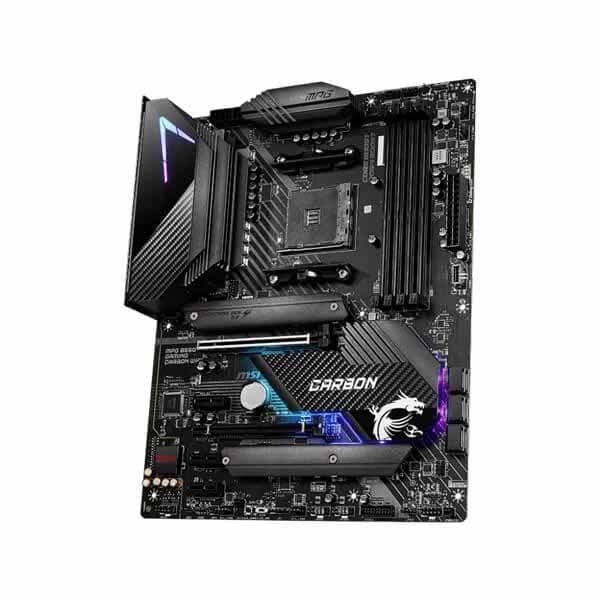

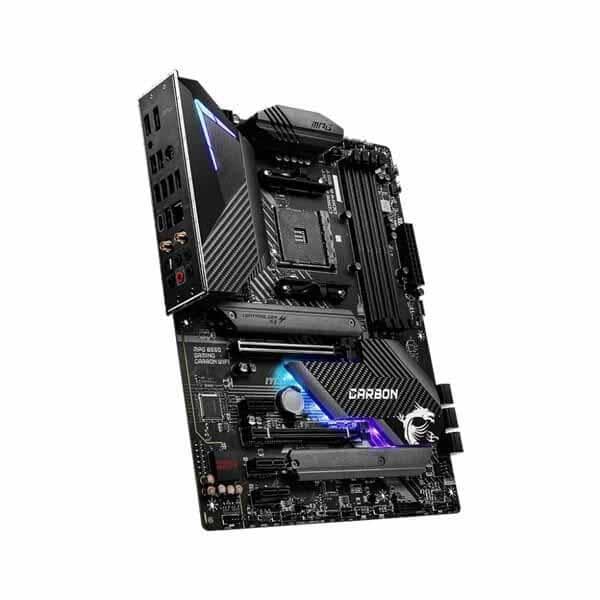

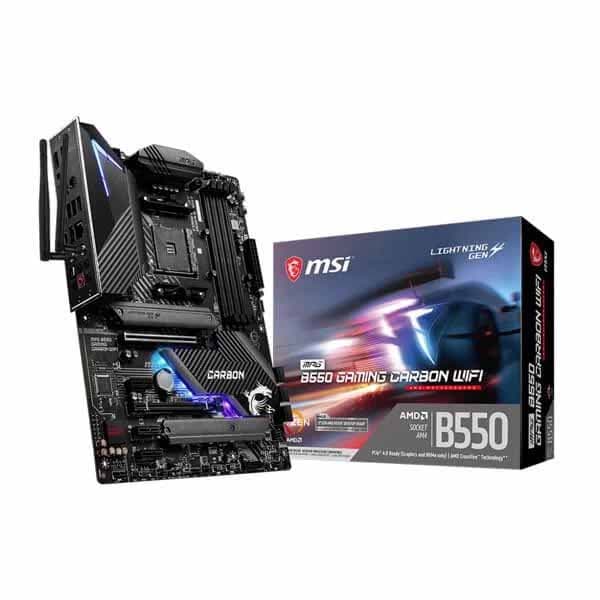

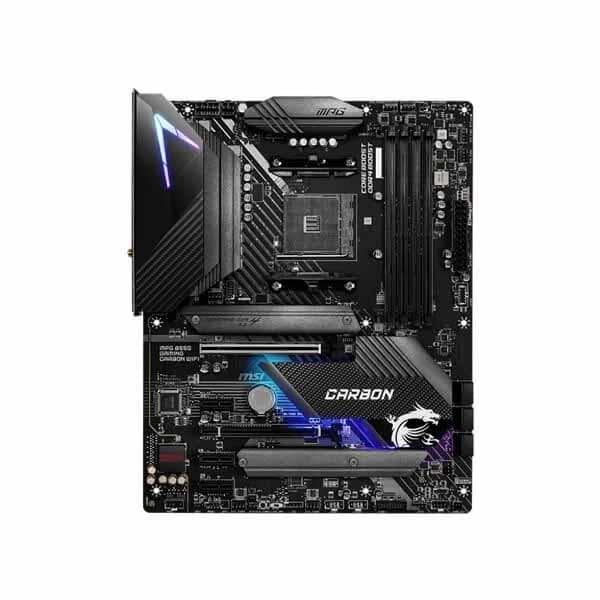

Msi Mpg B550 Gaming Carbon Wifi Motherboard

Name: Buy Msi Mpg B550 Gaming Carbon Wifi Motherboard - Computech Store
Brand: MSI
SKU: MPG-B550-gaming-carbon-wifi
Price: 20750.00 INR
Availability: OutOfStock

Brands

Brand:

MSI

MPG B550 GAMING CARBON Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
MPG B550 GAMING CARBON Supports DDR4 Memory, up to 4866(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
Enhanced Power Design: 12+2+1 Digital Power with Doubler Design, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience

... people are viewing this right now

Guaranteed Safe Checkout

₹20,750.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

MSI MPG B550 GAMING CARBON WIFI Motherboard

Important Notice :

BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

MPG B550 GAMING CARBON Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
MPG B550 GAMING CARBON Supports DDR4 Memory, up to 4866(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
Enhanced Power Design: 12+2+1 Digital Power with Doubler Design, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

MSI is the most trusted name in gaming and eSports. We’ve dedicated countless hours and committed numerous resources to support the world’s most aspiring and best gamers and use their knowledge and expertise in our products in return. MSI integrated all gamer’s aspirational functions in its gaming rigs and pushing the performance beyond limits.

MPG B550 GAMING CARBON WIFI

Advancing Ascension

Experience the new generation of the MPG B550 GAMING CARBON WIFI motherboard powered by 3rd Gen AMD 3000 series AM4 processors. Outperform your system’s capacity with Lightning Gen 4 solution, 2.5G LAN, and Wi-Fi 6 AX solution. Smart software tools DDR4 Boost and Core Boost, created to keep you one step ahead of the competition. Aluminum Cover, 7W/mK level thermal & choke pad with 2oz thickened copper help your PC remain cool, high performing and reliable.
Designed for 3rd Gen AMD Ryzen processors with Lightning Gen 4 M.2, PCIe 4.0, USB 3.2 Gen 2, onboard Wi-Fi 6 (802.11ax)
Mystic Light provides a complete function to control the RGB light all around the system, supporting both RGB and RAINBOW LED strip with 16.8 million colors / 29 effects
Larger Aluminum Cover improves VRM heat dissipation and ensures the power delivery system can sustain even high-end processors running at full load.
Front USB Type-C allows gamers to be compatible with the latest PC chassis and perfect for external drives and other mobile devices.


LIGHTNING GEN 4 SOLUTION The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.	ENHANCED THERMAL SOLUTION MPG B550 GAMING CARBON does Higher performance generates more heat. Thermal solution is very important to B550 chipset which featured latest Gen4 bandwidth. MSI motherboards featured aluminum cover, 7W/mK level thermal & choke pad, 2oz thickened copper and M.2 Shield Frozr to provide best performance for enthusiast gamers and prosumers.	USB TYPE-C READY IN BOTH FRONT CASE PANEL & REAR IO Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.


MAXIMIUM DATA TRANSFER WITH 2.5G LAN AND WI-FI 6 MPG B550 GAMING CARBON has Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.	DIGITAL POWER DESIGN Featuring 12+2+1 INTERSIL digital PWM with Doubler design with 60A Smart Power Stage and 8+4 Pin CPU power connectors to unleash the true power of your processors.	CUSTOMIZE YOUR GAMING RIG Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.

CPU	Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866+ MHz by A-XMP OC MODE 1DPC 1R max speed 4866 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slots	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 3x PCIe 3.0 x1 slots he supported specification depends on installed processor. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
Onboard Graphics	x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 2048 MB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi-GPU	Supports 2-Way AMD CrossFire™ Technology
Storage	AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices The supported specification depends on installed processor.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6 AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.1
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x RGB CORSAIR connector 1x TPM module connector 1x Clear CMOS jumper

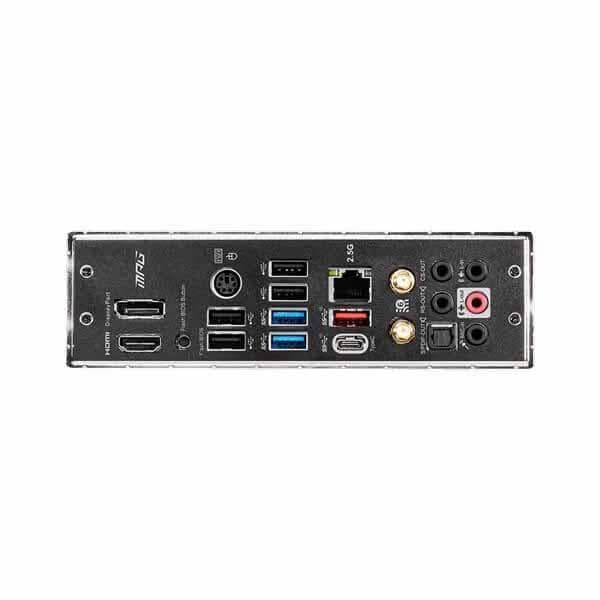

Back panel ports	DisplayPort PS/2 Combo Port USB 2.0 2.5G LAN HD Audio Connectors HDMI Flash BIOS Button USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A+C) Wi-Fi / Bluetooth Optical S/PDIF OUT
LED Features	1x EZ LED Control switch 4x EZ Debug LED
I/O Controller	NUVOTON NCT6687-R Controller Chip
Hardware Monitor	CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.

Weight	2 kg
Dimensions	31 × 3 × 25 cm
Brands	MSI
Chipset	B550
Motherboard Size	ATX
Socket	AM4
Platform	AMD
Motherboard Series	MSI MPG
EAN / UPC Code	4719072741051
RAM Type	DDR4
Warranty	3 Years
