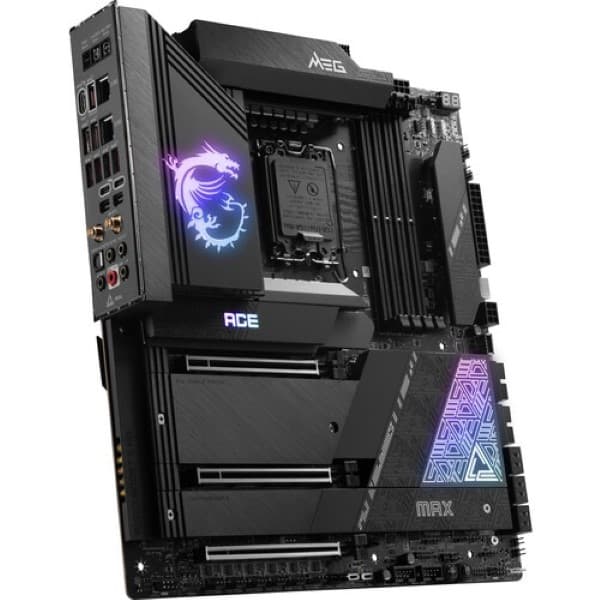

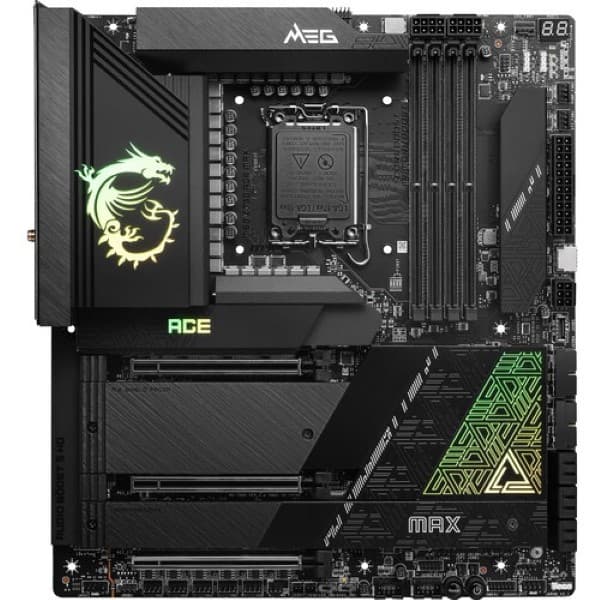

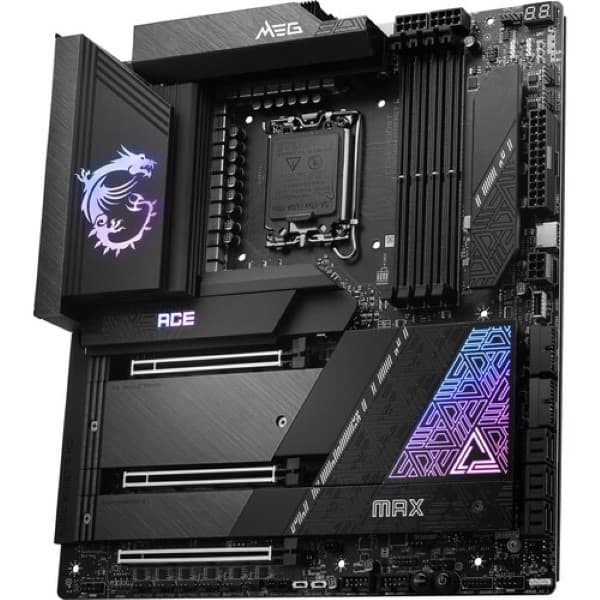

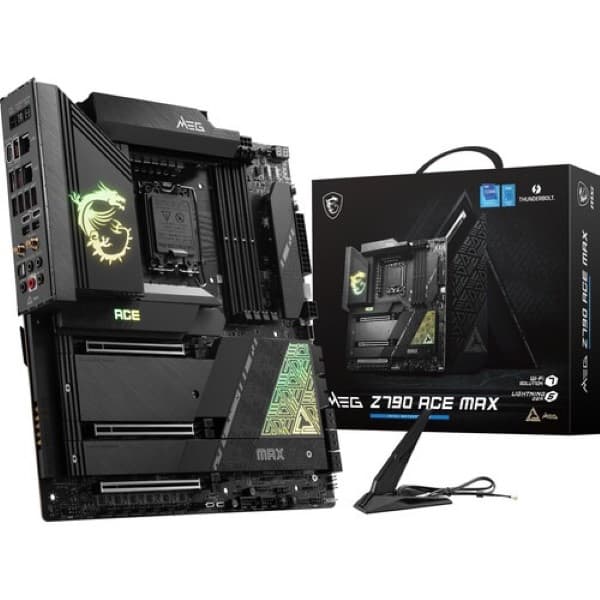

MSI MEG Z790 Ace Max LGA 1700 E-ATX Gaming Motherboard

Brands
12 sold in last 13 hours
Hurry! Over 6 people have this in their carts
  • E-ATX Form Factor
  • Z790 Chipset
  • LGA 1700 Socket
  • 4 x Dual-Channel DDR5 RAM Slots
  • 6 x SATA III, 5 x M.2 PCIe
  • PCIe 5.0 x16, PCIe 5.0 x16 (x8)
  • Wi-Fi 7 | 2.5 GbE | Bluetooth 5.4
  • USB 2.0, 3.2 Gen 1, Gen 2, Gen 2×2
  • Thunderbolt 4 | 7.1-Channel Audio Support
  • Windows 11 Support
  •  Delivery & Return

    đźšš Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  Estimated Delivery: Mar 06 – Mar 10
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

68,749.00

+

MSI MEG Z790 ACE MAX Gaming Motherboard (Supports 12th/13th/14th Gen Intel Processors, LGA 1700, DDR5, PCIe 5.0, M.2, 2.5Gbps LAN, USB 3.2 Gen2, Wi-Fi 7, Thunderbolt, E-ATX)



Features:

  • Supports Intel® Core 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T) for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining.
  • Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
  • Outstanding Cooling Solution: Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
  • Latest Wi-Fi 7 solution: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
  • * BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information



MEG Z790 ACE MAX

Enhanced Design

Providing you with enhanced performance, the MSI MEG Z790 ACE MAX utilizes several features and electrical designs to optimize your gaming experience with the 24+1+2 Dual Rail Power System across the 8 PCB layers which utilize IT-170 server-grade materials with 2 oz. thickened copper.

Cooling Performance

Stacked fin array design, aluminum covering, direct-touch cross heat pipes, double-sided M.2 Shield Frozr, aluminum backplate, enlarged PCH heat sink, and 7W/mK thermal pad all work together to ensure your system remains cool under heavy loads. You also get dedicated internal cooling headers designed for fan and liquid coolers.

Built for Performance

The GAMING PLUS’ PCIe 5.0 x16 slot is backed by proprietary Lightning Gen 4 technology, giving you up to 128 GB/s bandwidth, driving up graphical performance. Integrated Xtreme Memory Profile (XMP) overclocks your memory and ensures proper electrical throughput for greater RAM speeds.

DIY Friendly

Whether you are a seasoned or a brand-new builder, the MEG Z790 ACE MAX offers several enhancements that are useful to everyone. EZ M.2 Clip makes securing your SSDs quick, easy, and screw-free. Driver Utility Installer keeps your firmware up to date, preventing potential software issues. You also have several other conveniences such as the EZ debug LEDs, Keep Out Zone, XL Clip, and a Pre-installed I/O shield.

Software Enhancements

Various ingrained systems allow you to fully optimize your gaming experience. MSI Center is a one-stop-shop platform for most of your needs. You can customize your settings with Profile Setting, Fan Center, System Diagnosis, Hardware Monitoring, User Scenario, and True Color settings. You also have various BIOS settings that can be adjusted with EZ-Mode or Advanced Mode along with Resizable Bar, adding even more optimization options for your system.

Reliable Design

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. The advanced Surface Mount Technology (SMT) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal

Enhanced Audio

Ensure your audio is top-notch with an array of high-definition processors, audio capacitors, and jacks designed to deliver immersive audio suitable for your games and media. Isolated audio signal splits channels to prevent crosstalk for an even clearer sound. Protect your ears as you plug and unplug your headset with De-Pop Protection.

Mystic Light

Mystic Light allows you to customize your lighting colors and effects to add personality to your system thought the A-RAINBOW V2 header. Ambient Link allows you to synchronize lighting themes with compatible lighting devices outside the case such as wall-mounted lighting panels.
 Model Name  MEG Z790 ACE MAX
 Chipset   INTEL Z790
 CPU  Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6800+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 6000+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
 Onboard Graphics  1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz
 Onboard Thunderbolt  Thunderbolt chip JHL8540 2x Thunderbolt4 (USB-C) ports Q’ty Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
 Slot  3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
 Multi-GPU  AMD MULTI-GPU Support
 Storage  5x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 6x SATA 6G
 RAID  Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
 USB  4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front)
 LAN  2x Intel® 2.5Gbps LAN
 WIRELESS LAN & BLUETOOTH Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM
 Audio  Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
 Internal IO  1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 2x USB 3.2 Gen 2x2 Type C ports V-check point 1x ARGB+FAN Header (JAF_1)
 LED FEATURE  1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED

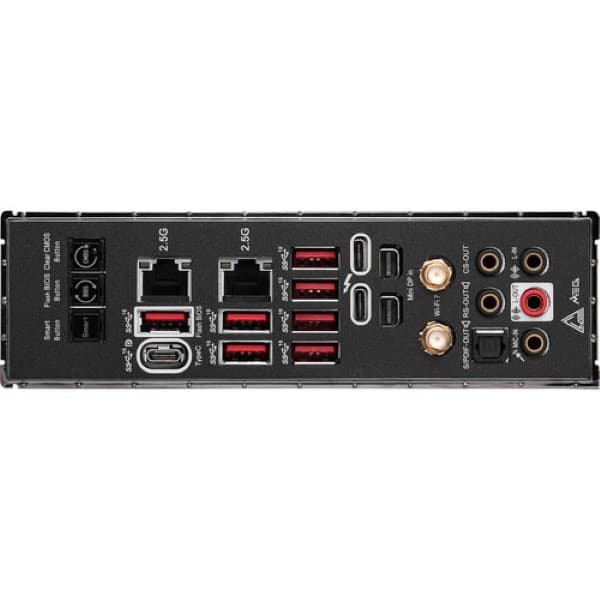

 BACK PANEL PORTS Clear CMOS Button Flash BIOS Button 2.5G LAN 2.5G LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors Smart Button USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out
 OPERATING SYSTEM  Support for Windows® 11 64-bit
 PCB Info  E-ATX 277mmx304.8mm
 Warranty  3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
