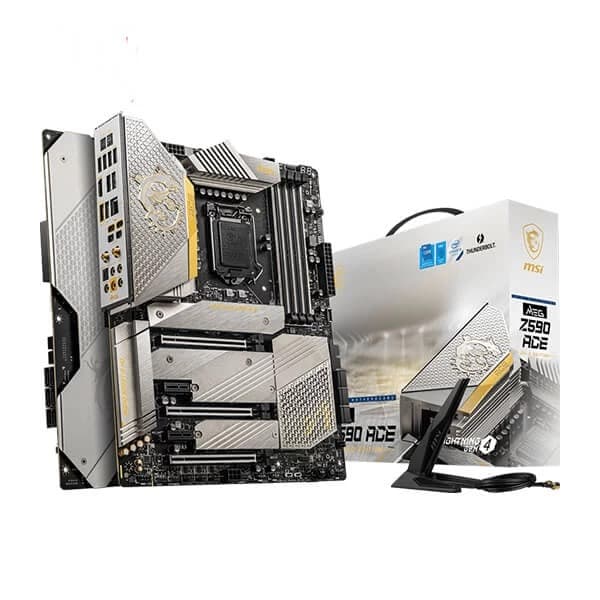

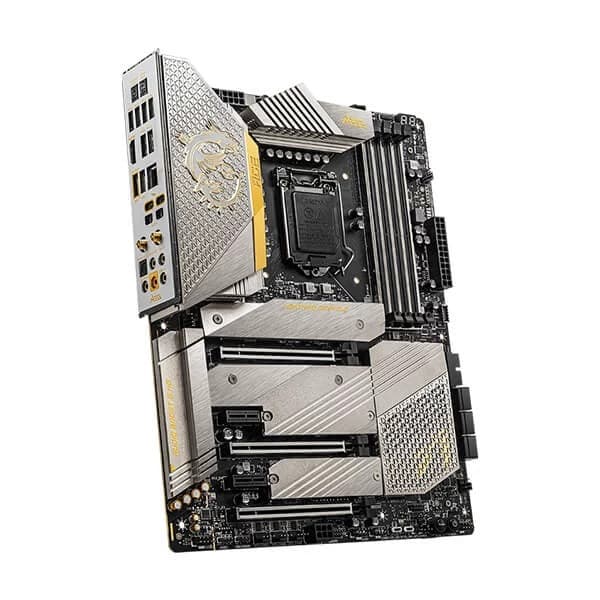

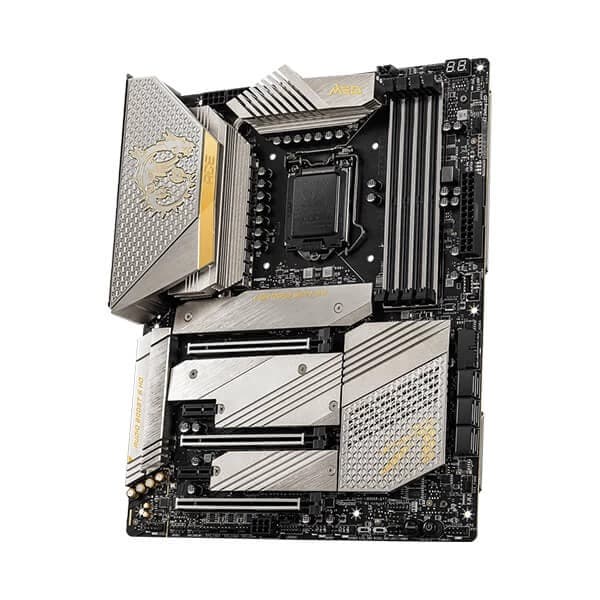

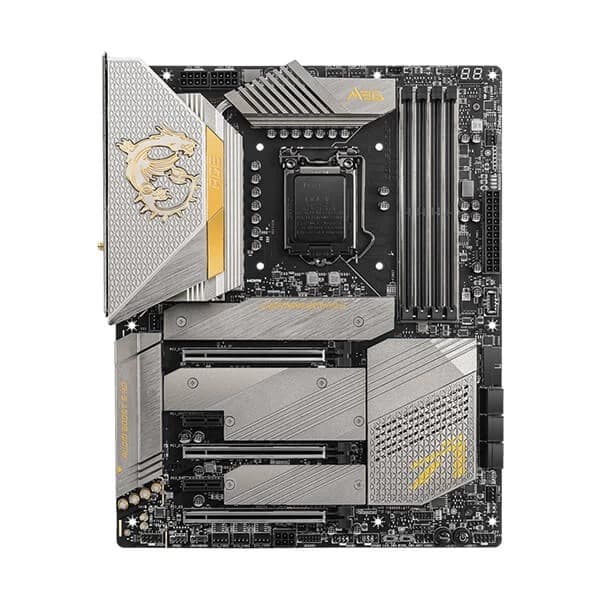

MSI MEG Z590 ACE Gold Edition Motherboard

Brands
  • Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5600(OC) MHz
  • Genuine 24K Gold: Premium aesthetics with a platinum color finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty.
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

16,198.00

Out of stock

Email when stock available

MSI MEG Z590 ACE Gold Edition Gaming Motherboard (ATX, 11th/10th Gen Intel Core, LGA 1200 Socket, SLI/CFX, DDR4, PCIe 4, M.2 Slots, USB 3.2 Gen 2, Wi-Fi 6E, Mystic Light RGB)

Feature

  • Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5600(OC) MHz
  • Genuine 24K Gold: Premium aesthetics with a platinum color finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty.
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
  • Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
  • Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
  • 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
  • Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
  • 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.

Premium Hardware Design:

With Years Of Experience, Msi Is No Stranger To Building High-Performance Motherboards. Our R&D And Engineering Teams Have Reviewed Countless Designs, Evaluated A Wide Selection Of High Quality Components, And Developed Products For Reliability Even Under Extreme Conditions.

Thermal Solution For More Cores And Higher Performance:

With More Cores’ Processors, Thermal And Power Design Is More Important To Make Sure The Temperature Keeps Lower. Msi Extended Pwm Heatsink And Enhanced Circuit Design Ensures Even High-End Cpu To Run In Full Speed With Msi Motherboards.

Fully Controllable In Bios And Software:

Msi Motherboards Let You Manage Speeds And Temperatures For All Your System And Cpu Fans. Total Fan Control Allows You Check Your Primary System Characteristics In A Simplified Graphical Interface. You Can Also Set Up To 4 Temperature Targets For Cpu And Motherboard, Which Will Adjust The Fan Speeds Automatically.

Frozr Ai Cooling:

Detecting Cpu & Gpu Temperatures And Automatically Adjusting Fan Duty Of System Fans To A Proper Value By Adopting Msi Ai Engine.

Diy 2.0 – Integrating With The System Environment:

Connect And Synchronize With Msi Coolers And Cases With Strategically Positioned Pin-Header Locations Including A Dedicated Pump-Fan Header.

Enhanced Performance:

High Performance Msi Motherboards Are Loaded With Advanced Features And The Latest Technology To Overwhelm Any Challenge At Hand No Matter Whether Youre A Gamer, Prosumer, Or Pc Enthusiast.

Lightning Gen 4 M.2:

Utilizing 11th Gen Intel Processors, Msi Z590 Motherboards Feature Latest Lightning Gen 4 M.2 Which Is The Fastest Onboard Storage Solution On The Market With Up To 64 Gb/S Transfer Speed.

Fast And Future-Ready Storage:

Msi Motherboards Support All The Latest Storage Standards, Which Allows Users To Connect Any Ultra-Fast Storage Device. Higher Efficiency Makes Your Work Easier.

Optane: Boost Your Hdd To Perform Like An Ssd:

Pc Enthusiasts Can Now Enjoy The Performance Of An Ssd On Their Hdd By Coupling It With The New Intel® Optane™ Memory Device. Intel® Optane™ Technology Provides An Unparalleled Combination Of High Throughput, Low Latency, High Quality Of Service, And High Endurance.

Easy Raid Setup With M.2 Genie:

Looking To Go All Out In Terms Of Raw Data Speed And Put Multiple Ssds In Raid 0? Setting This Up Can Prove To Be Quite The Challenge. That’S Why We Created M.2 Genie, A Brilliant Feature To Make Setting Up Raid 0 For M.2 And U.2 Much Easier And Less Time Consuming.

Connectivity:

Msi Motherboards Are Built With A Variety Of Connectors To Satisfy Gamers. Enhanced Audio, Advanced Lan Networking
Capabilities, Usb And Mystic Light Turn Any Gaming Experience Into An Immerse One.

High-Bandwidth And Low-Latency Network:

2.5gbps Lan Provides Incredible Data Transfer Speed Faster Than General Gigabit Lan. This Is A Premium Solution For Demanding Users.

Specification:
Model MEG Z590 ACE GOLD EDITION
Processor
  • Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Processor socket LGA1200
Chipset Intel® Z590 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots
  • 3x PCIe x16 slots
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 PCI_E1 & PCI_E3 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E5 slot (From Z590 chipset) Supports up to PCIe 3.0
  • 2x PCIe 3.0 x1 slots (From Z590 chipset)
Multi-GPU
  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology
Onboard Graphics 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Thunderbolt 4 Intel®JHL8540 Thunderbolt™ 4 Controller
  • 2x Thunderbolt™ 4 (USB-C) ports on the back panel
  • Support up to 40Gbps transfer rate with Thunderbolt devices
  • Support up to 20Gbps transfer rate with USB4 devices
  • Support up to 10Gbps transfer rate with USB 3.2 devices
  • Support up to 5V/3A ,15W power charging
  • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)
Storage
  • 6x SATA 6Gb/s ports (from Z590 chipset)
  • 4x M.2 slots (Key M)
  • M2_1 slot (from CPU)
  • Available only on 11th Gen Intel® CPU
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2, M2_3, M2_4 slots (from Z590 chipset)
  • M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x4
  • M2_2 & M2_3 support up to SATA 6Gb/s
  • M2_4 slot supports PCIe only.
  • Supports 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready
  • Supports Intel® Smart Response Technology for Intel Core™ processors
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot. M2_4 bandwidth will switch from x4 to x2 when PCI_E5 slot is inserted. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
  • Supports RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
USB Intel® Z590 Chipset
  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector)
  • 2x USB 2.0 Type-A ports on the back panel
Hub-GL850G
  • 4x USB 2.0 ports through internal USB connectors
Audio Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA
  • 7.1-Channel High Definition Audio Supports S/PDIF output
LAN 1x Intel® I225V 2.5Gbps LAN controller
WiFi & Bluetooth Intel® Wi-Fi 6E AX210
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz1 (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.22, FIPS, FISMA
Wi-Fi 6E 6GHz depend on country regulations support and will be ready in WIN10 21H1. Bluetooth 5.2 will be ready in WIN10 21H1.
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 1x 6-pin PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C connector
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional
  • 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Tuning Controller connector
LED Features
  • 1x EZ LED Control switch
  • 1x 2-Digit Debug Code LED
  • 4x EZ Debug LED
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin JCORSAIR LED connector
Back panel ports
  • Clear CMOS Button
  • USB 3.2 Gen1 5Gbps (Type-A)
  • USB 2.0
  • 2.5G LAN
  • Thunderbolt 4 40Gbps (Type-C)
  • Wi-Fi / Bluetooth
  • HD Audio Connectors
  • Flash BIOS Button
  • HDMI™
  • USB 3.2 Gen2 10Gbps (Type-A)
  • Mini DisplayPort Input (for
  • Thunderbolt passthrough)
  • Optical S/PDIF-Out
Dimensions
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
Mounting 9 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
