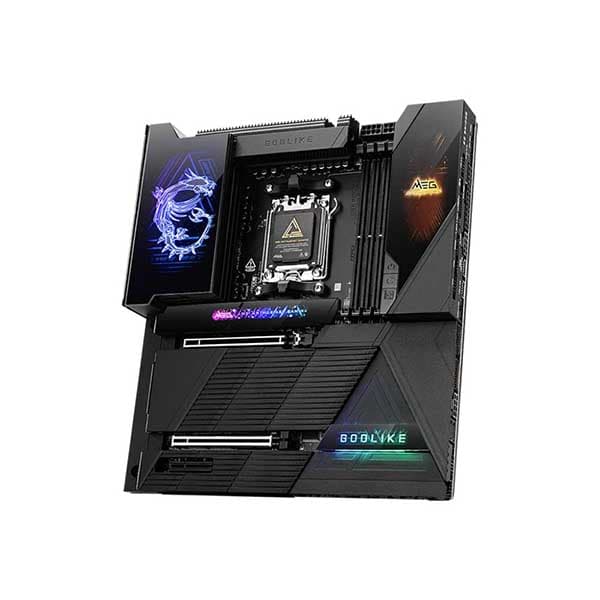

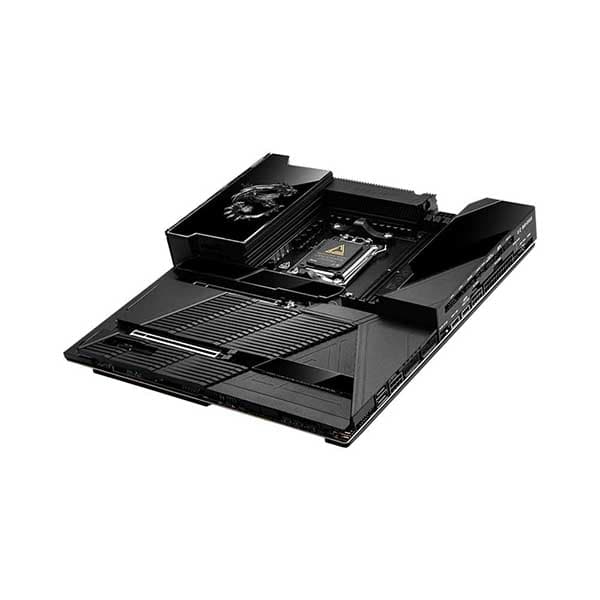

MSI MEG X870E Godlike AM5 E-Atx Motherboard

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

The MEG X870E GODLIKE motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

• Form Factor: E-ATX
• Socket Type: AM5
• Chipset: AMD X870E

Dynamic Dashboard III & EZ Link

• Dynamic Dashboard III: A built-in 3.99-inch full-color dynamic LCD panel offers real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and personalization options, significantly enhancing the overall user experience.
• Besides serving as a display panel, the Dynamic Dashboard functions as a versatile bridge, providing onboard boot, reset, EZ PCIe Release Buttons, and EZ Digi-Debug LED for easier system management and troubleshooting
• EZ Link: The GODLIKE-exclusive EZ Link design consolidates most of the case front panel, fan, and RGB headers into the EZ Bridge and EZ Control Hub. With magnetic design, it simplifies installation and creates a cleaner aesthetic.

Ultra Power+ – 24 Duet Rail Power System with 110A Smart Power Stage

With exclusive Core Boost technology and EZ OC Tuning functions, the MEG X870E GODLIKE is able to sustain heavy CPU power loads to support system-demanding game settings:

• Digital PWM IC
• 24 Duet Rail Power System with 110A SPS
• 2-Phase SOC Power
• 1-Phase MISC Power

Frozr Design

• Frozr Guard: Wavy Fin design, Direct-touch Cross Heat-pipe, 9W/mK MOSFET thermal pads, extra choke thermal pads, Double-sided M.2 Shield Frozr, and a 10-layer server-grade PCB with 2oz of thickened copper for improved thermal dissipation.
• Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
• Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

M.2 XPANDER-Z SLIDER GEN5

• The MEG X870E GODLIKE comes with the all-new M.2 XPANDER-Z SLIDER GEN5 accessory card, providing two extra Gen5 x4 128Gbps M.2 slots for more high-speed storage expansion options.
• EZ Slide Design: Make storage upgrade effortless by letting you access your M.2 SSDs from the rear I/O without opening your case.
• One Slot Design: No conflict with bulky, thick graphics cards, while ensuring improved airflow for better cooling efficiency.
• 70 mm Double-ball Bearing Fan: Stronger airflow, extended gaming sessions, and peak performance for enthusiast gamers and prosumers.
• LED Indicator: The 4 x indicator LEDs lets you know if the SSD is detected and when it’s transferring files.

Gen5 M.2 Connector

• The MEG X870E GODLIKE motherboard features MSI’s M.2 slots:
• 2 x Gen5 x4 128Gbps slot (with double-sided M.2 Shield Frozr)
• 3 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)

Fortified PCIe 5.0 x16 Slot

• The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.
• 2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release)
• 1 x PCIe 4.0/3.0 x4 slot

*Supports x16/x0/x4, x8/x8/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

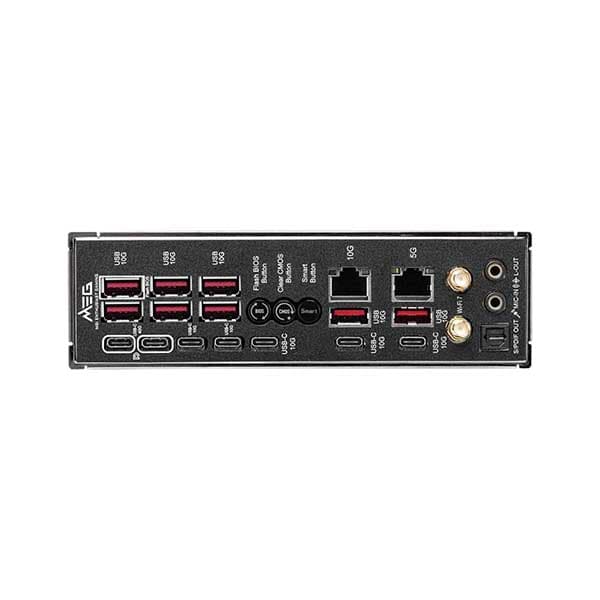

Ultra Connect

• 10G Super LAN: Premium Marvell 10Gbps LAN & Realtek 5Gbps LAN deliver an utmost network gaming experience.
• Wi-Fi 7: Features the full-speed Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
• USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K@120Hz display support*.
• HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 HD & S/PDIF output.

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
