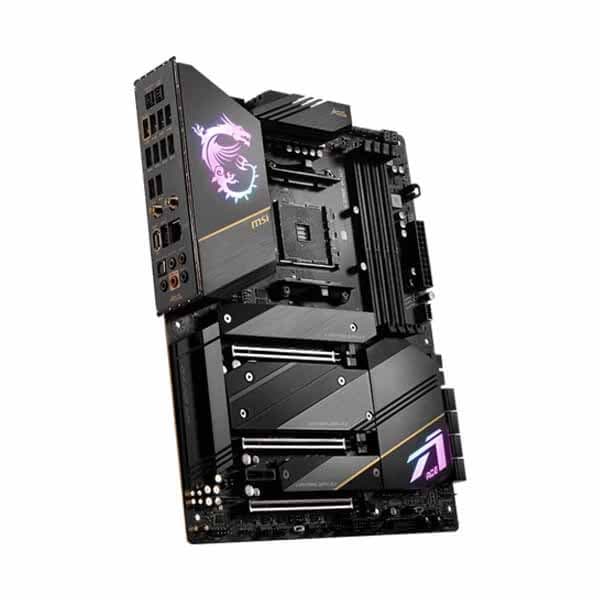

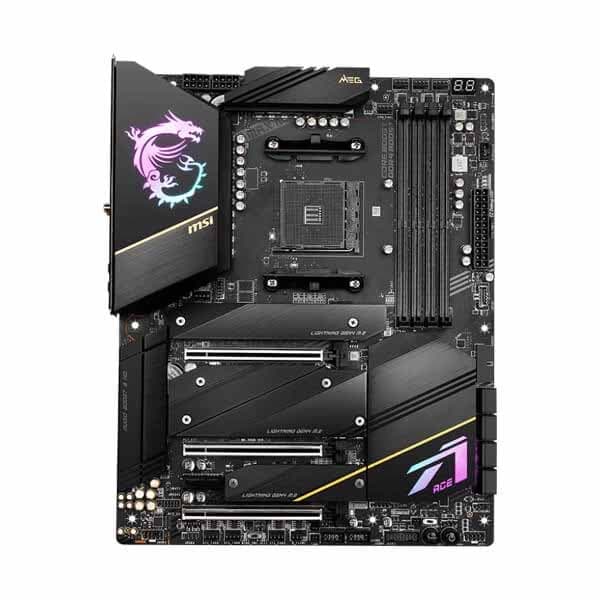

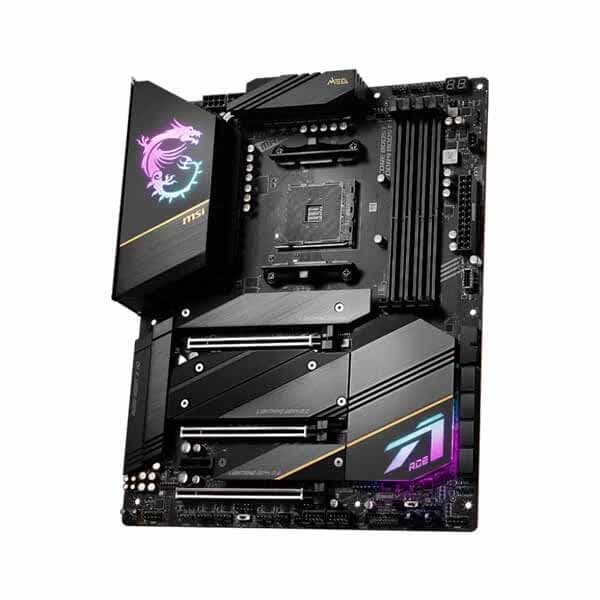

MSI MEG X570S ACE Max (Wi-Fi) Motherboard

Brands

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
Supports DDR4 Memory
Mystic Light Infinity: Customize and set up your own color scheme with MSI Mystic Light, combining exclusive mirror reflection to generate the special endless light effects, the ACE makes your system come alive and infinity.
Lightning Fast Game experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.
Dual LAN with latest Wi-Fi 6 solution: Onboard 2.5G plus Gigabit LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience.

... people are viewing this right now

Guaranteed Safe Checkout

Original price was: ₹70,000.00.Current price is: ₹39,299.00.

Out of stock

Description Specifications Additional information Reviews (0) Q & A

MSI MEG X570S ACE MAX ATX Gaming Motherboard AM4 DDR4, (7D50-001R)

Features:

Msi MEG X570S ACE Max Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
MEG X570S ACE Max Supports DDR4 Memory, Dual Channel 5300(OC) MHz+
Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E solution: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.
Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

MSI Gaming Logo

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MEG X570S ACE MAX

Ace Your Enemy

Whether it’s overclocking RAM, CPU or GPU cards, custom ARGB lighting via Mystic Light or envelope-pushing visionaries looking for a powerful, future-friendly, system base, the MEG X570S ACE MAX offers an cutting-edge hardware stage for gaming immersion at the highest settings.

Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series, 2000 G-series processors (AM4)
Direct Power Solution 16+2 Phase VRM with 90A SPS
4 x Lightning Gen4 M.2 slots with Double-sided Shield Frozr
3 x PCI-e 4.0 x16 slots (NVIDIA SLI & AMD CrossFire supported)
4 DIMMs with DDR4 Boost: Dual Channel (128GB Max. / 5300MHz OC)
2.5G LAN & Wi-Fi 6E AX210 & Bluetooth 5.2
7.1 HD Audio with Audio Boost 5 HD

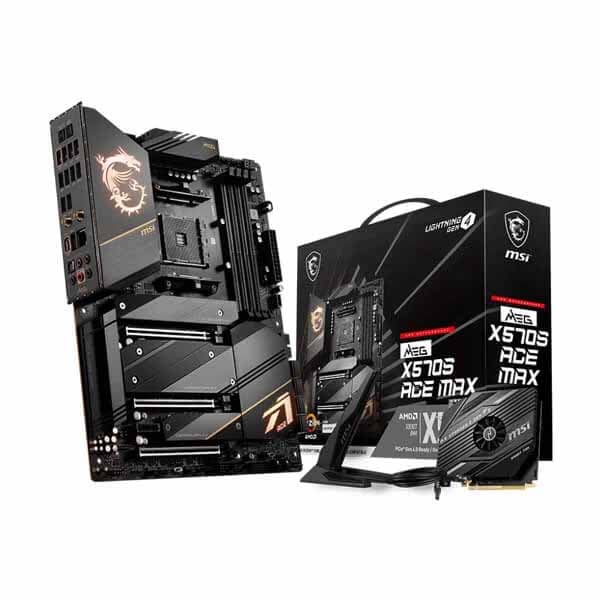

M.2 XPANDER-Z GEN 4 S PCI-e x16 card included

X570 Chipset, Direct 16+2 Phase Power System, Premium Cooling, 3 x PCI-e 4.0 x16 Slots


Supports AMD Ryzen 5000 Series Processors The MEG X570S ACE MAX motherboard supports Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series, 2000 G-series processors. Form Factor: ATX Socket Type: AMD AM4 Chipset: AMD X570	16+2 Direct Power Design with 90A SPS Unleash and sustain the maximum performance with MSI’s flagship VRM design built with a total of 16+2 direct power phases. Combining dual 8-pin power connectors and exclusive Core Boost technology, the MEG X570S ACE MAX motherboard is ready for the challenge of high-end processor overclocking.	Premium Cooling Solutions VRM Cooling: Features an aluminum cover, connecting heat pipe, choke and 7W/mK thermal pads. PCB Cooling: A server-grade printed circuit board features 2 oz. thickened copper and MOSFET Baseplate for improved heat dissipation & reliability. SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. Chipset Cooling: New & enlarged passively-cooled chipset heatsink generates zero noise.	Fortified PCI-e 4.0 x16 Slots MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 3 x PCI-e 4.0/3.0 x16 slots (with Steel Armor) 1 x PCI-e 4.0 x1 slot NVIDIA SLI & AMD CrossFire Technology supported

Cutting-Edge Performance & Incredible Connectivity


Gen4 M.2 Connectors The MPG X570S ACE MAX motherboard features MSI’s latest M.2 slots: 4 x Gen4 x4 64Gb/s slots* An additional 2 x Gen4 x4 64Gb/s slots can be added via XPANDER-Z PCI-e card (included) *M.2 specifications may vary depending on the CPU installed.	M.2 Shield Frozr Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.	4 x DDR4 Dual Channel (5300+ MHz OC) DDR 4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. A-XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.	Wi-Fi 6E & Bluetooth 5.2 Wi-Fi 6E: The latest Wi-Fi 6E solution supports 6GHz spectrum, while Bluetooth 5.2 offers data transfer speeds up to 2400Mbps. 2.5G LAN: A Realtek 8125B 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2×2: Enables ultra-fast 20Gbps data transfer rates between devices. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 HD & S/PDIF output.

Description Specifications Additional information Reviews (0) Q & A

CPU	Supports AMD Ryzen™ 5000 Series, 5000 G-Series 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors. Supports Socket AM4
Chipset	AMD X570 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC 1 Max frequency by A-XMP OC mode: For Ryzen™ 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz (support overclocking up to 5500+ MHz) 1DPC 2R Max speed up to 4266 MHz 2DPC 1R Max speed up to 4400 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen™ 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Expansion Slots	Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors 2x PCIe x16 slots (From processor) PCI_E1 & PCI_E2 support x16/ x0, X8/ X8 for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors PCI_E1 & PCI_E2 support x8/ x0 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors 1x PCIe x16 slot (From X570 chipset) PCI_E4 supports x8 1 1x PCIe x1 slot (From X570 chipset)
Multi-GPU	Supports NVIDIA® SLI® Technology Supports AMD CrossFire™ Technology
LAN	1x Realtek® RTL8125B 2.5 Gbps LAN controller
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 2, FIPS, FISMA
Audio	Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
Storage	8x SATA 6Gb/s ports (From X570 chipset) 1 4x M.2 slots (Key M) Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors Support SATA 6Gbps (For M2_1, M2_3 & M2_4) M2_1 (From processor) Supports 2280/ 22110 storage devices M2_2 (From X570 chipset) Supports 2260/ 2280 storage devices M2_3 1 (From X570 chipset) Supports 2280/ 22110 storage devices M2_4 1 (From X570 chipset) Supports 2260/ 2280 storage devices
RAID	AMD X570 Chipset Supports RAID 0, RAID 1 and RAID 10
USB	AMD X570 Chipset 1x USB 3.2 Gen 2 10Gbps Type-C internal connector 4x USB 3.2 Gen 1 5Gbps ports available through internal USB connectors 1x USB 2.0 port on the back panel Asmedia® 3241 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel USB 3.0 Hub 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel USB 2.0 Hub 7x USB 2.0 ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AMD Processor 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
Internal connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 8x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 2x USB 2.0 connectors (support additional 4 USB ports) 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Chassis Intrusion connector 2x 2-pin Thermal sensors connectors 1x Water Flow Meter connector 1x Tuning Controller connector

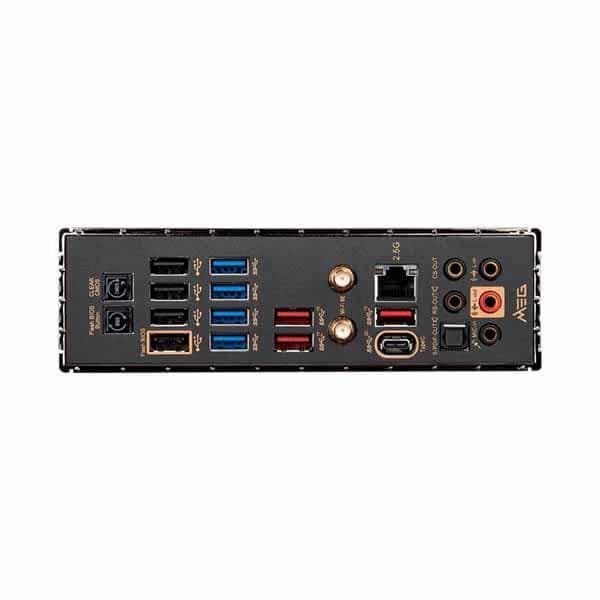

Back panel ports	Clear CMOS Button USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth 2.5G LAN HD Audio Connectors Flash BIOS Button USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out
LED Features	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR connector 1x EZ LED Control switch 1x 2-Digit Debug Code LED 4x EZ Debug LEDs
I/O Controller	NUVOTON NCT6687D Controller Chip
Hardware Monitor	CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Description Specifications Additional information Reviews (0) Q & A

Weight	2 kg
Dimensions	31 × 24 × 6 cm
Brands	MSI
Chipset	X570S
Motherboard Size	ATX
Socket	AM4
Platform	AMD
Motherboard Series	MSI MEG
EAN / UPC Code	4719072872397
RAM Type	DDR4
Warranty	3 Years
