MSI MAG B660M Mortar DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors
Brand: MSI
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
... people are viewing this right now
Original price was: ₹28,050.00.₹16,799.00Current price is: ₹16,799.00.
Out of stock
Email when stock available

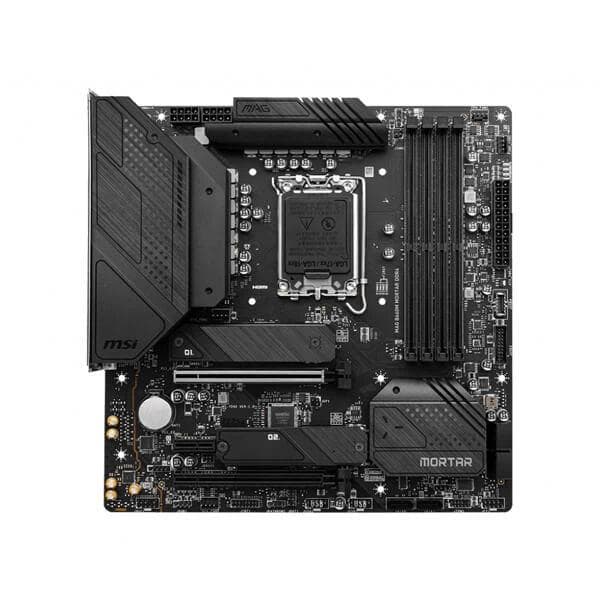

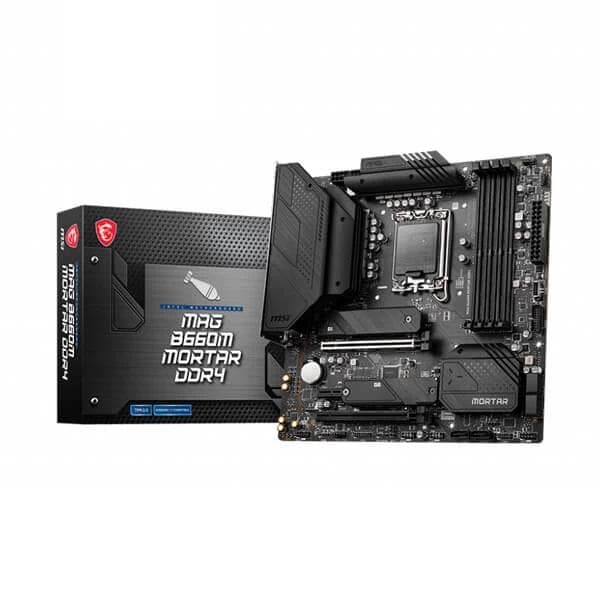

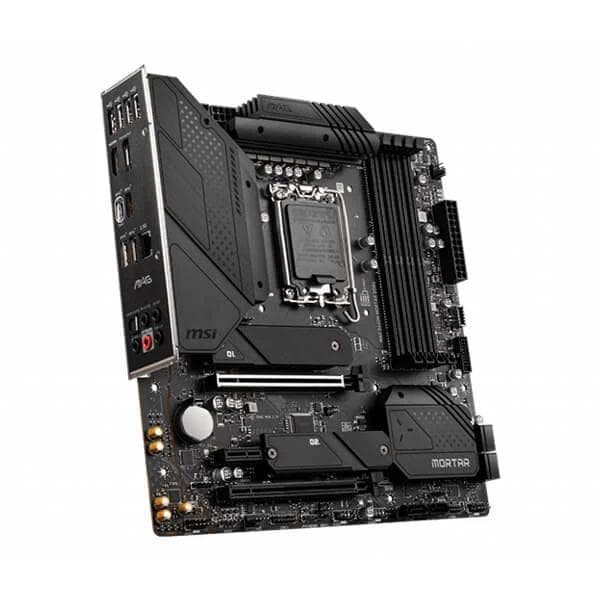

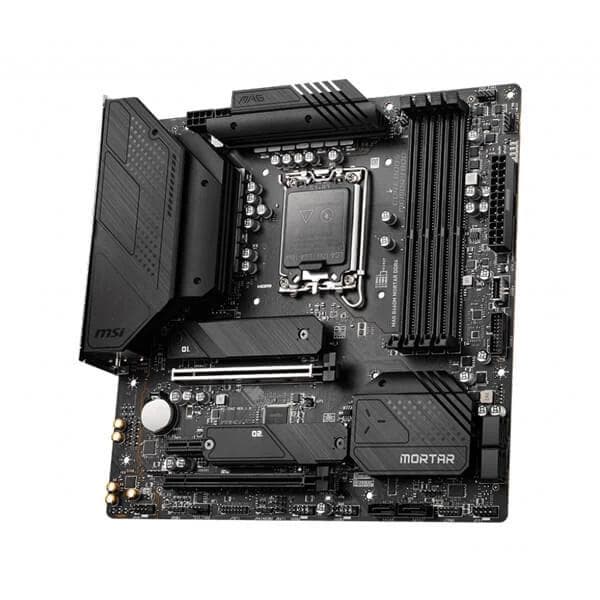

MSI MAG B660M Mortar DDR4 Intel Motherboard
Features:
- MSI B660M Mortar Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- B660M Mortar Supports DDR4 Memory, up to 4800+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MAG B660M MORTAR WIFI DDR4
Conquer the Battlefield
The MAG B660M MORTAR WIFI DDR4 is a gaming oriented micro-ATX motherboard constructed around the latest Intel B660 chipset that balances value with premium hardware.
- Supports Intel Core 12th Gen Processors (LGA 1700)
- 12 Duet Rail Power System (60A/DrMOS)
- 4 x DDR4 DIMMs, Memory Boost (4800MHz+ OC)
- 2 x Gen4 M.2 Slots with Shield Frozr
- 1 x PCI-e 4.0 x16 (Steel Armor), 1 x PCI-e 3.0 x16 Graphic Card Slots (AMD CrossFire Supported)
- 7.1 HD Audio with Audio Boost
- 2.5G LAN, Intel Wi-Fi 6 & Bluetooth 5.2
B660 Chipset, 12 Duet Rail Power System, Smart Cooling, DDR4 Memory Boost
|
|
|
|
|
|---|---|---|---|
Supports Intel Core 12th Gen ProcessorsThe MAG B660M MORTAR WIFI DDR4 motherboard supports 12th Gen Intel Core processors.
Intel B660 chipset motherboards support memory overclocking but not CPU overclocking. |
12+1+1 Duet Rail Power SystemWith its dual 8 pin power connectors and exclusive Core Boost Technology (60A, DrMOS), the MAG B660M MORTAR WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings: 1. Digital PWM IC 2. 1-Phase AUX Power 3. 1-Phase GT Power 4. 12 Duet Rail CPU Power System |
Integrated Cooling FeaturesVRM Cooling: Features an extended heatsink and 7W/mK thermal pads. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. |
4 x DDR4 Dual Channel (4800+ MHz Overclocked*)Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability. *1DPC 1R Max. overclocking frequency 4800+ MHz. |
PCI-e 4.0 x16 Slot, Cutting-Edge Storage Performance, Wi-Fi 6 Connectivity
|
|
|
|
|
|---|---|---|---|
Fortified PCI-e 4.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:
|
Gen4 M.2 ConnectorsThe MAG B660M MORTAR WIFI DDR4 motherboard features MSI’s latest M.2 slots (Intel Optane supported):
*M.2 specifications may vary depending on the CPU installed. |
M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. |
Wi-Fi 6 & Bluetooth 5.22.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output. Wi-Fi 6: Features an Intel Wi-Fi 6 module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. |
| Processor | Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1 Processor socket LGA1700 |
| Chipset | Intel® B660 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot |
| Multi-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| Onboard Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) 1 Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1 SATA_A & SATA_B do not support RAID function. |
| USB | Intel® B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Audio | Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Realtek® 8125BG 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth® | Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
| Internal connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| LED Feature | 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors |
| Back panel ports | USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
| Dimensions | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
